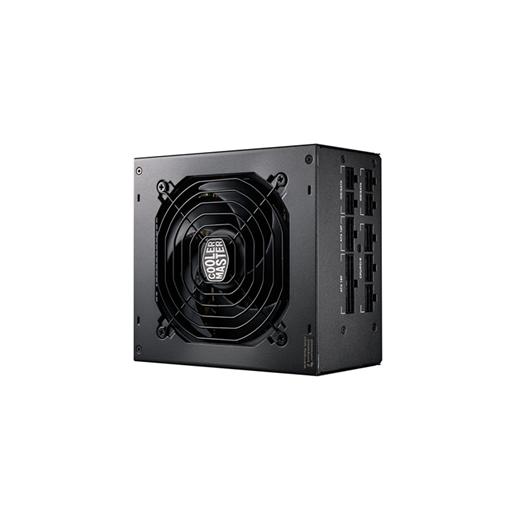

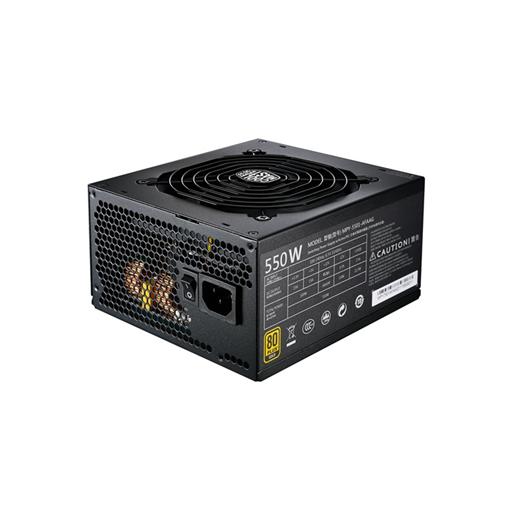

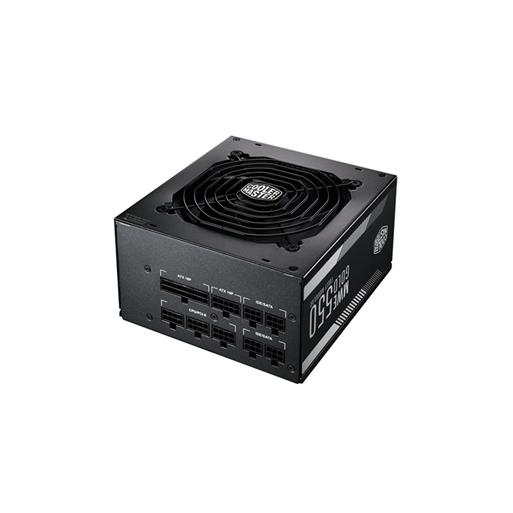

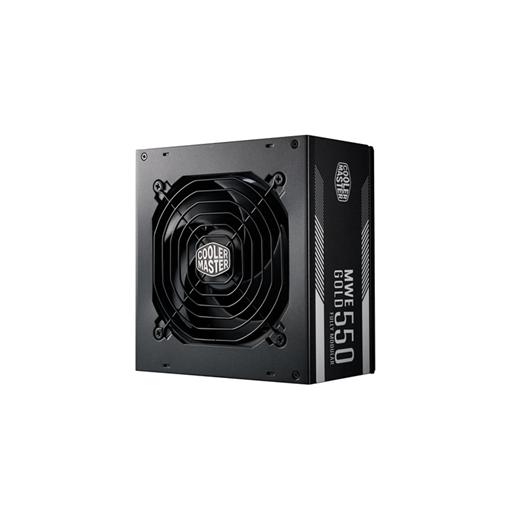

CoolerMaster MPY-5501-AFAAG-WO MWE Gold 550 Series 550W 80 PLUS Gold Modular ATX Power Supply

Description

n
n
nThe MWE Gold offers a highly efficient, affordable power solution with fully modular cabling. Enjoy a consistent 90% efficiency with an 80 PLUS Gold certification. Cooler Master’s design techniques ensure improved efficiency while maintaining low temperatures and quiet operation. The high quality, heat resistant components maintain gold level performance even at increased temperatures up to 45°C. A near quiet Silencio fan with an exclusive LDB bearing reduces noise and lasts longer than standard fan bearings. Modular cables improve airflow by reducing cable bulk. Be bold, power with gold.
n
nFEATURES
n
nFull Modular Flat Cables: Full modular flat cables are easy to install, reduce clutter, and maximize airflow.
n
n80 PLUS Gold Certified: The 80 PLUS Gold certification guarantees a minimum typical efficiency of 90%.
n
nSilent and Durable LDB Fan Bearing: Silencio technology combines sealed LDB bearings with quiet fan blades, delivering a long lifetime of quiet cooling.
n
nProven Thermal Resistance: Engineered to operate at full performance in temperatures up to 45°C, providing reliability in even the hottest environments.
n
nHigh Efficiency and Stable Output: The MWE Gold’s full-bridge design coupled with LLC, Synchronous, and DC to DC topology technologies offers reliable and stable voltage outputs
n
n
n

Specifications:

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

Brand	Cooler Master
Model	MPY-5501-AFAAG
Series	MWE Gold
Wattage	550W
80 PLUS Certification	Gold
Modularity	Full
PSU Form Factor	ATX

n

n

Power Specifications

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

Wattage	550W
Energy-Efficiency	80 PLUS Gold
Max Efficiency	90%
Input Voltage	100 – 240V
Input Current	6.3A
Input Frequency Range	50 – 60Hz

n

n

Cooling and Protection

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

Fan	120mm
Bearing Type	Loop Dynamic
Protection	OPP, OVP, SCP, UVP, OTP, OCP

n

n

Cables and Connectors

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

ATX 24-Pin (20+4)	No. of Cables: 1 nTotal Connectors: 1
EPS 12V 8-Pin (4+4)	No. of Cables: 1 nTotal Connectors: 1
PCI-E 8-Pin (6+2)	No. of Cables: 1 nTotal Connectors: 2
PCI-E 6-Pin	No. of Cables: 0 nTotal Connectors: 0
SATA	No. of Cables: 2 nTotal Connectors: 8
Peripheral 4-Pin	No. of Cables: 1 nTotal Connectors: 3

n

n

Physical Specifications

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

Form Factor	ATX
Dimensions n(L x W x H)	160 x 150 x 86mm
Weight	2.16Kg

n

n

Unique Features

n

n

n

n

n

n

n

n

Features

Full-Bridge Design + LLC + Synchronous + DC-to-DC Topology

n

n

Warranty and Return Information

n

n

n

n

n

n

n

n

n

n

n

n

Warranty Period	5 Years
Return Policy	Standard
