Description
ModelP510-KGNN65-S00
THE SABER’S EDGE

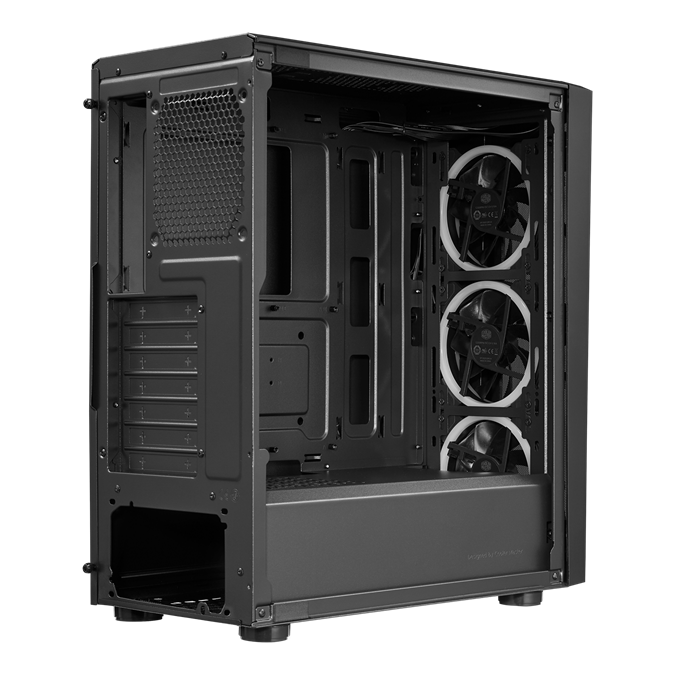

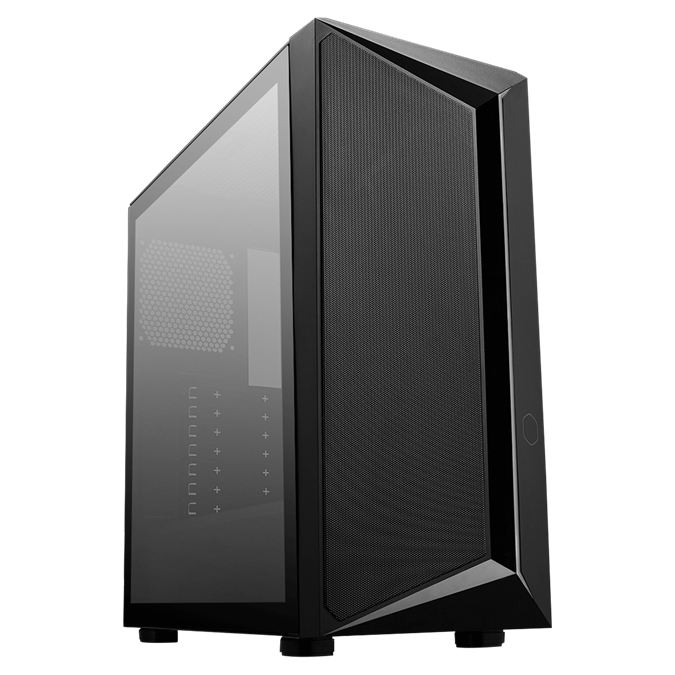

With a construction that provides generous airflow and a stream of light, the CMP 510 boasts a glowing ARGB edge to adorn the front panel. Mesh makes up a substantial portion of its structure to provide optimum performance potential.
Liquid-cooling support and the capability to house a total of 6 fans ensures the CMP 510 is always ready for thermal upgrades. Graphics card clearance spans 350mm to support the latest, largest cards.
ARGB STRIP

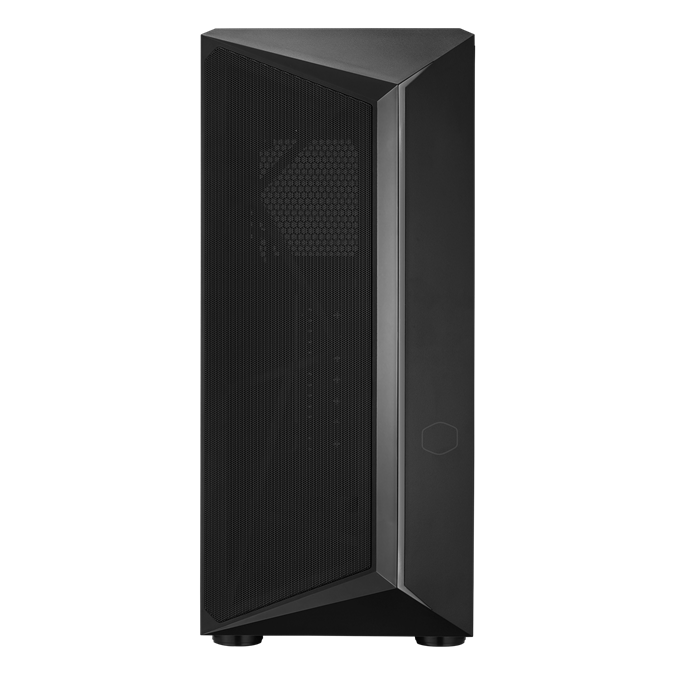

A glowing ARGB edge is cut into the clean geometry of the front panel design.
VERSATILE COOLING OPTIONS
Support for up to six fans and front, top, and rear radiator support ensure that performance is not compromised.
LARGE FILTERED INTAKES
The front panel is constructed with a substantially large, unrestricted intake grill to provide superb airflow to the system.
| SPECIFICATIONS | |
| Brand | Cooler Master |
| Series | CP Series |
| Model | CP510 (P510-KGNN65-S00) |
| Case Specifications | |
| Colour | Black |
| Form Factor | Mid-Tower |
| Materials | Steel, Plastic, Tempered Glass |
| Side Panels | Steel, Tempered Glass |
| Dust Filters | Top, Bottom |
| Motherboard Support | ATX, Micro-ATX, Mini-ITX |
| I/O Panel | 1x USB 3.2 Gen 1 5Gbps Type-A |
| 1x USB 2.0 Type-A | |
| 1x 3.5 mm Combination Audio Jack (Headphone and Microphone) | |
| 1x ARGB Control Button | |
| PCI Slots & Drive Bays | |
| PCI Slots | 7 |
| Internal Drive Bays | 2x 3.5″ HDD Bays (Combo 2.5″ & 3.5″) |
| 2x 2.5″ HDD Bay | |
| Fans | |
| Fans Included | 3x 120 mm ARGB Fans (Front) |
| Fan Mounts | |
| Front | 3x 120 mm (stock), 2x 140mm |
| Top | 2x 120 mm, 2x 140 mm |
| Rear | 1x 120 mm |
| Radiator Mounts | |
| Front | 120 mm, 140 mm, 240 mm, 280 mm |
| Top | 120 mm, 240mm |
| Rear | 120 mm |
| Clearances | |
| Radiator Clearance (Top Mount) | 35 mm Max Motherboard Component Height |
| GPU Clearance | Up to 350 mm (No Front Radiator Mount) |
| CPU Clearance | Up to 161 mm |
| PSU Clearance | Up to 160 mm |
| PSU Support | Bottom Mount, ATX |
| Cable Routing | 18.5 mm |
| Dimension | Including Protrusions: 445 x 463 x 204 mm (D x H x W) |
| Excluding Protrusions: 436 x 448 x 204 mm (D x H x W) | |
| Box Contents | 1x Cooler Master CMP510 P510-KGNN65-S00 |
| 1x Cooler Master MWE650 V2 650W Bronze-Rated Power Supply (Pre-Installed) | |
| 3x 120mm ARGB Cooler Master Fans (Pre-Installed) | |
| 1x Cooler Master ARGB Controller (Pre-Installed) | |
| 1x Cooler Master ARGB Light Strip (Pre-Installed) | |
| Warranty Information | |
| Warranty | 2 Year Warranty |
