Description
ModelRR-X117-18FP-R1

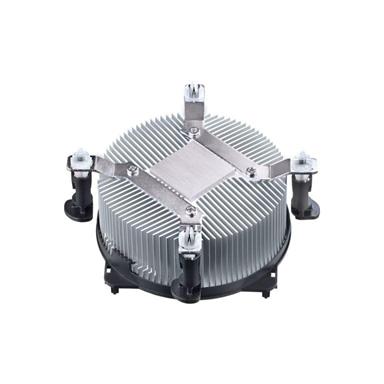

CoolerMaster X Dream I117. Suitable for: Processor, Type: Cooler, Fan diameter: 9.5 cm. Product colour: Aluminium,Violet, Material: Aluminium. Power consumption (typical): 2.16 W, Voltage: 12 V, Rated current: 0.18 A. Width: 112.2 mm, Depth: 112.2 mm, Height: 60.4 mm. Product life: 40000 h
X Dream i117 is a low profile aluminum extrusion fin specially designed for Intel platform with only 60mm height. The cross shaped design can centralize airflow for heat dissipation providing excellent heat dissipation. The circular fan operates silently with only 19dBA suitable for quiet working environment.
– Low profile aluminum extrusion fin with only 60mm height
– Universal mounting for Intel® socket LGA 1156 / 1155 / 775
– Compatible with Intel® lastest sandy bridge platform – socket 1155
– Cross shaped design centralizes airflow for heat dissipation
– Push-pin design for easy installation
– Silent operation at 19dBA only
| Product Number | RR-X117-18FP-R1 |
| CPU Socket | LGA1200, LGA1156, LGA1155, LGA1151, LGA1150, LGA775 |
| CPU Support | Core™ i7, Core™ i5, Core™ i3, Pentium, Celeron |
| Dimensions (L x W x H) | 112.2 x 112.2 x 60.4 mm |
| Weight | 370g |
| Heat Sink Material | Aluminum |
| Fan Dimensions (L x W x H) | 95 x 95 x 20 mm |
| Fan Speed | 1800 RPM ± 10% |
| Fan Airflow | 36.5 CFM ±10% |
| Fan Air Pressure | 1.55 mmH2O ± 10% |
| Fan Bearing Type | Rifle Bearing |
| Fan Life Expectancy | 40,000 Hours |
| Fan Noise Level | 19 dBA (Min) |
| Connector | 3-Pin |
| Rated Voltage | 12 VDC |
| Fan Rated Current | 0.18A |
| Fan Power Consumption | 2.16W |
| Warranty | 2 years |
| Series | X Dream |
| Cooler Type | Air Cooler |
