Description

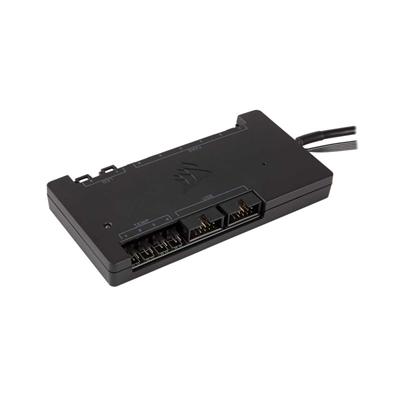

Corsair Commander PRO Digital Fan and RGB Lighting Controller

CL-9011110

The CORSAIR iCUE Commander PRO is both a fan controller and RGB controller in one, turning your PC’s case into a smart case. Use CORSAIR iCUE software to power stunning RGB lighting customization, precise fan speed control and accurate temperature monitoring, all from a single device.

Features

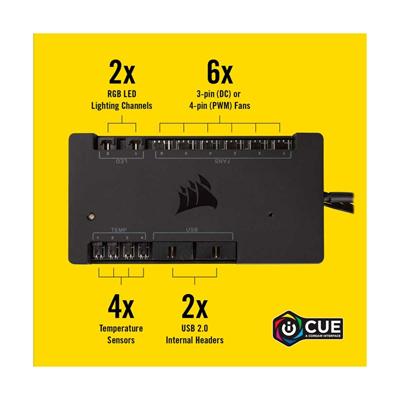

• • 6 x 4-pin Fan Ports with Voltage and PWM Control

• • Dual Channel Lighting

• • Two USB 2.0 Internal Headers

• • Four Thermistor Inputs

• • CORSAIR Link Software Support

• • Low Profile Design

Supports up to 6 Fans, 4 Temp. Sensors and 8 RGB Strips- please refer to list below for what is included in the package.

Package Contents

• • 1 x Commander PRO

• • 2 x RGB LED hub cables

• • 4 x Thermal sensors

• • 4 x Fan extension cables

• • 2 x Mounting tape

• • 1 x Installation guide

The compact heart of your CORSAIR LINK system

The CORSAIR Commander PRO grants superior and accurate hardware control with a compact, all-in-one device. Fully compatible with CORSAIR LINK devices, it supports up to six fan connectors, four temperature inputs, two RGB LED channels and multiple USB devices through two internal USB 2.0 headers.

Absolute command of your system

Accurately monitor how your system reacts when you push it to the limits. Manage your fans without pressing knobs or switches through the intuitive CORSAIR LINK software.

Six 4-pin fan ports with voltage and PWM control

Control 3-pin and 4-pin fans with ease from a complete stop to max speed.

CORSAIR LINK software support

Manage and control the devices connected to the Commander PRO through our intuitive CORSAIR LINK software.

USB 2.0 internal headers

Connect your CORSAIR LINK devices while only occupying one USB 2.0 header on your motherboard.

Four thermistor inputs

Monitor temperature in different locations throughout your system.

Dual channel lighting

Conduct a symphony of RGB lighting with individually addressable RGB LED strips (sold separately) and unleash the full RGB potential of the HD RGB and SP RGB fans (sold separately).

Low profile design

Slim form factor allows installation nearly anywhere in your case.

A Symphony of Color

Synchronize your RGB lighting effects with HD RGB fans, SP RGB fans and individually addressable RGB LED strips to light up your build.



SPECIFICATIONS
Brand	Corsair
Model	CL-9011110
Technical Specifications
Power Input	Logic: 2.97V to 3.63V, 4.5V to 5.5V
	Fan: 11.4V to 12.6V
	RGB LED: 4.5V to 5.5V
USB Cable Length	440 mm
SATA Power Cable Length	465 mm
Thermal Sensor Cable Length	610 mm
Fan Extension Cable Length	300 mm
Compatibility	Windows 10 / 8 / 7
	Requires a motherboard with an internal USB 2.0 header
	Requires Corsair Link software version 4.7 or higher
Hub Dimensions (LxWxH)	133 x 69 x 15.5 mm
RGB LED Channels	Two 3-pin connector
Maximum RGB LED Strip Per Channel	4
Maximum RGB Fan Per Channel	6 through 1 RGB LED hub
Package Contents	1x Commander Pro
	2x RGB LED Hub Cables
	4x Thermal Sensors
	4x Fan Extension Cables
	2x Mounting tape
	1x Installation Guide
Features	Two USB 2.0 Internal Headers
	Low Profile Design
	Dual Channel Lighting
	Four Thermistor Inputs
	Corsair Link Software Supported
Warranty Information
Warranty	Manufacturer’s Warranty
