Description
HX850 – Corsair Power Supply – Fully Modular ATX PSU
n
Part numberCP-9020138
n
n
nCORSAIR HX 850W POWER SUPPLY
n
nThis HX Series power supply from Corsair has a total power output of 850W, other advantages to the HX850 are the fully modular cable setup which gives you extremely tight voltage control virtually silent operation. The 80PLUS Platinum efficiency rating and Zero RPM Fan Mode mean that at low to medium loads, the fan doesn’t spin at all. And when you do push the HXi hard, the thermally controlled fan spins only as fast as it needs to. Even when the fan isn’t running the HX850 has specially selected components to reduce electronic noise for a near silent PSU.
n
n
nCORSAIR HX 850W POWER SUPPLY
n
nThis HX Series power supply from Corsair has a total power output of 850W, other advantages to the HX850 are the fully modular cable setup which gives you extremely tight voltage control virtually silent operation. The 80PLUS Platinum efficiency rating and Zero RPM Fan Mode mean that at low to medium loads, the fan doesn’t spin at all. And when you do push the HXi hard, the thermally controlled fan spins only as fast as it needs to. Even when the fan isn’t running the HX850 has specially selected components to reduce electronic noise for a near silent PSU.
n
n
n
n
Fully Modular Connectivity
n
n
n

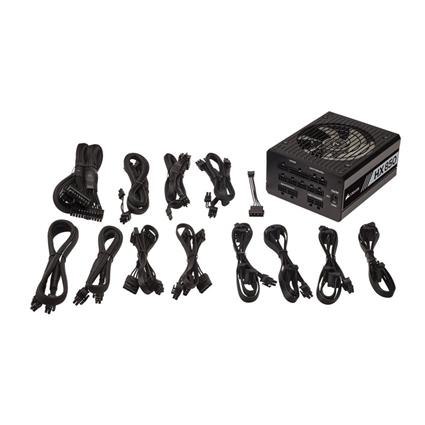

nHX FULLY MODULAR CABLE DESIGN
n
nThe easy to install, fully modular setup on the Corsair HX850 allows you to combine the low-profile cables provided for a great-looking build. You can toggle the rail modes using the switch on the PSU, In the SINGLE position, the full output capability of the power supply’s +12V rail is available to any and all connector, while on MULTIPLE each connector has Over-Current Protection so no more than 40A of current can be delivered to each cable.
n
n
nHX FULLY MODULAR CABLE DESIGN
n
nThe easy to install, fully modular setup on the Corsair HX850 allows you to combine the low-profile cables provided for a great-looking build. You can toggle the rail modes using the switch on the PSU, In the SINGLE position, the full output capability of the power supply’s +12V rail is available to any and all connector, while on MULTIPLE each connector has Over-Current Protection so no more than 40A of current can be delivered to each cable.
n
n
n
n
HX850 Efficiency & Noise Graphs
n
n
HX850 EFFICIENCY
n
HX850 FAN NOISE
n
n
n
Corsair HX850 Key Features
n
n
n
80 PLUS PLATINUM CERTIFIED
n
Platinum certification ensures high efficiency for less excess heat & lower operating costs.
n
n
JAPANESE 105°C CAPACITORS
n
Premium internal components ensure solid power delivery and long term reliability.
n
ZERO RPM FAN MODE
n
Fan doesn’t turn on until it’s needed, so you’ll enjoy virtually silent operation at low and medium loads.
n
n
TEN YEAR WARRANTY
n
Your guarantee of reliable operation that will last across several system builds.
n
n
n
| Specifications | |
|---|---|
| Size | ATX |
| Edition | HX850 |
| Wattage | 850 W |
| 80 PLUS Certification | 80 PLUS Platinum |
| Max. Efficiency (at 230Vac) | 92 % |
| Cooling | Fan |
| Fans | 1 x 135mm |
| Internal +12V Rails | Single/Multi Rail |
| Rail 1 +12V | 70.8 A |
| Rail 2 +12V | N/A |
| Rail 3 +12V | N/A |
| Rail 4 +12V | N/A |
| Rail 5 +12V | N/A |
| Rail 6 +12V | N/A |
| Max. Combined Output +12V | 70.8 A |
| Modular | Yes |
| Modularity | Full Modular |
| SLI/CrossFire | Yes |
| EPS 12V | Yes |
| Motherboard Connector | 20+4-pin |
| Connectors |
n
n n n n n n |
| Dimensions | 150 x 86 x 180 mm (WxHxD) |
| Package Type | Retail |
