Description
80 PLUS GOLD Efficiency and extremely tight voltage regulation, now with a new look.
CORSAIR RMx White Series power supplies give you extremely tight voltage control, quiet operation, 80 PLUS Gold-certified efficiency and all new white casing and fully modular cabling.
Built with all Japanese 105°C capacitors, they’re a great choice for high-performance PCs where reliability is essential. 80 PLUS Gold efficiency reduces operating cost and excess heat, while Zero RPM fan mode ensures virtual silence at low and medium loads. With a new clean white exterior and white fully modular individually sleeved cables, it’s now easy to match your system’s style and use only the cables you need with clean, great-looking results.
We’re so confident in the RMx family, we give it a 10 year warranty. Plug it in, turn it on, and game on.
80 PLUS Gold certified
100% Japanese 105°C capacitors
Zero RPM Fan Mode
Ten year warranty

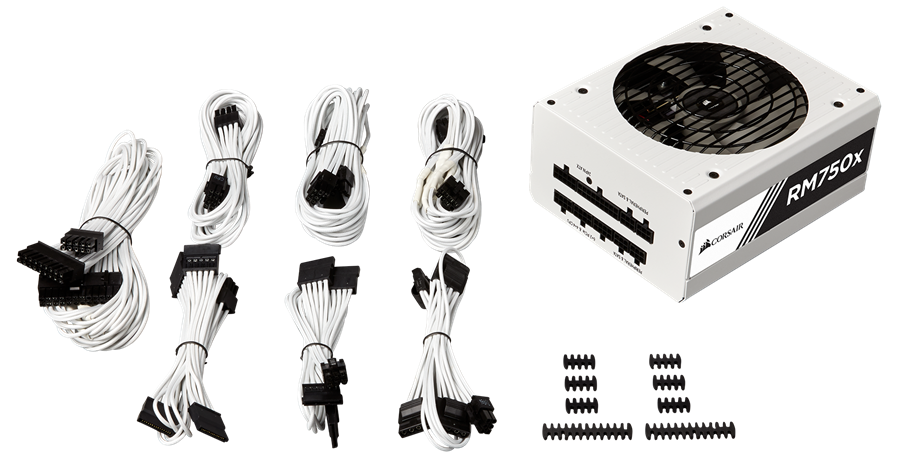

Fully modular cable set
Installation is faster, since you can mount the power supply in the case first, and then attach only the cables you need.
Contents and Specifications
-
- RMx Series High-Performance ATX Power Supply
-
- AC power cord
-
- DC Modular cable set
-
- DC Modular cable storage bag
-
- Cable ties
-
- Corsair case badge
-
- User Manual
-
- 6th generation Intel Core processor Ready (Intel Skylake and Z170 motherboards)
-
- ATX12V v2.4 and EPS 2.92 standards and is backward compatible with ATX12V 2.2, 2.31 and ATX12V 2.01 systems
-
- 80 PLUS Gold efficiency, delivering 90% energy efficiency at real world load conditions.
-
- ZeroRPM mode for fanless operation at low loads and outstanding noise reduction.
-

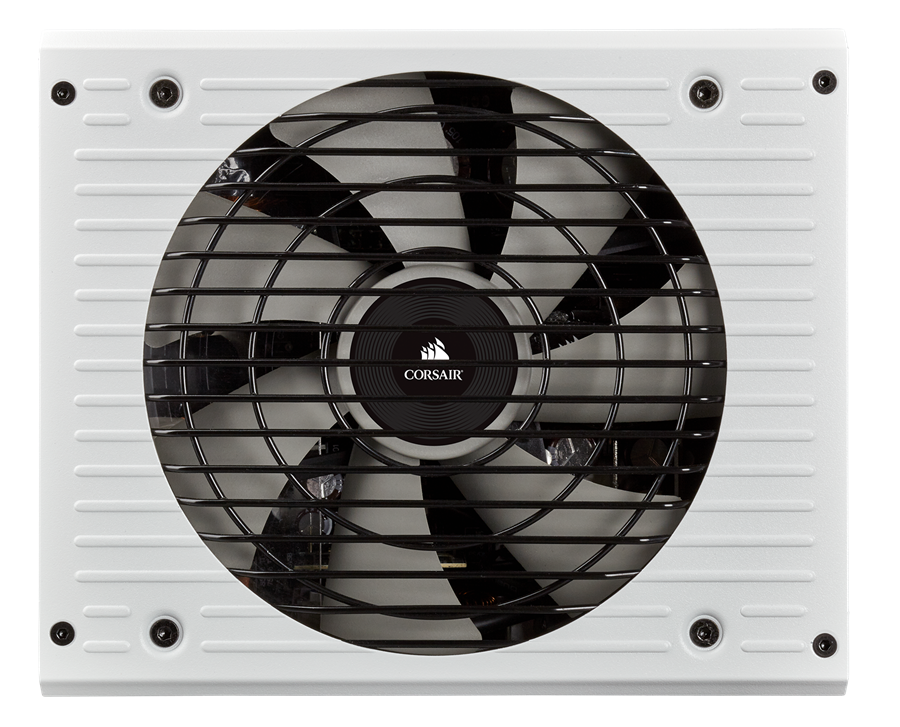

- 135mm thermally controlled fan spins up as needed.
-
- Fully modular cables for easy installation, less clutter, and helps maximize airflow through your computer’s chassis.
-
- Engineered to meet maximum power output at a server-grade 50°C temperature rating.
-
- Over-voltage protection, under-voltage protection, short circuit protection, over power protection, and over temperature protection provide maximum safety to your critical system components.
-
- Safety and Agency Approvals: FCC, ICES, CE, UL / CUL, CSA, C-Tick/RCM, TUV, CB, CU, KC Mark, RoHS, WEEE, RoHS (China), REACH
Product Specification
| Device Type | Power supply – internal |
| Specification Compliance | ATX12V 2.4/ EPS12V 2.92 |
| Colour | White |
| Localisation | Europe |
| Input Voltage | AC 100-240 V |
| Frequency Required | 47 – 63 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 7 x 4 PIN internal power ¦ 8 x 15 pin Serial ATA power ¦ 1 x 4 PIN mini-power connector ¦ 4 x 8 pin PCI Express power with detachable 2 pin section |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 750 Watt |
| Output Current | +3.3V – 25 A ¦ +5V – 25 A ¦ +12V – 62.5 A ¦ -12V – 0.8 A ¦ +5VSB – 3 A |
| Efficiency | 90% |
| 80 PLUS Certification | 80 PLUS Gold |
| Included Accessories | Cable ties |
| Cables Included | Power cable kit |
| MTBF | 100,000 hours |
| Cooling System | 135mm fan |
| Features | Over voltage protection, overpower protection, undervoltage protection, short-circuit protection, temperature controlled fan, Zero RPM fan mode, rifle bearing cooling fan |
| Compliant Standards | CSA, UL, TUV, C-Tick, BSMI, cUL, CB, CCC, FCC, RoHS, WEEE, ICES, REACH, KC, China RoHS, RCM, CU-TR |
| Service & Support | Limited warranty – 10 years |
| Width | 15 cm |
| Depth | 18 cm |
| Height | 8.6 cm |
| Weight | 1.94 kg |
