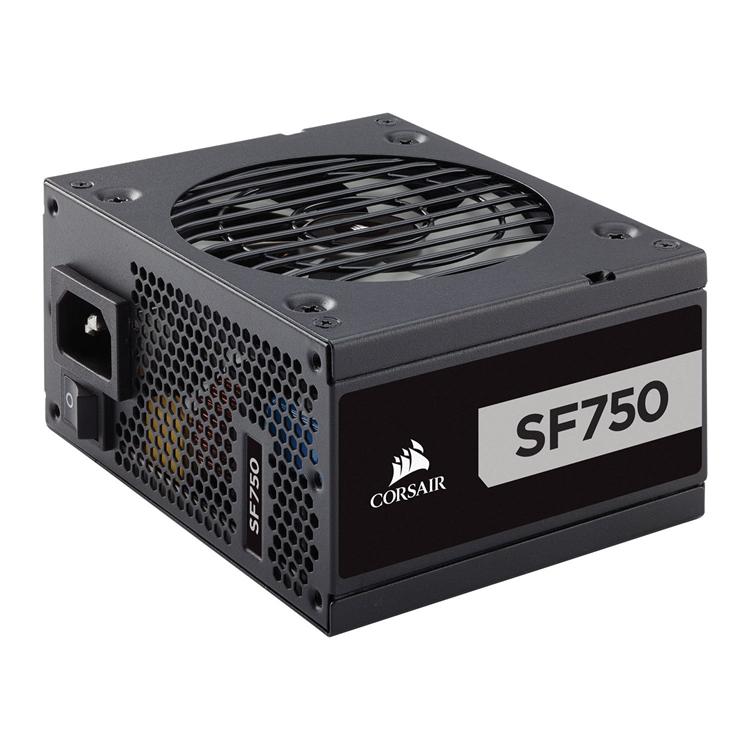

Corsair SF750 – 80 PLUS Platinum Fully Modular SFX PSU
n
Part numberCP-9020186
n
n
nCHOOSE THE SF750 FOR UNPRECEDENTED POWER IN YOUR NEXT SMALL FORM FACTOR PC
n
nThe CORSAIR SF750 80 PLUS Platinum SFX Power Supply is an extraordinarily power-dense PSU, ready to power the most cutting-edge small form factor PCs with 750 continuous watts. 80 PLUS Platinum certification makes it an ultra-efficient power supply that creates less heat and lower electric bills. A large 92mm fan provides industry-leading performance with minimal noise thanks to a Zero RPM mode that only activates at higher loads. Fully modular, individually-sleeved cables allow you to maximize space and improve airflow inside your PC whilst 105°C rated Japanese capacitors and premium electrical components ensure superior performance for years of stable and dependable operation.
n
n
nCHOOSE THE SF750 FOR UNPRECEDENTED POWER IN YOUR NEXT SMALL FORM FACTOR PC
n
nThe CORSAIR SF750 80 PLUS Platinum SFX Power Supply is an extraordinarily power-dense PSU, ready to power the most cutting-edge small form factor PCs with 750 continuous watts. 80 PLUS Platinum certification makes it an ultra-efficient power supply that creates less heat and lower electric bills. A large 92mm fan provides industry-leading performance with minimal noise thanks to a Zero RPM mode that only activates at higher loads. Fully modular, individually-sleeved cables allow you to maximize space and improve airflow inside your PC whilst 105°C rated Japanese capacitors and premium electrical components ensure superior performance for years of stable and dependable operation.
n
n
n
n
Fully Modular Connectivity
n
n
n
n
n
nKEEP YOUR BUILD LOOKING CLEAN
n
nThe fully modular design of the SFX power supply means that during your build you can mount the PSU in the case first and then only connect the cables you need, making builds and upgrades easy with great looking results. Simply connect the cables you need and keep the rest safe for future upgrades.
n
n
nKEEP YOUR BUILD LOOKING CLEAN
n
nThe fully modular design of the SFX power supply means that during your build you can mount the PSU in the case first and then only connect the cables you need, making builds and upgrades easy with great looking results. Simply connect the cables you need and keep the rest safe for future upgrades.
n
n
n
n
n
Compact SFX Form-Factor
n
n
n
n
n
nSEVEN-YEAR WARRANTY
n
nA 125mm-long casing ensures an easy fit in almost all modern enthusiast PC cases. Your guarantee of reliable operation that will last across several system builds.
n
n
nSEVEN-YEAR WARRANTY
n
nA 125mm-long casing ensures an easy fit in almost all modern enthusiast PC cases. Your guarantee of reliable operation that will last across several system builds.
n
n
n
n
n
Individually Sleeved Modular Cables
n
n
n
n
n
nMAKE CABLE MANAGEMENT A BREEZE
n
nOnly connect the cables your system needs, making clean and tidy builds easier whilst improving airflow. SF PLATINUM Series power supplies come equipped with premium individually sleeved cables featuring a flexible paracord sleeve, ready to become part of your new high-end PC.
n
n
nMAKE CABLE MANAGEMENT A BREEZE
n
nOnly connect the cables your system needs, making clean and tidy builds easier whilst improving airflow. SF PLATINUM Series power supplies come equipped with premium individually sleeved cables featuring a flexible paracord sleeve, ready to become part of your new high-end PC.
n
n
n
n
n
Powerful Cooling with low-noise Operation
n
n
n
n
n
n92MM PWM COOLING FAN
n
nThe SF PLATINUM Series upgrades the SFX-standard 80mm fan to a large 92mm. This reduces noise and improves cooling performance at demanding loads.
n
n
n92MM PWM COOLING FAN
n
nThe SF PLATINUM Series upgrades the SFX-standard 80mm fan to a large 92mm. This reduces noise and improves cooling performance at demanding loads.
n
n
n
n
n
SFX-to-ATX Bracket Included
n
n
n
n
n
nSF SERIES POWER
n
nSF PLATINUM Series power supplies include an SFX-to-ATX power supply adapter bracket that allows installation into any ATX compatible case. The new bracket offsets the mounting location, allowing for more space inside any standard ATX chassis, so you can tuck your excess cables out of the airflow path.
n
n
nSF SERIES POWER
n
nSF PLATINUM Series power supplies include an SFX-to-ATX power supply adapter bracket that allows installation into any ATX compatible case. The new bracket offsets the mounting location, allowing for more space inside any standard ATX chassis, so you can tuck your excess cables out of the airflow path.
n
n
n
n
n
Corsair SF750 Key Features
n
n
n
nCORSAIR QUALITY
n
n
nCORSAIR QUALITY
n
n
n
n
n
80 PLUS PLATINUM CERTIFIED
n
Platinum certification ensures high efficiency operation for less excess heat and lower operating costs.
n
n
n
n
JAPANESE 105°C CAPACITORS
n
Premium internal components ensure solid power delivery and long term reliability.
n
n
n
n
n
n
ZERO RPM FAN MODE
n
Fan doesn’t turn on until it’s needed, so you’ll enjoy virtually silent operation at low and medium loads.
n
n
n
| Specifications | |
|---|---|
| Size | SFX – with ATX adapter bracket |
| Edition | SF750 |
| Wattage | 750 W |
| 80 PLUS Certification | 80 PLUS Platinum |
| Max. Efficiency (at 230Vac) | 94 % |
| Cooling | Fan |
| Fans | 1 x 92mm |
| Internal +12V Rails | Single Rail |
| Rail 1 +12V | 62.5 A |
| Rail 2 +12V | N/A |
| Rail 3 +12V | N/A |
| Rail 4 +12V | N/A |
| Rail 5 +12V | N/A |
| Rail 6 +12V | N/A |
| Max. Combined Output +12V | 62.5 A |
| Modular | Yes |
| Modularity | Full Modular |
| SLI/CrossFire | Yes |
| EPS 12V | Yes |
| Motherboard Connector | 24-pin |
| Connectors |
n
n n n n n |
| Dimensions | 125 x 63.5 x 100 (WxHxD) |
| Package Type | Retail |
