Description

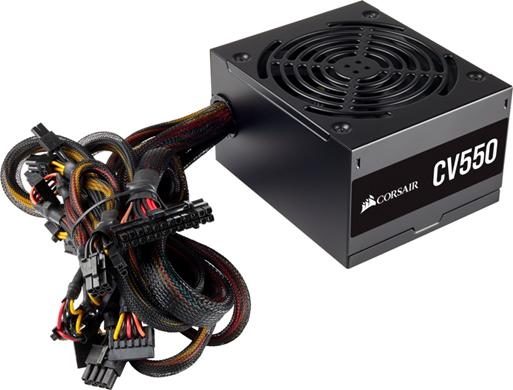

Corsair CV Series CV550 550W 80 Plus Bronze Semi-Modular PSU Power Supply
Part numberCP-9020210
Quiet and Dependable
The Corsair CV Series CV550 Power Supply will provide your set-up with continuous power and low noise. Ideal for powering your home or office PC, the 120mm thermally controlled cooling fan keeps noise to a minimum, whilst the compact casing makes for an easy fit into nearly an modern PC case.
Seamless Fit
Fit the PSU seamlessly into your build thanks to the black sleeved cables and black powder-coated casing. Backed by a three-year warranty, the CV Series PSUs are a strong start for your next PC
| SPECIFICATIONS | |
| Brand | Corsair |
| Series | CV Series |
| Model | CP-9020210 |
| Type | ATX |
| Continuous Power | 550W |
| Housing Colour | Black |
| Fan Size | 120mm |
| Fan Bearing Type | Sleeve |
| Modular Cable | Non-Modular |
| AC Input | 100-240V |
| AC Frequency | 47 – 63Hz |
| Input Current | 10A – 5A |
| ATX12V Version | V2.31 |
| Continuous output rated temperature °C | 30°C |
| MTBF hours | 100,000 Hours |
| 80 PLUS Efficiency | Bronze |
| Dimensions | 150mm x 125mm x 86mm |
| Cable Type | Sleeved |
| AC Input Rating | |
| 3.3V | 24A / 120W |
| 5V | 20A / 120W |
| 12V | 44A / 528W |
| -12V | 0.3A / 3.6W |
| 5VSB | 3A / 15W |
| Total Power | 550W |
| Connectors | 1x ATX 24 Pin Connector |
| 1x EPS/ATX12V 8 Pin (4+4) Connector | |
| 2x PCIe 8 Pin (6+2) Connectors | |
| 7x SATA Cable (3 SATA) Connectors | |
| 2x PATA Connectors | |
| 1x FDD Connectors | |
| Warranty | 3 Year Warranty |
