R2682.00 Incl. Vat
(Displayed price above applies to EFT / Bank Transfer payments only.)
KEY FEATURES:
– Four Pre-Installed CORSAIR RS120 PWM Fans
– RGB Flow Front Panel with Integrated ARGB Lighting
– FRAME Modular Case System
– InfiniRail™ Fan Mounting System
– Supports Mini-ITX, Micro-ATX, ATX & E-ATX Motherboards
– Reverse-Connector Motherboard Compatible
– Supports Up to 13 Fans
– Supports Triple 360mm Radiators
– USB 3.2 Gen 2×2 Type-C Front I/O
– 2 Year Warranty
The CORSAIR FRAME 4000X RS is designed for builders who want a chassis that delivers both exceptional airflow and premium RGB styling. Its distinctive RGB Flow front panel combines high-airflow ventilation with integrated addressable RGB lighting, creating a striking appearance while ensuring excellent cooling for modern gaming hardware. A full tempered glass side panel provides an uninterrupted view of your components, making it the perfect showcase for high-end builds.
Built around CORSAIR’s innovative FRAME Modular Case System, the chassis offers outstanding flexibility for future upgrades and customisation. Four pre-installed CORSAIR RS120 PWM fans deliver powerful cooling straight out of the box, while the InfiniRail™ Fan Mounting System allows builders to easily reposition fans for maximum airflow efficiency and compatibility with a wide variety of cooling configurations.
Designed for today’s enthusiast hardware, the FRAME 4000X RS supports Mini-ITX through E-ATX motherboards, including reverse-connector motherboard designs from ASUS BTF, MSI Project Zero, and Gigabyte Project Stealth for exceptionally clean cable management. The spacious interior accommodates graphics cards up to 430mm (or 405mm with front fans installed), CPU coolers up to 170mm, and ATX power supplies up to 220mm, providing excellent compatibility with flagship gaming components.
Cooling flexibility is exceptional, supporting up to 13 fans together with radiator compatibility for up to 360mm units in the front, top, and side mounting positions. A built-in GPU anti-sag stabilisation arm provides additional support for today’s larger graphics cards while helping maintain proper PCIe alignment and long-term reliability.
The modern front I/O includes a USB 3.2 Gen 2×2 Type-C port, two USB 3.2 Gen 1 Type-A ports, a combined audio jack, and a dedicated ARGB lighting control button for convenient lighting control. Combining premium airflow, modular engineering, vibrant RGB styling, and exceptional hardware compatibility, the CORSAIR FRAME 4000X RS is built to meet the needs of today’s enthusiast PC builders.

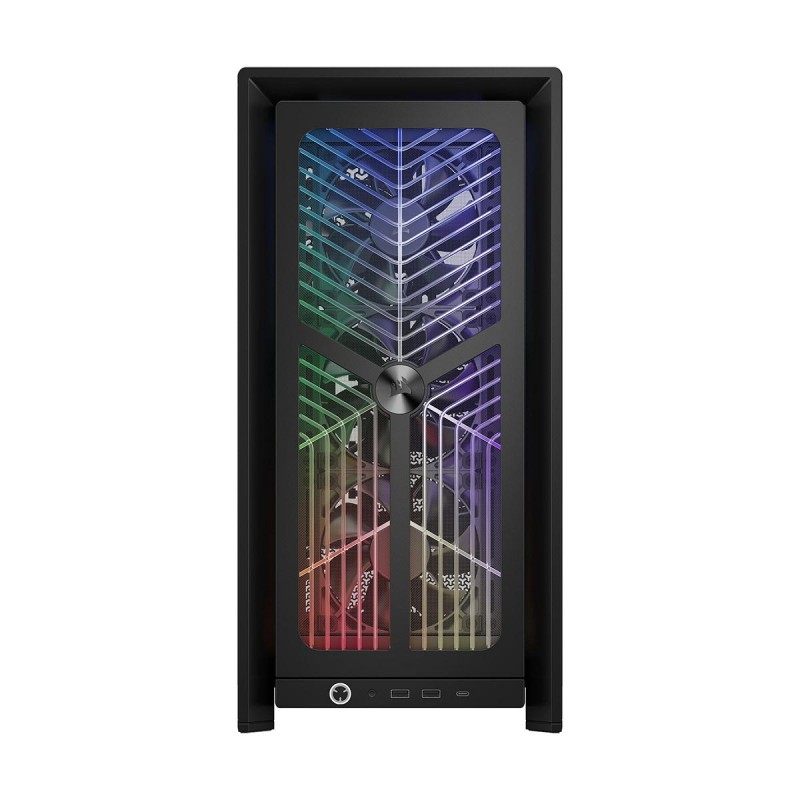

RGB FLOW FRONT PANEL
The innovative RGB Flow front panel combines integrated addressable RGB lighting with unrestricted airflow, delivering both outstanding cooling and eye-catching aesthetics.
FRAME MODULAR CASE SYSTEM
The modular FRAME platform allows future upgrades, interchangeable components, and extensive customisation, giving builders greater flexibility than traditional PC cases.
EXCEPTIONAL COOLING PERFORMANCE
Four RS120 PWM fans, the InfiniRail™ Fan Mounting System, support for up to 13 fans, and triple 360mm radiator compatibility provide outstanding thermal performance for enthusiast hardware.
READY FOR NEXT-GENERATION BUILDS
Supports reverse-connector motherboards, oversized graphics cards, premium cooling solutions, and the latest enthusiast components with ease.
PREMIUM SHOWCASE DESIGN
The tempered glass side panel, integrated RGB front panel, premium steel construction, and clean interior layout create an exceptional showcase for high-performance gaming systems.
| Feature | Details |
|---|---|
| Brand | CORSAIR |
| Product Family | FRAME 4000X RS |
| Model | FRAME 4000X RS |
| Manufacturer Part Number | CC-9011302-WW |
| Colour | Black |
| Chassis Type | Mid-Tower |
| Materials | Steel, Tempered Glass, Plastic |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX, E-ATX (305 × 277mm) |
| Reverse-Connector Motherboard Support | Yes |

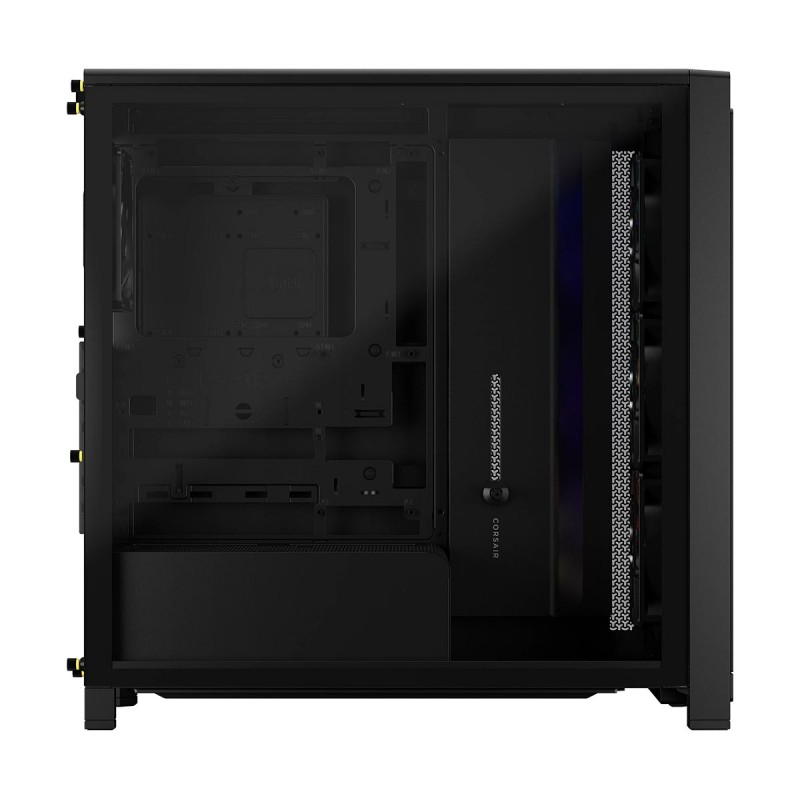

| Side Panel | Full Tempered Glass |
| Right Side Panel | Steel |
| Front Panel | RGB Flow Front Panel |
| Pre-Installed Fans | 4 × CORSAIR RS120 PWM Fans |
| Integrated Lighting | RGB Flow Front Panel (5V ARGB) |
| Fan Mounting System | InfiniRail™ |
| Maximum Fan Support | Up to 13 Fans |
| Front Fan Support | 3 × 120mm / 2 × 140mm / 2 × 200mm |
| Top Fan Support | 3 × 120mm / 2 × 140mm |
| Side Fan Support | 3 × 120mm / 2 × 140mm |
| Bottom Fan Support | 3 × 120mm |
| Rear Fan Support | 1 × 120mm / 1 × 140mm |
| Front Radiator Support | Up to 360mm |
| Top Radiator Support | Up to 360mm |
| Side Radiator Support | Up to 360mm |
| Rear Radiator Support | 120mm / 140mm |
| Maximum GPU Length | 430mm (405mm with front fans installed) |
| Built-In GPU Anti-Sag Arm | Yes |
| Maximum CPU Cooler Height | 170mm |
| Maximum PSU Length | 220mm |
| PSU Support | ATX |
| Internal Drive Bays | 1 × 3.5″, 2 × 2.5″ |

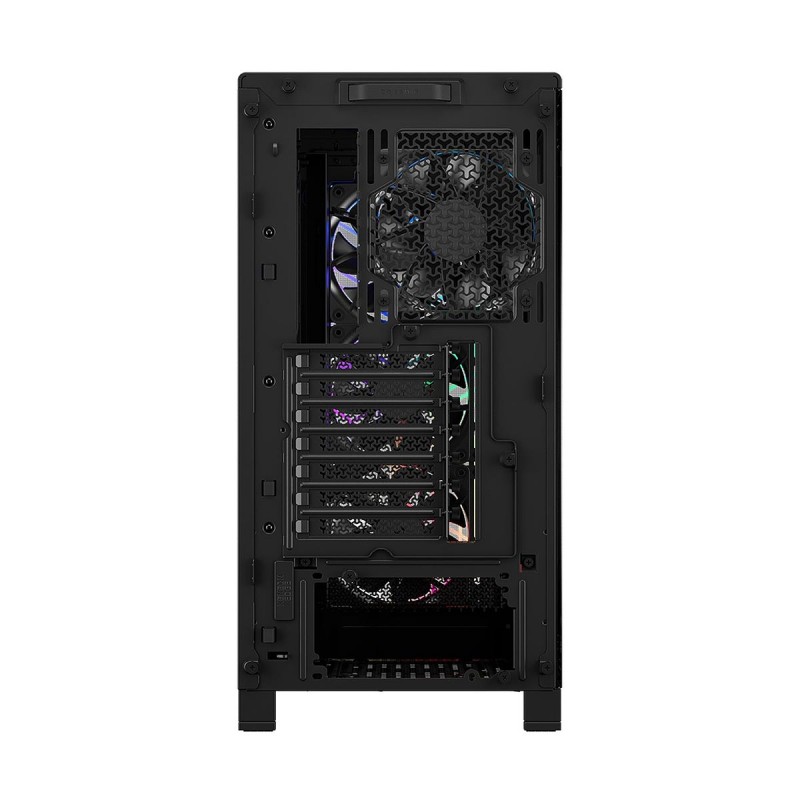

| Expansion Slots | 7 Horizontal or 3 Vertical |
| Vertical GPU Support | Yes (Riser Sold Separately) |
| Cable Routing Space | 37mm |
| Dust Filters | Yes |
| Front I/O | 1 × USB 3.2 Gen 2×2 Type-C, 2 × USB 3.2 Gen 1 Type-A, 1 × Audio Combo Jack, 1 × ARGB Control Button |
| Dimensions | 488 × 486 × 239mm |
| Weight | 11.53kg |
| Warranty | 2 Year Warranty |
| Weight | 12 kg |
|---|---|
| Chassis Brand | |
| Chassis Colour | |
| Chassis Form Factor | |
| Chassis Lighting | |
| Chassis Radiator Support | |
| Chassis Side Panel |
