Description
Part numberCP-9020249 / CP-9020263

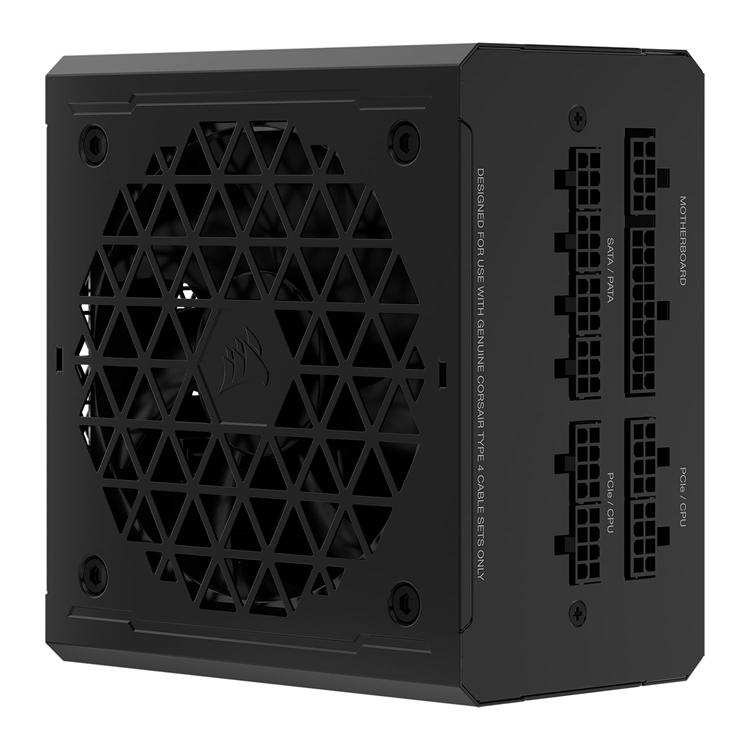

CORSAIR RMe Series RM850e Fully Modular Low-Noise 850W ATX Power Supply
CORSAIR RMe Series Fully Modular Low-Noise Power Supplies with dual 8-pin EPS12V connectors provide quiet, reliable power with 80 PLUS Gold efficiency to a wide variety of PC builds.
FULLY MODULAR CABLING
Keep cable clutter down by connecting only the cables your system needs and nothing else. Five universal 8-pin connectors can be used with any 8-pin cable, satisfying all the power needs of modern motherboards and GPUs.
Features
TUNED FOR LOW NOISE OPERATION

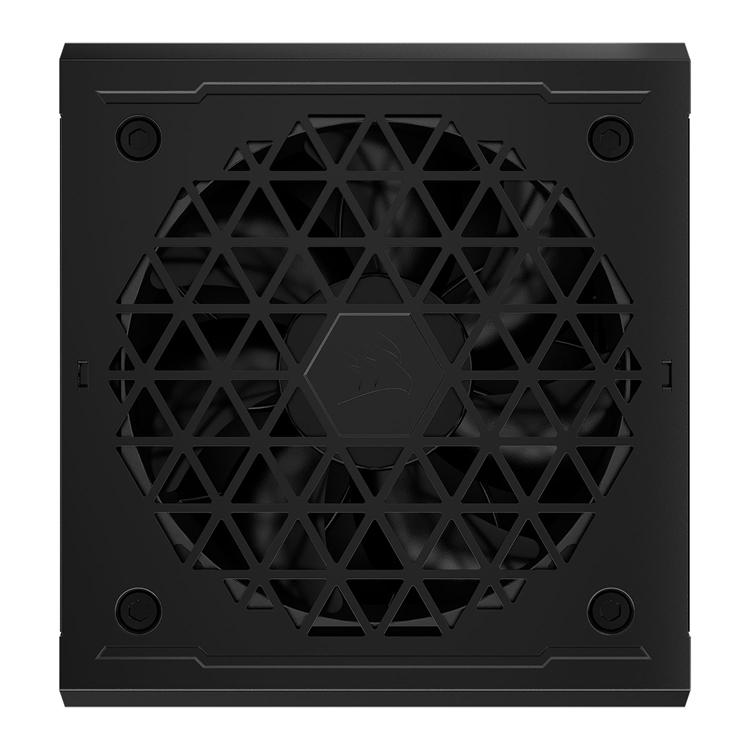

A 120mm rifle bearing fan with a specially calculated fan curve keeps fan noise down, even when operating at full load. With Zero RPM Fan Mode for near-silent operation at lower loads.
TECHNOLOGY AND RELIABILITY
For consistent, reliable power and superb electrical performance, each RMe Series power supply features a robust resonant LLC topology with DC-DC conversion and 105° rated industrial-grade capacitors. With precise timings, RMe supports Modern Standby, ensuring extremely fast wake-from-sleep times and better low-load efficiency.
Part number80 PLUS GOLD-CERTIFIED
Steady power output at up to 90% efficiency, and Cybenetics Platinum certified for lower power consumption, less noise, and cooler temperatures.
WORLD-CLASS SUPPORT
Our award-winning service and 7 Year Warranty means you can enjoy your gear worry-free.
Additional Information:
Specifications
| Make and Model | CORSAIR RMe Series RM850e Fully Modular Low-Noise 850W ATX Power Supply | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | CP-9020249 / CP-9020263 | ||||||||||||||||||
| Power Input | |||||||||||||||||||
| Input Voltage | 100 ~ 240Vac | ||||||||||||||||||
| Input Frequency Range | 47 ~ 63 Hz | ||||||||||||||||||
| Maximum Current | 10A @ 100Vac | ||||||||||||||||||
| Compliance | 80 PLUS® Gold | ||||||||||||||||||
| Output | |||||||||||||||||||
Maximum Load
|
|||||||||||||||||||
| Total Output | 850W | ||||||||||||||||||
| MTBF | 100,000 Hours | ||||||||||||||||||
| Cooling Fan | 120mm Corsair Rifle Bearing Fan | ||||||||||||||||||
| Protection | Catastrophic Failure Protection Over-Current Portection Over Power Protection Over Temperature Protection Over-Voltage Protection Short Circuit Protection |
||||||||||||||||||
| Connectors | 1x 24 pin ATX Connector 2x 8 (4 + 4) pin 12V EPS/ATX Connectors 1x 8 pin PCI-E Connector 1x 8 pin (6 + 2 pin) PCI-E Connector 7x SATA Power Connectors 4x 4 Pin Molex™ Connectors |
||||||||||||||||||
| Dimensions (LxWxH) | N/A | ||||||||||||||||||
| Weight | N/A | ||||||||||||||||||
