Description
n
CMK64GX4M4C3200C16 / CMK64GX4M4D3200C16 / CMK64GX4M4E3200C16
n

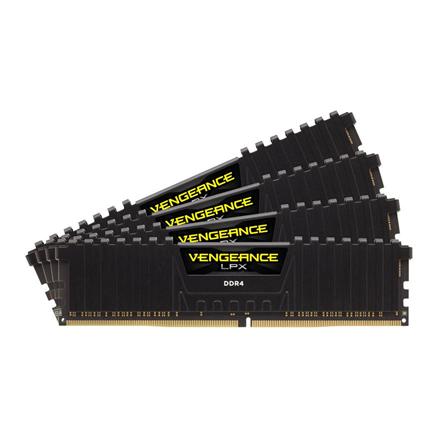

nCORSAIR DDR4 VENGEANCE LPX RAM
n
nVENGEANCE LPX memory is designed for high-performance overclocking. The heatspreader is made of pure aluminium for faster heat dissipation, and the custom performance PCB helps manage heat and provides superior overclocking. Each IC is individually screened for performance potential. The DDR4 form factor is optimized for the latest Intel 299 Series motherboards and offers higher frequencies, greater bandwidth, and lower power consumption than DDR3 modules. VENGEANCE LPX DDR4 modules are compatibility-tested across 299 Series motherboards for reliably fast performance. There’s XMP 2.0 support for trouble-free automatic overclocking. And, they’re available in multiple colours to match your motherboard, your components, or just your style.
n
n
n
3200MHz Speed
n
n
n
16-20-20-38 CAS Latency
n
n
n
1.35V Voltage
n
n
n
64GB (4x16GB) Capacity
n
n
n
n
MEMORY PERFORMANCE ADVANCEMENTS
n
n
n
nExperience the True Power of DDR4 RAM
n
nIt was 2007 that the DDR3 standard was announced and in the years since then technology has only been pushed further. Eventually the memory standard was pushed to the edge of DDR3 limits, until DDR4 smashed through those limits! Corsair DDR4 doubled the bandwidth and dramatically increase clock speeds, whilst consuming less power than ever before.
n
n
n
Part numberINSTALLING DDR4 MEMORY
n
n
n
nMotherboard Socket DDR4 Optimization
n
nPin Out: 288
n
nVengeance LPX’s form factor is optimized and for wide compatibility with the latest Intel® and AMD DDR4 motherboards, forging reliably fast performance. With any standard DDR4 DIMM memory socketed motherboard you shouldn’t have any trouble installing the powerful Vengeance LPX RAM and getting DDR4 performance into your system.
n
n
n
LOW PROFILE MEMORY DESIGN
n
n
n
nCorsair DDR4 Memory Size
n
nThe clever and stylish, low-profile design of DDR4 LPX memory means it can fit comfortably into much smaller spaces. The LPX series of Vengeance DRAM was prepared for when the first of the Micro ATX and Mini-ITX motherboards for DDR4 memory released. In any system that has minimal internal space the small form factor of the LPX DDR4 RAM from Corsair is ideal.
n
n
n
Part numberOVERCLOCKING DDR4 RAM
n
n
n
nUnlock the Potential within DDR4
n
nCorsair’s Vengeance LPX DDR4 has been built around high-performance overclocking. Each module from the LPX series utilizes highly-screened memory ICs and an eight-layer PCB, with further overclocking improvments through the efficient heat spreader that provides effective cooling. The eight-layer PCB system on these DDR4 memory sticks helps if your computer is trying to squeeze too much information into one layer, causing a significant rise in temperature which can create a multitude of issues.
n
n
n
VENGEANCE LPX HEAT SPREADER
n
n
n
Cooler Memory for Better Performance
nThe heat spreader on Corsair LPX DDR4 memory is made of pure aluminum, creating a faster heat dissipation and a cooler operation. Usually the overclocking overhead is limited by the operating temperature, but not for the Vengeance LPX. Due to the unique design of the heat spreader, the temperature is constantly lowered as heat is pulled away from the ICs and into your system’s cooling path. Not only does the heat spreader allow Vengeance LPX to perform better, but the aggressive yet refined form factor looks great in any system.
n
n
n
n
Technical Specifications
n
nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn
| Memory Type | DDR4 UDIMM |
| Memory Channel | Quad |
| Memory Capacity | 64GB (4 x 16GB) |
| Memory Speed | 3200 (PC4-25600) |
| CAS Latency | CL16 |
| Memory Timings | 16-20-20-38 |
| Voltage | 1.35v |
| Interface | 288-pin |
| ECC | Non-ECC |
| X.M.P Support | X.M.P 2.0 |
n
n
Additional Information
n
nnnnnnnnnnnnnnnnnnnnnnn
| PCB Colour | Black |
| Heatspreader | Yes |
| Heatspreader Colour | Black |
| Lighting | N/A |
| Features | Designed for High-Performance Overclocking nAnodized Aluminum Heatspreader nLow-Profile Design |
n
n
Warranty and Return Information
n
nnnnnnnnnnn
| Warranty Period | Limited Lifetime |
| Return Policy | Standard |
