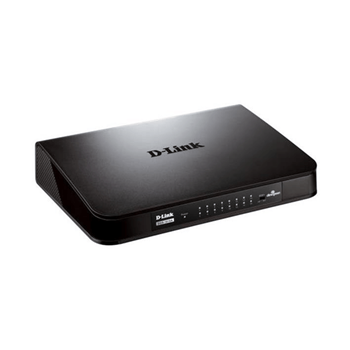

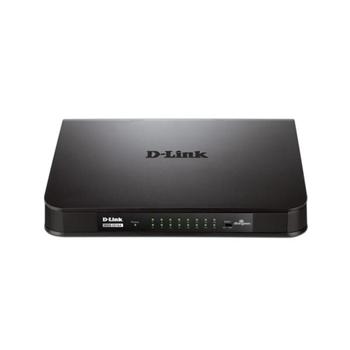

D-Link DGS-1016A GigaExpress 16 port 10/100/1000 Gigabit unmanaged Switch

n
nGigabit on Every Port
nThe 16-Port Unmanaged Gigabit Switch series brings the speed of Gigabit Ethernet to each and every port for a truly high-speed network. If your network has a mix of legacy and modern computing capabilities, each port allows for standard Ethernet, Fast Ethernet, or Gigabit Ethernet connections. You have the latest technology available to every computer and device connected to your network.
n
n

n
nInnovative Design
nThe sleek plastic case of the DGS-1016A series is an industry first for a Gigabit SOHO/SMB switch. Using a compact desktop style helps reduce heat levels and allow for a fanless design, making the switches silent, as well as economical. The 16-Port Unmanaged Gigabit Switch series is small, lightweight, wall-mountable, and ideal for any business with big needs and a small budget.
n
nConserves Energy
nThe 16-Port Unmanaged Gigabit Switch series helps you conserve energy automatically through several methods. It automatically powers down ports that have no link, allowing the switch to save substantial amounts of power by cutting power usage for unused ports or any ports connected to computers that have been shut down. It can also detect connected cable lengths, and adjusts power usage accordingly, helping you save energy without affecting networking performance.
n
nThink Green
nThe DGS-1016A 16-Port Unmanaged Gigabit Switch series makes use of D-Link Green Ethernet technology, providing more energy savings and a longer product life, without sacrificing operational performance or functionality. These environmentally friendly switches are also RoHS compliant, use recyclable packaging, and minimize the use of harmful substances.
n
n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

Ports	Sixteen 10/100/1000 Gigabit ports
Switching Capacity	32Gbps
Standards	IEEE 802.3 10BASE-T Ethernet nIEEE 802.3u 100BASE-TX Fast Ethernet nIEEE 802.3ab 1000BASE-T Gigabit Ethernet nANSI/IEEE 802.3 NWay auto-negotiation nIEEE 802.3x Flow Control nIEEE 802.3az Energy Efficient Ethernet (EEE)
Data Transfer Rates	Ethernet: n•10 Mbps (half duplex) n•20 Mbps (full duplex) n nFast Ethernet: n•100 Mbps (half duplex) n•200 Mbps (full duplex) n nGigabit Ethernet: n•2000 Mbps (full duplex)
Network Cables	10BASE-T: n•UTP CAT 3, 4, 5/5e (100 m max) n•EIA/TIA-586 100-ohm STP (100 m max) n n100BASE-TX, 1000BASE-T n•UTP CAT 5/5e (100m max) n•EIA/TIA-568 100-ohm STP (100 m max)
Media Interface Exchange	Auto MDI/MDIX adjustment for all ports
LED Indicators	Per port: Link/Activity/Speed nPer device: Power
Transmission Method	Store-and-forward
MAC Address Table	8k
MAC Address Learning	Automatic update
MAC Address Filtering / Forwarding Rates	Ethernet: 14,880 pps per port nFast Ethernet: 148,800 pps per port nGigabit Ethernet: 1,488,000 pps per port
RAM Buffer	2Mbits
Jumbo Frames	9216 Bytes
D-Link Green	IEEE 802.3az Energy Efficient Ethernet (EEE) nLink status detection power saving nCable length detection power saving nRoHS Compliance
Power Inputs	Switching 12V/1A level V power adapter
Power Consumption	Power On (Standby): AC input: 3.12 Watts nPower Max.: AC input: 7.89 Watts
MTBF	527,308 hours
Certifications	FCC Class A nICES-003 Class A nCE Class A nuCL nCB nVCCI Class A nC-Tick Class A
Dimensions	9.1 x 6.2 x 1.8 inches n231 x 158 x 46 mm
Weight	1.28 lbs. n580g
