Description
Part numberR-AG400-BKNNMN-G-1
PERFORMANCE CPU COOLER

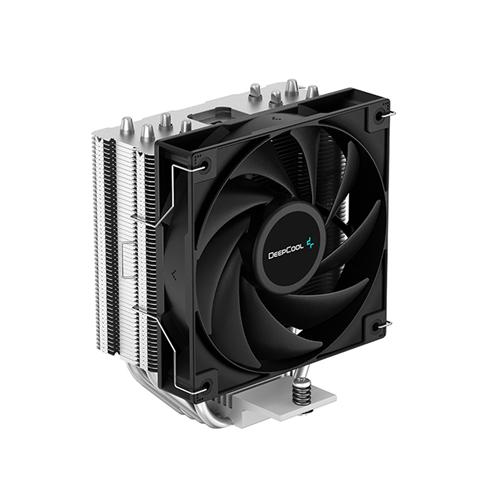

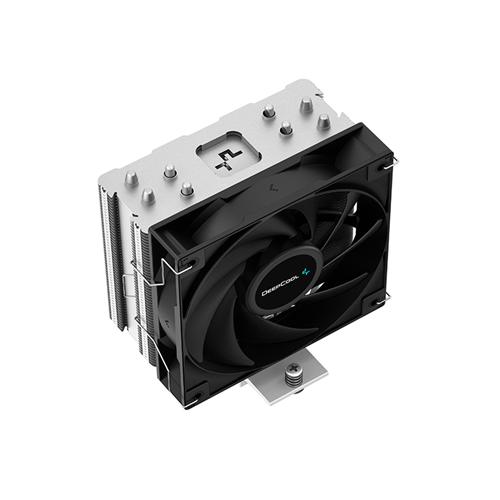

The DeepCool AG400 is a single tower 120mm CPU cooler that builds upon DeepCool’s legacy for high-quality cooling performance but stripped down for a streamlined and efficient package. It provides up to 220W of heat dissipation power whether it’s in a horizontal or vertical case thanks to its balanced bidirectional heatpipe technology. This improves system performance and allows prime compatibility with its compact design.
Stellar Thermal Performance
DIRECT TOUCH HEATPIPES

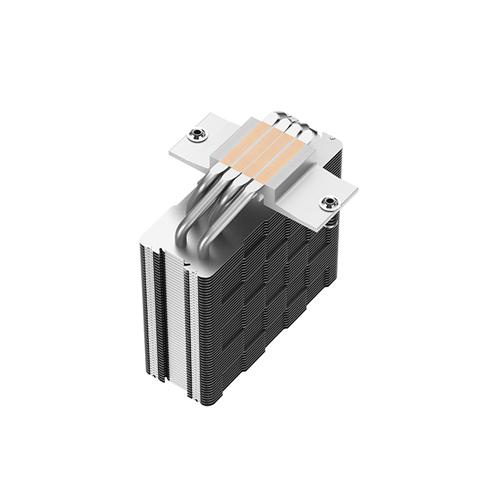

Enjoy better system performance by keeping things cool with up to 220W of heat dissipation power featuring four direct touch heat pipes that rapidly draw heat away from the CPU.
Prime Compatibility
EASY INSTALLATION
The AG400 maintains excellent hardware compatibility with its compact design for 100% RAM clearance and has a slight offset for quick and easy installation. Its superb thermal performance also allows it to be compatible with demanding processing workloads.
FAN LOCK MOUNTING SYSTEM
When installing the AG400, the fan does not need to be disassembled during the process, simplifying and saving time.
Balanced Bidirectional Heatpipe Technology
EFFECTIVE COOLING
By optimising the internal capillary structure and injecting a precise amount of liquid, the heat pipe achieves the best heat dissipation performance regardless of whether the cooler is in a vertical or horizontal case. This perfect ratio facilitates a highly efficient phase change throughout the heat pipe and achieves lower thermal resistance over a wide TDP range.

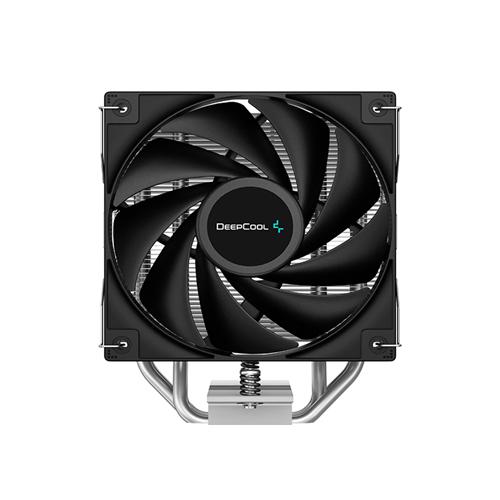

High Efficiency Fans
PWM SUPPORT
Find your optimal balance with automatic PWM support for full performance under load to silent efficiency at idle.500-2000 RPM≤31.6 dB(A)75.89 CFM
Unique Heatsink Design
MATRIX FINS ARRAY
High-quality aluminium fins on the heat sink are densely stacked for ideal heat dissipation and which also features a unique “checkerboard” design aesthetic.
Simple & Secure
INTEL AND AMD COMPATIBILITY
The included mounting brackets support both Intel and AMD platforms with an easy five-step installation process that maintains great contact pressure. The offset design of the heat pipes ensures that the cooler can be installed with the fan already attached.
INTEL: LGA1700/1200/1151/1150/1155
AMD: AM5/AM4
| Model | R-AG400-BKNNMN-G-1 |
| Socket Compatibility | Intel: LGA1700, LGA1200, LGA1151, LGA1150, LGA1155 AMD: AM4, AM5 |
| Cooler Height | 150mm |
| Heatsink Material | Aluminium |
| Heatpipes | 4 x 6mm |
| Fan Size | 1 x 120mm |
| Fan Specs | Speed: 500-2000 RPM ± 10% Airflow: 75.89 CFM Pressure: 2.53 mmH2O Noise: ≤ 31.6 dBA Connector: 4-pin PWM |
| Lighting | None |
| Dimensions | 125mm x 92mm x 150mm |
| Weight | 614g |
| Warranty | 1 Year |
