Description
Part numberR-AG620-BKAMMG2-G

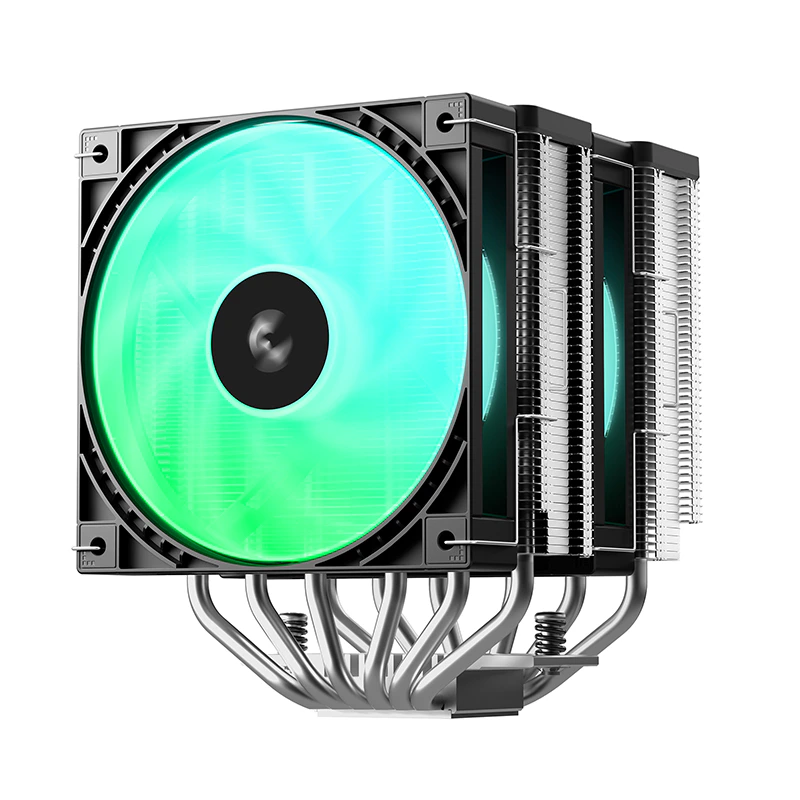

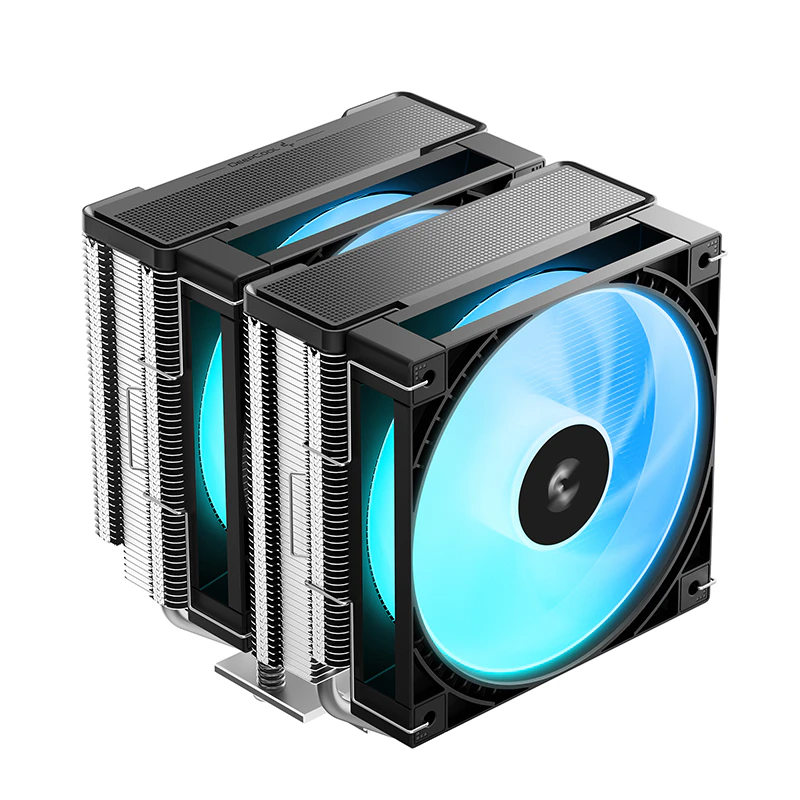

The DeepCool AG620 G2 ARGB delivers powerful CPU air cooling through an upgraded dual-tower heatsink design and six 6mm copper heat pipes. Built for modern gaming and performance-focused systems, its second-generation architecture combines efficient heat transfer with refined aesthetics and addressable RGB lighting.

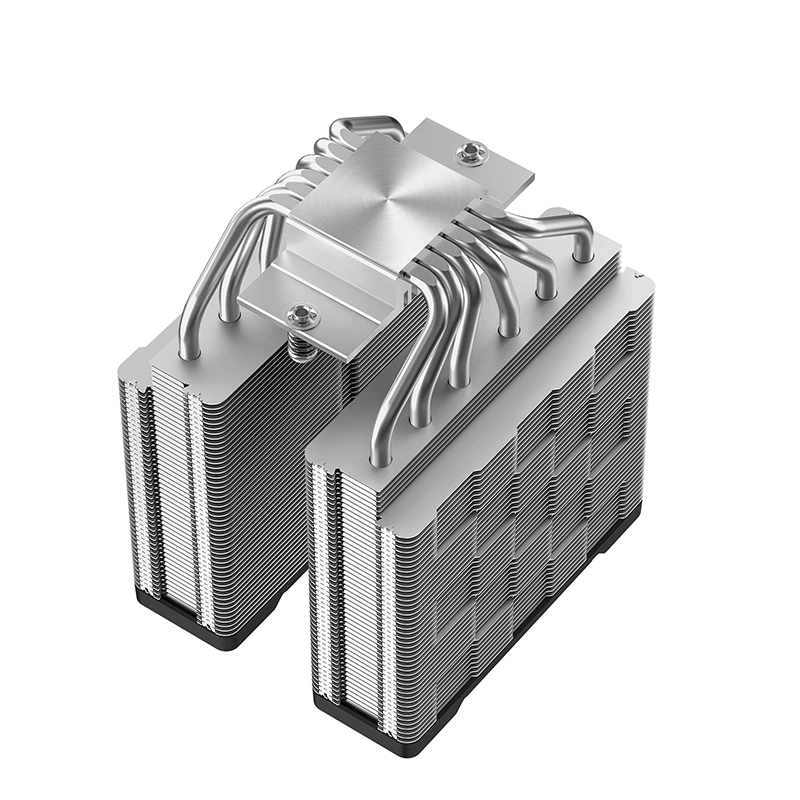

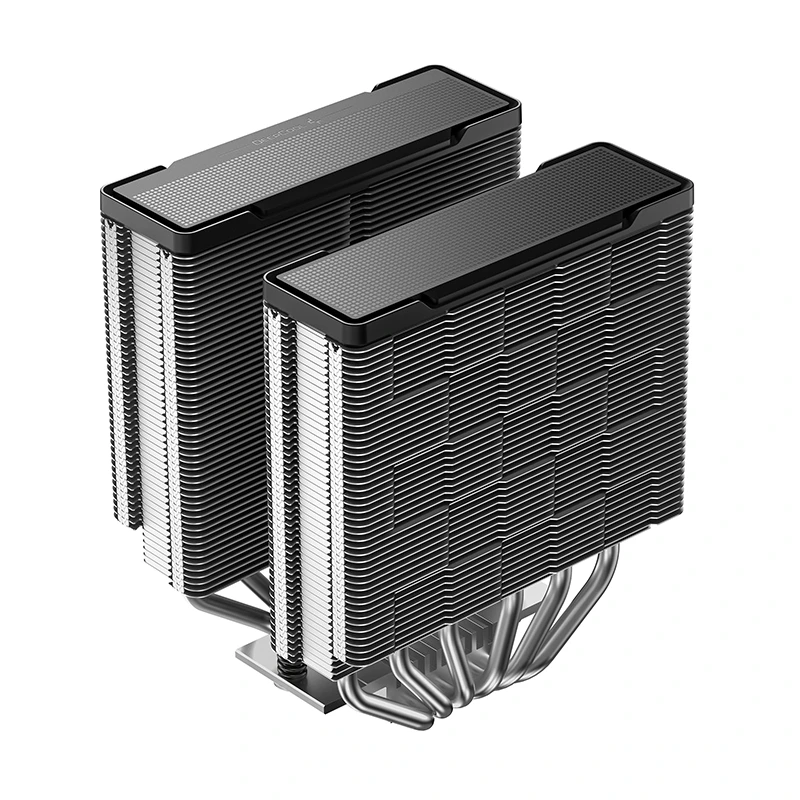

DeepCool’s Core Touch Technology 2.0 (CTT 2.0) optimises heat pipe placement and contact with the nickel-plated coldplate, improving heat transfer from the processor into the dual-tower heatsink. The dense aluminium fin arrays provide a large surface area for dissipating heat during demanding workloads.
Two 120mm ARGB PWM fans provide focused airflow through the heatsink, with operating speeds reaching up to 2,000 RPM and 2,200 RPM respectively. The reinforced closed-wheel fan design helps reduce unwanted airflow leakage while improving pressure and cooling efficiency. Hydro bearings and PWM speed control allow the fans to balance cooling performance with noise levels according to system demand.
The cooler features 5V 3-pin addressable RGB lighting, allowing its illuminated fans to complement compatible motherboard lighting systems. Its black finish, matrix-style heatsink fins and refined top covers create a clean appearance suitable for modern gaming builds.
Compatible with Intel LGA1851/1700 and AMD AM5/AM4 sockets, the AG620 G2 ARGB includes mounting hardware designed to provide secure installation and consistent CPU contact pressure. With an overall height of 159mm, it is suitable for compatible mid-tower and full-tower cases with sufficient CPU cooler clearance.
WHY IT’S A GREAT CHOICE
– Effective CPU Cooling: Six copper heat pipes and a dual-tower heatsink provide substantial heat dissipation for demanding gaming and productivity workloads.
– Improved Thermal Transfer: Core Touch Technology 2.0 optimises heat transfer between the processor and heatsink for more efficient cooling.
– Balanced Cooling and Noise: Dual PWM fans automatically adjust their speeds according to cooling requirements, helping maintain quieter operation during lighter workloads.
– Focused Airflow: Reinforced closed-wheel fan blades help direct airflow through the heatsink for improved cooling efficiency.
– Customisable ARGB Lighting: Addressable RGB fans add visual appeal and allow lighting integration with compatible motherboard systems.
– Modern Platform Compatibility: Support for Intel LGA1851/1700 and AMD AM5/AM4 makes it suitable for a wide range of current gaming and performance PC builds.
– Clean Gaming Aesthetics: The black dual-tower design and refined heatsink covers complement modern gaming systems.
SPECIFICATIONS
| Specification | Details |
|---|---|
| Brand | DeepCool |
| Series | AG Series |
| Model | AG620 G2 ARGB |
| Manufacturer Part Number | R-AG620-BKAMMG2-G |
| EAN | 6933412729914 |
| Product Type | CPU Air Cooler |
| Cooler Design | Dual-Tower |
| Colour | Black |
| Cooling Technology | Core Touch Technology 2.0 |
| Heat Pipes | 6 × Ø6mm |
| Coldplate | Nickel-Plated |
| Heatsink Design | Dual-Tower Fin Stack |
| Included Fans | 2 × 120mm ARGB PWM |
| Fan Dimensions | 120 × 120 × 25mm |
| Fan Speed | 500–2,000 RPM ±10% / 500–2,200 RPM ±10% |
| Fan Motor | 1-Phase, 4-Slot, 4-Pole |
| Fan Airflow | 62.16 CFM / 68.85 CFM |
| Fan Static Pressure | 1.75 mmAq / 2.10 mmAq |
| Fan Noise | ≤28.10 dB(A) / ≤30.93 dB(A) |
| Fan Bearing | Hydro Bearing |
| Fan Connector | 4-Pin PWM |
| Fan Rated Voltage | 12V DC |
| Fan Rated Current | 0.15A / 0.18A |
| Fan Power Consumption | 1.8W / 2.16W |
| Lighting | Addressable RGB |
| LED Connector | 3-Pin (+5V-D-G) |
| LED Rated Voltage | 5V DC |
| LED Power Consumption | 1.70W |
| Intel Socket Compatibility | LGA1851 / LGA1700 |
| AMD Socket Compatibility | AM5 / AM4 |
| Product Dimensions | 129 × 136 × 159mm (L × W × H) |
| Heatsink Dimensions | 127 × 110 × 156mm (L × W × H) |
| Product Weight | 1,046g |
