Description
Part numberR-ASN4-BKNVMD-G
The DeepCool ASSASSIN IV VC VISION represents the pinnacle of air-cooling engineering, merging powerful 300 W TDP thermal capacity with intelligent digital feedback and vapor-chamber efficiency. Designed for enthusiasts and creators alike, it excels in thermals, acoustics, and aesthetics.

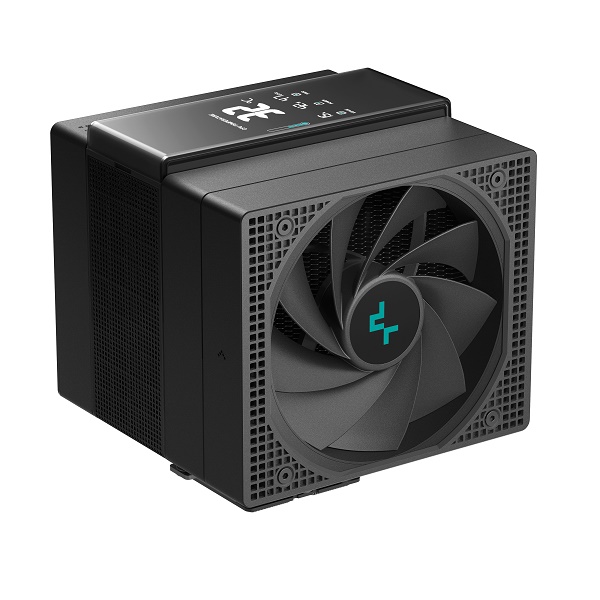

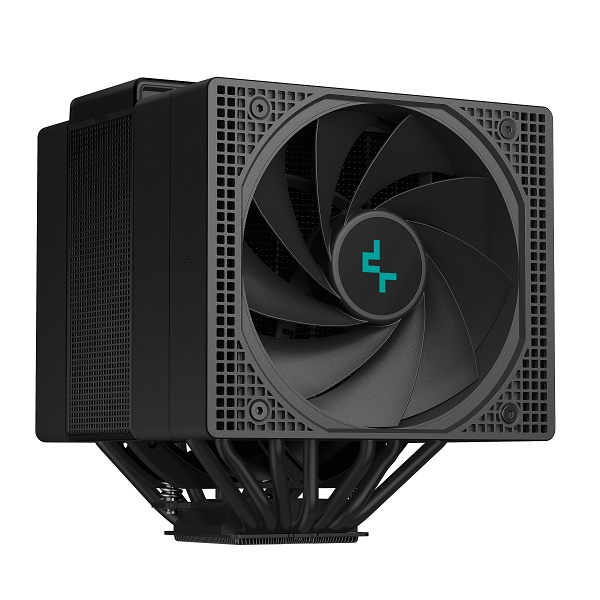

The advanced vapor-chamber baseplate transfers heat evenly across 7 direct-touch heatpipes feeding twin heatsink towers, each cooled by a pair of high-pressure PWM fans (140 mm + 120 mm). Builders can toggle between performance and quiet modes for ultimate control of noise and temperature.

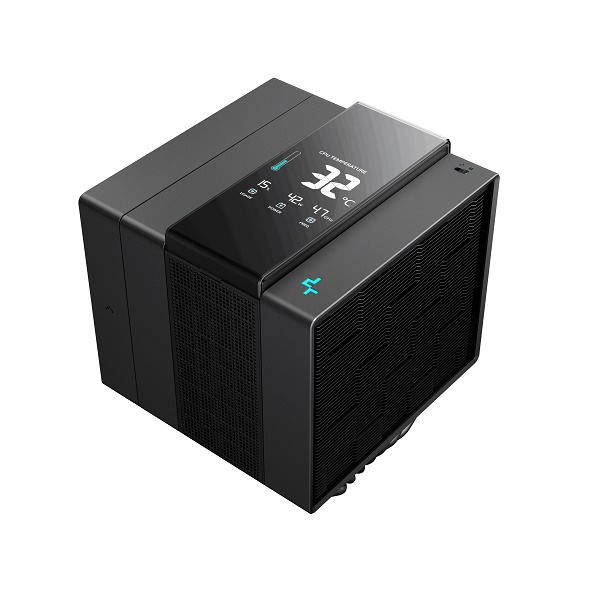

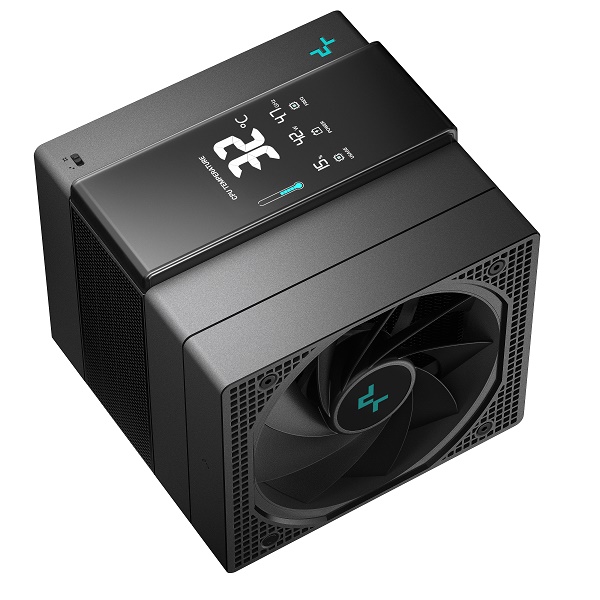

A striking quad-segment digital display crowns the cooler, showing real-time CPU temperature, usage, frequency and power draw, with colour alerts (green → orange → red) for thermal safety.
The adjustable fan frame improves RAM clearance, while the magnetic top cover and refined black finish complete its premium look. With support for Intel LGA 2066/1851/1700/1200/115x and AMD AM5/AM4, the ASSASSIN IV VC VISION is built to dominate in both style and substance — and backed by a 6-year warranty for peace of mind.
Why It’s a Great Choice
-
Flagship Performance: 300 W TDP capacity rivals AIO liquid coolers while remaining whisper-quiet.
-
Smart Feedback: Real-time display shows CPU metrics and thermal alerts directly on the cooler.
-
Engineering Excellence: Vapor-chamber base and 7 heatpipes provide top-tier thermal transfer.
-
Dual-Mode Airflow: Switch between silent and performance profiles to match your workflow.
-
Premium Build: Magnetic panel and solid dual-tower construction for durability and easy access.
-
Universal Fit: Wide socket support for Intel and AMD platforms (incl. LGA 1851 & AM5).
-
Aesthetic Design: Subtle matte black finish and digital display complement high-end rigs.
-
Longevity: 6-year DeepCool warranty ensures lasting reliability for enthusiasts and creators.
Specifications:
| Specification | Details |
|---|---|
| Model Name | DeepCool ASSASSIN IV VC VISION |
| Cooling Type | Dual-Tower Air Cooler with Vapor Chamber Base |
| Max Cooling Capacity (TDP) | Up to 300 W |
| Heatpipes | 7 × Ø6 mm Copper Heatpipes |
| Fans Included | 1 × 140 mm + 1 × 120 mm PWM Fans |
| Fan Speed | 500 – 1800 RPM (140 mm) / 500 – 1700 RPM (120 mm) |
| Airflow (Max) | 61.25 CFM (140 mm) / 58.06 CFM (120 mm) |
| Noise Level (Max) | ≤ 29.3 dB(A) Perf / ≤ 22.6 dB(A) Silent |
| Bearing Type | Fluid Dynamic Bearing (FDB) |
| Display Type | Quad-Segment Digital Screen (CPU Temp / Usage / Watts / Freq) |
| Alert System | Colour-coded Temp Warning (Green–Orange–Red) |
| Dimensions (L × W × H) | 147 × 144 × 172 mm |
| Weight | ≈ 1.78 kg |
| Material | Aluminium Fins + Copper Vapor Chamber Base |
| Socket Support | Intel LGA 2066 / 1851 / 1700 / 1200 / 115x • AMD AM5 / AM4 |
| Power Connectors | 4-Pin PWM + USB (for Display) |
| Adjustable Fan Frame | Yes – RAM Clearance Friendly |
| Top Panel Design | Magnetic Cover + Display Integration |
| Colour | Matte Black |
| Warranty | 6 Years |
