Description
ModelDC-CC560-0F

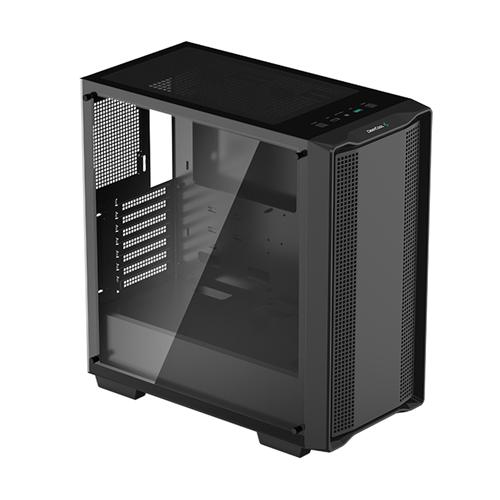

The DeepCool CC560 Mid-Tower Case offers outstanding value with spacious component compatibility and a full-sized tempered glass window that gets any build started right, with support for up to 6x 120mm or 4x 140mm fans.
ABUNDANT AIRFLOW PERFORMANCE
Well ventilated throughout the entire chassis, the CC560 sports an airflow front panel and a large mesh top panel to ensure fresh air is circulating.
WIDE COOLING SUPPORT
Enough space to support high-performance AIO liquid coolers with room for 360mm radiators in front or 240mm on top. Cooling fan support for up to 6x 120mm or 4x 140mm.
STORAGE SOLUTIONS
Install up to 2x 2.5” SSDs directly on the backplate and 2x 3.5” HDDs underneath the shroud in a removable drive cage for adjustability.
Specifications
| Product Dimensions (L×W×H) | 416 × 210 × 477 mm |
| Net Weight | 5.25Kg |
| Materials | ABS SPCC Tempered Glass |
| Motherboard Support | Mini-ITX / Micro-ATX / ATX |
| Front I/O Ports | USB3.0 ×1 USB2.0 ×1 Audio ×1 |
| 3.5″ Drive Bays | 2 |
| 2.5″ Drive Bays | 2+1 |
| Expansion Slots | 7 Slots |
| Pre-Installed Fans | None |
| Fan Support | Front: 3×120 / 2×140mm Top: 2×120 / 2×140mm Rear: 1×120mm(No Fans Included) |
| Radiator Support | Front: 120/140/240/280/360mm Top: 120/240mm Rear: 120mm |
| CPU Cooler Height Limit | 163mm |
| GPU Length Limit | 370mm |
| Power Supply Type | ATX PS2(maximum length: 170mm) |
