Description
Part numberR-CC560-WHGAA4-G-1
Mid-Tower Case
The DeepCool CC560 WH Mid-Tower Case in White offers outstanding value with spacious component compatibility, a full-sized tempered glass window, and a total of four pre-installed LED fans that gets any build started right.
ABUNDANT AIRFLOW PERFORMANCE
Well ventilated throughout the entire chassis, the CC560 WH sports an airflow front panel and a large mesh top panel to ensure fresh air is circulating.
PRIMED AND READY
A total of 4 pre-installed LED fans delivers big airflow performance ensuring any system build is receiving top-notch cooling capacity.
WIDE COOLING SUPPORT
Enough space to support high-performance AIO liquid coolers with room for 360mm radiators in front or 240mm on top. Cooling fan support for up to 6x 120mm or 4x 140mm.
COMPATIBILITY
Max CPU Cooler Height: 163mm
Max GPU Length: 370mm
Max PSU Length: 170mm
FULL-SIZED TEMPERED GLASS WINDOW
TOP PANEL MAGNETIC DUST FILTER
| SPECIFICATIONS | |
| Brand | DeepCool |
| Series | CC560 Series |
| Model | CC560 White (R-CC560-WHGAA4-G-1) |
| Physical Details | |
| Colour | White |
| Materials | Steel |
| Plastic | |
| Tempered Glass | |
| Side Panel | Clear Acrylic Side Panel |

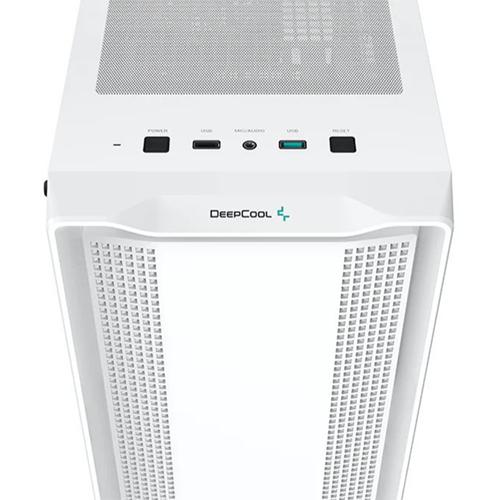

| Front I/O | 1x Front-Panel USB 5Gb/s Type-A Port |
| 1x Front-Panel USB 2.0 Type-A Port | |
| 1x 3.5mm Combination Audio Jack | |
| Motherboard Support | Supports ATX, Micro-ATX, Mini-ITX Motherboards |
| Expansion Slots | 7x PCI Slots |
| Drive Bays | 2x 2.5″ HDD/SSD Drive Bay (Behind motherboard tray) |
| 1x 2.5″/3.5″ Combo Drive Bay (Removable) | |
| 1x 3.5″ Drive Bay (Removable) | |
| PSU Support | ATX |
| Dimensions | 416 x 477 x 210 mm (D x H x W) |
| Weight | 5.25kg |
| Pre-Installed Fans | |
| Front | 3x DeepCool 120mm Blue LED Fans |
| Top | N/A |
| Rear | 1x DeepCool 120mm Blue LED Fan |
| Fan Support | |
| Front | 3x 120mm Fans or 2x 140mm Fans |
| Top | 2x 120mm Fans or 2x 140mm Fans |
| Rear | 1x 120mm Fan |
| Radiator Support | |
| Front | 120/140/240/280/360mm Radiator |
| Top | 120/240mm Radiator |
| Rear | 120mm Radiator |
| Clearance | |
| CPU Cooler Height Limitation | 163mm |
| GPU Length Limitation | 370mm |
| Cable Management | Yes |
| PSU Length Limit | Up to 170mm (with drive cage installed) |
| General | |
| Dust Filters | Yes, 1x Top magnetic dust filter |
| Chassis Lighting | N/A |
| Warranty Information | |
| Warranty | 2 Year Warranty |
