Description
Part numberDP-FRGB-RF120-5C-M

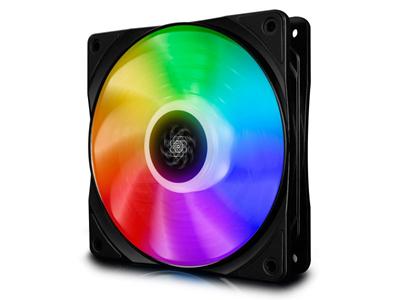

Customizable Addressable RGB LED Lighting
Utilize 12pcs of independently programmable RGB LED lights, CF120 provides full lighting for your build, achieving magical lighting effects with MB controls include 3 dynamic modes(waves, cycles and breathing) and 3 monochrome modes (constant light, breathing and meteor), up to 8 different colors to choose from.
Synchronized Control via 5V A-RGB Header on MB
Can be easily controlled by MB through 5V A-RGB Header, no additional controller needed, and can synchronize with other A-RGB devices
PWM Intelligent Control
Fan speed can be intelligently controlled by MB in accordance with temperature
SPECIFICATIONS |
|
| Brand | DeepCool |
| Series | Case Fans |
| Model | DP-FA-RGB-CF120-1 |
| Fan Dimensions | 120 × 120 × 25mm (L x W x D) |
| Fan Speed | 500 – 1500RPM ±10% |
| Fan Airflow | 56.5 CFM |
| Fan Air Pressure | 1.63 mmH20 |
| Fan Noise | ≤ 27 dBA |
| Fan Connector | 4-pin PWM |
| Bearing Type | Fluid Dynamic Bearing |
| Fan Rated Voltage | 12VDC |
| Fan Rated Current | 0.11A |
| Fan Power Consumption | 1.32W |
| RGB | |
| LED Type | Addressable RGB LED |
| LED Connector | 3pin ( 5V-D-G) |
| LED Rated Voltage | 12VDC |
| LED Rated Current | 0.48A |
| LED Power Consumption | 2.4W (per fan) |
| General | |
| Compatibility | Requires 3-Pin 5V ARGB Header |
| Supports ASUS Aura, Razer Chroma, Gigabyte RGB Fusion | |
| Supports MSI Mystic Light, ASRock Polychrome | |
| Colour | Black |
| Box Contents | 1x Screw Sets |
| RGB Splitter Cable | |
| Warranty Information | |
| Warranty | 2 Year Limited Warranty |
