Description
Part numberR-CG560-BKAAE4-G-1
AIRFLOW FOCUSED

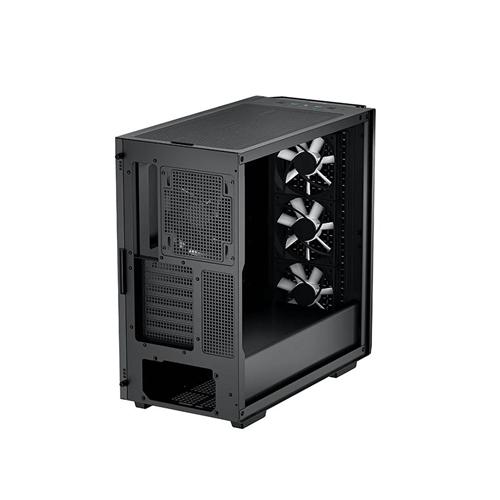

The DeepCool CG560 Mid-Tower Case combines abundant airflow and generous cooling capacity in an updated modern design that makes system building a breeze with four pre-installed fans.
Accelerated Airflow
READY, SET, GO!
Start your build right with three pre-installed 120mm ARGB fans in front and one 140mm fan in the rear for enhanced cooling performance. Keep your components cool with increased air intake through an optimized front panel for maximum ventilation.

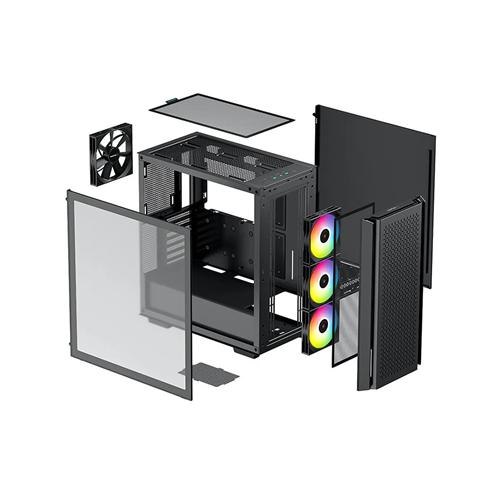

Easy Access Side Panels
DURABLE TEMPERED GLASS
Quickly get to your internal components with simple slide and latch side panels and a solid tempered glass window to highlight your system.
Compatibility at it’s Finest
SPACE FOR YOUR COMPONENTS
Maximum CPU Cooler Height: 175mm
Maximum GPU Length: 380mm
Maximum PSU Length: 170mm
Expansive Storage Options
VERSATILE SPACE
Install up to 2x 2.5” SSDs directly on the backplate and 2x 3.5” HDDs underneath the shroud for ample storage discreetly tucked away.
Front I/O Panel
SUPERIOR CONNECTIVITY ACCESS
Along with two USB 3.0 ports and a combination audio/mic jack, the reset button is custom configured to control preset lighting effects on the three pre-installed ARGB fans.
Versatile Cooling Capacity
KEEP YOUR COMPONENTS COOL
Get big cooling potential with support up to 6x 120mm or 5x 140mm case fans, and multiple radiator configurations for 360mm installed in front and 280mm up top.
CASE FANS
6x 120mm
5x 140mm
RADIATOR
1x 360mm | 2x 280mm | 2x 240mm
3x 140mm | 3x 120mm
Simplify your Setup
EVERYTHING YOU NEED
Start your build right with the DeepCool CG560 PC case. Keep your system clean and tidy, thanks to the easy-to-clean magnetic dust filters. Remove and reuse independent PCIe slot baffles, for a simpler setup.
| SPECIFICATIONS | |
| Brand | DeepCool |
| Series | CG560 Series |
| Model | R-CG560-BKAAE4-G-1 |
| Physical Details | |
| Colour | Black |
| Materials | Steel |
| Plastic | |
| Tempered Glass | |
| Side Panel | Clear Tempered Glass Side Panel |
| Front I/O | 2x Front-Panel USB 5Gb/s Type-A Ports |
| 1x 3.5mm Combination Audio Jack | |
| Motherboard Support | Supports E-ATX, ATX, Micro-ATX, Mini-ITX Motherboards |
| Expansion Slots | 7x PCI Slots |
| Drive Bays | 2x 2.5″ HDD/SSD Drive Bays |
| 1x 2.5″ / 3.5″ Combo Drive Bay | |
| 1x 3.5″ Drive Bay | |
| NOTE: 2.5″ Drives mount behind motherboard | |
| PSU Support | ATX |
| Dimensions | 452 × 230 × 470 mm (D x H x W) |
| Weight | 7.0kg |
| Pre-Installed Fans | |
| Front | 3x DeepCool 120mm ARGB Fans |
| Top | N/A |
| Rear | 1x DeepCool 120mm |
| Fan Support | |
| Front | 3x 120mm Fans or 2x 140mm Fans |
| Top | 2x 120mm Fans or 2x 140mm Fans |
| Rear | 1x 120mm Fan or 1x 140mm Fan |
| Radiator Support | |
| Front | 120 / 140 / 240 / 280 / 360mm Radiator |
| Top | 120 / 140 / 240 / 280mm Radiator |
| Rear | 120 / 140mm Radiator |
| Clearance | |
| CPU Cooler Height Limitation | 175mm |
| GPU Length Limitation | 380mm |
| Cable Management | Yes, with rubber grommets |
| PSU Length Limit | Up to 170mm |
| General | |
| Dust Filters | Yes, Front, Top, PSU dust filters |
| Chassis Lighting | RGB control button |
| RGB Fans support 5V ARGB headers for ASUS Aura, Gigabyte RGB Fusion, MSI Mystic Light, ASRock Polychrome | |
| Warranty Information | |
| Warranty | 2 Year Limited Warranty |
