Description
ModelR-CG580-BKADA4-G-2

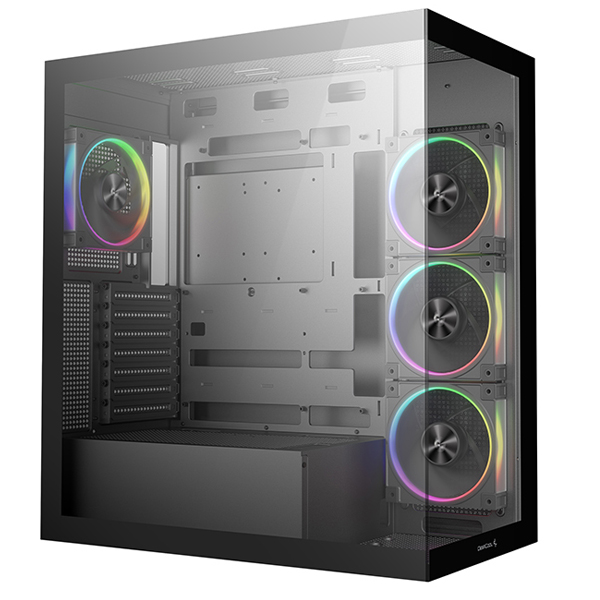

Show off your build with a true “fishtank” look. The CG580-4F V2 uses a no A-pillar panoramic glass design for a clean 270° view, and comes pre-loaded with 4 ARGB PWM fans (three 120 mm reverse-flow on the side + one 120 mm rear) for tidy thermals out of the box. It supports 360 mm radiators on the top or side, long GPUs, and tall air coolers, plus modern I/O with USB-C on the top panel. Tool-less magnetic filters and generous cable space make the build and upkeep easy.
Key Features
-
Panoramic glass: no A-pillar, ~270° component view.
-
Pre-installed cooling: 4× 120 mm ARGB PWM (3× side, 1× rear).
-
Radiators up to 360 mm: mount top or side; rear up to 140 mm.
-
GPU clearance: up to 410 mm (or 262 mm with side-mounted 360).
-
CPU cooler height: up to 176 mm.
-
PSU support: ATX PS2 up to 210 mm.
-
Modern I/O: USB-C, dual USB-A 3.0, combo audio.
-
Dust management: magnetic filters (top/bottom/side).
Specifications
| Spec | Details |
|---|---|
| Model | CG580-4F V2 |
| Case type | ATX mid-tower, single-chamber panoramic glass |
| Dimensions (L×W×H) | 437 × 235 × 501 mm |
| Net weight | ~8.8 kg (typical listing) |
| Materials | SGCC steel, tempered glass, ABS |
| Motherboard support | Mini-ITX / Micro-ATX / ATX |
| Expansion slots | 7 |
| Drive bays | 2 × 3.5″, 2 × 2.5″ |
| Front/top I/O | 2 × USB 3.0, 1 × USB-C, 1 × combo audio |
| Pre-installed fans | Side: 3 × 120 mm ARGB PWM · Rear: 1 × 120 mm ARGB PWM |
| Fan support | Top: 3 × 120 / 2 × 140 · Side: 3 × 120 · Rear: 1 × 120/140 · Bottom: 1 × 120 · PSU shroud: 2 × 120 |
| Radiator support | Top: 120/140/240/280/360 · Side: 120/240/360 · Rear: 120/140 |
| CPU cooler max height | 176 mm |
| GPU max length | 410 mm ( 262 mm with 360 mm side rad + fans ) |
| PSU support | ATX PS2, max 210 mm |
| Lighting | ARGB button (case) + motherboard sync |
| Part number | R-CG580-BKADA4-G-2 |
| Warranty | 1 Year |
