Description
Part numberR-CH510-WHNNE1-G-1
SPACIOUS MID-TOWER CASE

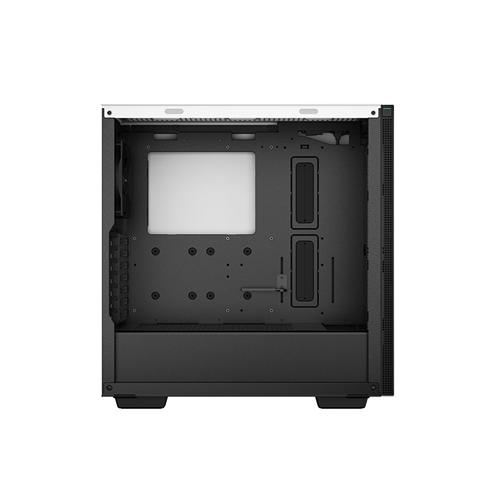

The DeepCool CH510 is a sleek and minimalistic mid-tower ATX case with great component compatibility and extensive cooling capacity support for a truly flexible build experience.
Simply Streamlined
SAFETY LOCK FEATURE
A magnetic tempered glass side panel offers the most convenient way to mount glass panels that includes an optional safety lock for extra security.
Versatile Cooling Capacity
KEEP YOUR COMPONENTS COOL
Install up to a 360mm radiator either on top or in front for water cooling setups and support up to 9x 120mm or 5x 140mm cooling fans for proper airflow ventilation that also reaches your GPU.
CASE FANS
9 x 120mm
CASE FANS
5 x 140mm
A Complete Build Experience
CLEAN AND SLEEK DESIGN
The CH510 is an ideal case for any level builder needing a spacious interior and robust features designed for the modern PC gamer.
The Support you Need
GPU SUPPORT BRACKET
The built-in GPU support bracket ensures that your graphics card never has to sag.
HEADSET HOLDER
A convenient headset holder can be pulled out from the front panel to help you organize.
DUST FILTERS
Dedicated dust-filters help keep your system clean.
RUBBER GROMMETS
High quality rubber grommets and ample cable space helps manage clutter.
PSU AIRFLOW
The steel side panel features ventilation for airflow when using PSU shroud fans.
Easy Access Side Panels
EXPAND YOUR COOLING
Quickly get to your internal components with a simple design with side vents allowing more air to flow in and out of the chassis.
Compatibility at it’s Finest
WIDE AND SPACIOUS INTERIOR
Maximize potential with flexible configurations that meet the needs of any system setup. The CH510 provides ample space without being too bulky.
CPU Cooler height up to: 175mm
Space for large GPUs: 380mm
Front I/O Panel
SUPERIOR CONNECTIVITY ACCESS
A standard 2x USB 3.0 sit conveniently at the top for quick-access and features a modular design.
| SPECIFICATIONS | |
| Model | R-CH510-WHNNE1-G-1 |
| Colour | White |
| Lighting | None |
| Materials | ABS, SPCC, Tempered Glass |
| Dimensions | 435mm x 230mm x 471mm |
| Form Factor | Mid Tower |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX, E-ATX |
| Front I/O | 2 x USB 3.0 |
| 1 x Headphone Out/Mic In | |
| 1 x Power Button | |
| 1 x Reset Button | |
| Side Panel | Tempered Glass |
| Drive Bays | 5.25″: 0 |
| 3.5″/2.5″ Combo: 0 | |
| 3.5″: 2 | |
| 2.5″: 2 + 1 | |
| Expansion Slots | 7 |
| Fan Support | Front: 3 x 120mm / 2 x 140mm |
| Top: 3 x 120mm / 2 x 140mm | |
| Back: 1 x 120mm / 1 x 140mm (1 x 120mm fan included) | |
| Bottom: None | |
| Side: None | |
| Radiator Support | Front: Up to 360mm / 280mm / 240mm / 140mm / 120mm |
| Top: Up to 360mm / 280mm / 240mm / 140mm / 120mm | |
| Back: Up to 140mm / 120mm | |
| Bottom: None | |
| Side: None | |
| Clearances | CPU Cooler: 175mm |
| GPU Length: 380mm | |
| PSU Length: 170mm | |
| Weight | 7.2 kg |
