Description
Part numberR-LX750-BKDSNMP-G-1

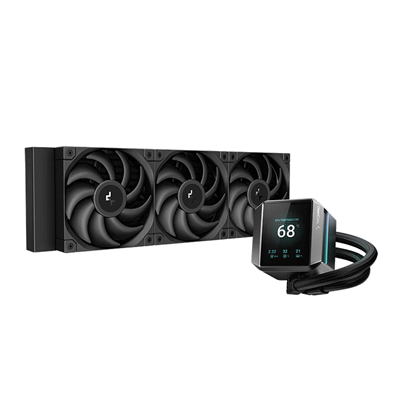

VISUALISING YOUR IMAGINATION
The MYSTIQUE series is DeepCool’s new line of liquid coolers with highly sought-after customisable LCD screens. Bring your creative style to life with customised images and animated GIFs on the brilliant 2.8″ IPS TFT LCD screen! The pump has also been upgraded and optimised to provide better cooling than ever before.
360mm Radiator Size
Intel LGA Socket1 700/1200/1151/1150/1155
AMD Socket AM5/AM4
Magnificently Sharp 2.8″ LCD
GYROSCOPES ARE ALLOWED WITH SCREEN ROTATION
Customise the large 2.8″ TFT screen with your personalised content. The screen has a very sharp 640×480 pixel resolution and displays 16.7M colours brilliantly. The orientation of the screen will automatically adjust as the MYSTIQUE 360 utilises built-in gyroscopic sensors.
DeepCreative: The Control Center
INNOVATIVE DESIGN
Bring all of the great features of the Mystique coolers alive in DeepCreative. Through this comprehensive application, you can view real-time statistics of your system, look up system details, and have full access to compatible devices. It is here that you can choose to have the RGB accents synced to your motherboard’s ARGB controller or use the thermal colour warning system. The software will get rolling updates, so expect expanding features in the near future.
SPECIFIC MONITORING OPTIONS
Choose between CPU Frequency, Time, Pump Speed, CPU Fan + Pump Speed, and Temperature. There are a few options for the sub-monitoring area, where you can choose between Voltage, System Monitoring, and Core Data.
CUSTOMISE THE DISPLAY SCREEN
MEDIA mode is where custom pictures and animated GIFs can be uploaded. You can also set the ARGB accents to sync with the edges of the display in this mode as well.
CPU FREQUENCY AND TEMPERATURE
In RECORDING mode, the CPU Frequency and Temperature will be displayed in two separate line charts and can be recorded for a maximum of 7 minutes.
Part number5th Generation Pump
QUIET DESIGN
Built on DeepCool’s optimised 5th generation high-performance water pump, the MYSTIQUE 360 brings cooling modern power-hungry CPUs to a new level.
The optimised pump design features an efficient 3-phase, 6-slot, 4-pole motor that rotates up to an astounding 3400 RPM, while staying under a quiet 21 dB(A).
New, Built for a High Performance

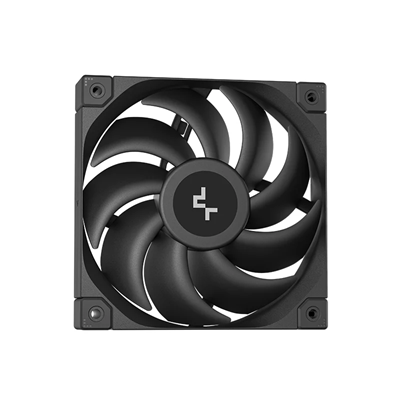

INCLUDED FT12 SE FANS
The MYSTIQUE 360 will include three high-performing black FT12 SE PWM fans. These fans are made of durable PBT material and provide excellent pressure and airflow.
They also utilize the tried-and-true FDB bearings that are considered the gold standard in our industry. The fan motor will utilize a 3-phase 6-slot 4-pole design that will provide smoother operation than the average case fan.
Redesigned for Better Heat Transfer

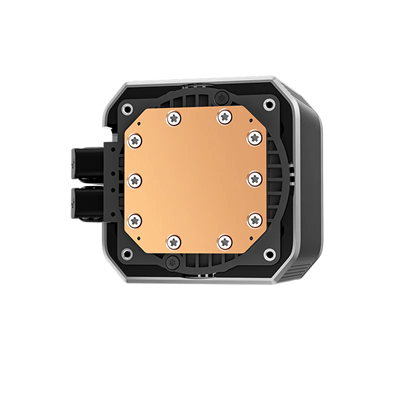

IMPROVED COLDPLATE
The MYSTIQUE 360 gets a redesigned coldplate, optimised for better heat transfer and 0.1mm intensive flow channels.
The layout has been placed over CPU hotspots, and a precise liquid splitter makes sure that everything is flowing efficiently.
Simplified Installation
BUILD SAFELY
The included mounting hardware provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms.
Everything needed to mount the MYSTIQUE 360 to the latest mainstream CPUs is included in the box, so you are ready to go.
Anti-leak Technology
QUIET DESIGN
The MYSTIQUE liquid coolers feature DeepCool’s patented Anti-Leak Technology.
The internal valve regulates pressure and will purge it when internal pressure exceeds atmospheric pressure; this leads to a longer useful life while reducing the possibility of leaks.
Specifications:
| Application For | |
| Intel | LGA1700/1200/1151/1150/1155 |
| AMD | AM4/AM5 |
| Technical Spec | |
| Net Weight | 1847 g |

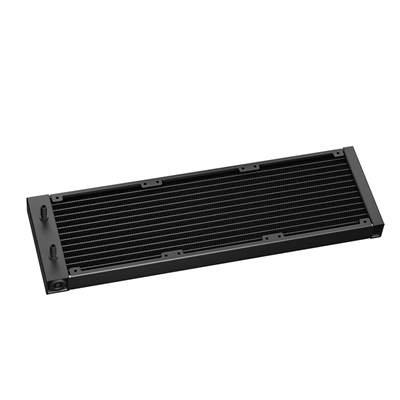

| Radiator Dimensions | (L)402x(W)120x(H)27mm |
| Radiator Material | Aluminum |
| Tube Length | 410mm |
| Pump Dimensions | (L)93x(W)77x(H)66mm |
| Pump Speed | 3400 RPM±10% |
| Pump Connector | 3-Pin |
| Pump Rated Voltage | 12 VDC |
| Pump Rated Current | 0.35 A |
| Pump Power Consumption | 4.2W |
| Fan Dimensions | (L)120x(W)120x(H)25mm |
| Fan Speed | 500~2150 RPM±10% |
| Fan Airflow | 72.45 CFM |
| Fan Air Pressure | 4.32 mmAq |
| Fan Noise | ≤36.49 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Fluid Dynamic Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.3A |
| Fan Power Consumption | 3.6W |
| LED Type | Addressable RGB LED |
| LED Connector | 3-pin(+5V-D-G) |
| LED Rated Voltage | 5 VDC |
| LED Power Consumption | 2.45 W (PUMP) |
| Display Specification | 2.83 inch 480×640 TFT LCD |
| P/N | R-LX750-BKDSNMP-G-1 |
| Warranty | 5 Year |
