Description
PF500
The DeepCool PF Series Power Supply Unit offers safe and stable power performance with reliable 80 PLUS Standard efficiency and affordable pricing.
TO HIGHER STANDARDS
Certified for 80 PLUS 230V EU Standard efficiency that ensures 85% efficiency under typical loading of 50%. Better efficiency translates into lower energy waste and lower temperatures for more cost savings.
SILENT HYDRAULIC BEARING FAN
Optimally balanced for low-noise performance, the 120mm fluid bearing fan improves overall life expectancy and reduces friction and vibration.

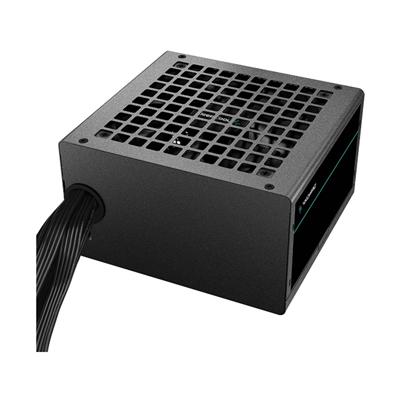

PF SERIES 80 PLUS STANDARD POWER SUPPLY
FLAT BLACK CABLES
Stealthy and flexible, the fixed flat black cables are easy to maneuver for cable management while also taking up less space in your system.
RELIABLE PROTECTION
Shield against potential risk and damage with overpower, over voltage, and short circuit power protection.
Over Power Protection
Over Voltage Protection
Short Circuit Protection
| SPECIFICATIONS | |
| Brand | DeepCool |
| Series | PF Power Supply Series |
| Model | R-PF500D-HA0B-EU |
| ATX Version | ATX12V 2.4 |
| Modularity | Non-Modular |
| Continuous Power | 500W |
| Power Good Signal | 100 – 500ms |
| Hold Up Time | >16ms (75% loading) |
| Expected Lifetime | Up to 100,000 Hours |
| Power | |
| Rated Efficiency | ≥ 85% efficienty with typical load (50% Loading) |
| Certifications | 80 Plus 230V EU White Certified |
| Protections | OPP/OVP/SCP/UVP |
| Multi-GPU Ready | Yes |
| Cables | 1x 24-Pin ATX 12V Cable (550mm) |
| 1x 8-Pin (4 4) EPS 12V CPU Cables (610mm) | |
| 1x 8-Pin (6 2) PCIe Twin-Head Cable (510 150mm) | |
| 6x SATA Connectors | |
| 2x Molex Connectors | |
| Fan | |
| Fan Size | 120mm |
| Bearing Technology | Fluid Hydraulic Bearing |
| Zero RPM Quiet Mode | N/A |
| General | |
| Form Factor | ATX |
| Dimensions | 140 x 150 x 86mm (D x W x H) |
| Weight | 1.7kg |
| Colour | Black |
| Warranty Information | |
| Warranty | 3 Year Warranty |
