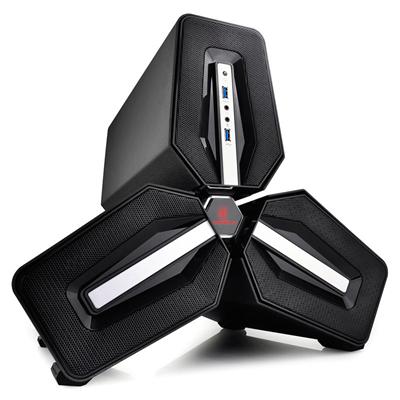

DEEPCOOL TRISTELLAR MINI-ITX CHASSIS

Description

Features:
Three independent cabins respectively designed for the Motherboard, VGA Card and PSU/HDD, providing the penultimate cooling solution for the PC
Support vertical installation of 1x ultra-long (max 320mm) and ultra-wide (3 PCI Slots) VGA Card
Aluminum casing and striking paint job provide enhanced cooling performance & visuals while greatly reducing the weight of the case
5x hot plugging (SATA) ports (2x 3.5″ HDD and 3x 2.5″ SSD)
2x USB3.0 ports
Support tray-loaded optical disk drive (ODD) installation
1x pre-installed 90mm black fan in the VGA cabin
Support water cooling system installation (120mm radiator)
Support standard ATX PSU (max dimension: 150 x 160 x 86mm)
Fully black interior
Equipped with PSU dust filter
Support cable management

Specifications:
Materials SPCC: (Panel thickness: 0.6mm; Cabin Cover thickness: 2mm)
Product Dimension: L395xW435xH388mm
Package Dimension: L540xW465xH485mm

Weight:
Net.: 9.18KG
Gross: 12.16KG

5.25″ Drive Bays: tray-load Optical Disk Driver
3.5″ Drive Bays: 2
(all tool-free installation with hot plugging port)
2.5″ Drive Bays: 3
(all tool-free installation with hot plugging port)
I/O Panel: 2×USB3.0/Audio×1/Mic×1
Expansion Slots: 3 Slots (1 way)

Cooling Fans Included:
1×90mm Black fan in the VGA cabin
Optional: 1×120mm fan in the mainboard cabin if liquid radiator not installed. (this fan should blow outward to ensure a good cooling effect)

Power Supply Type: ATX PS2
CPU Cooler Compatibility: 85mm height
VGA Compatibility: 320mm
Motherboards: MINI-ITX
