Description
ModelPPA5008106

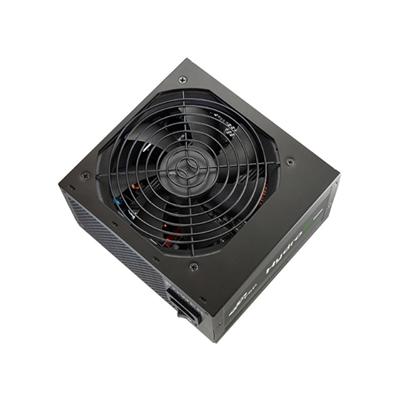

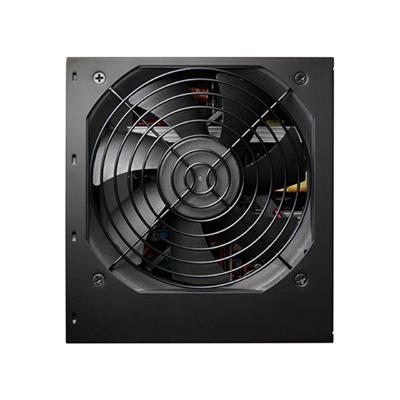

The new Hydro K Pro PSUs comply fully with ATX12 v2.52 standard and the latest safety 62368 regulation as well and comes with high-grade ribbon cables, give your PC a polished look. The Hydro K Pro series is designed as a powerful single +12V rail that continually delivers maximum performance for the most demanding graphic cards, while FSP’s custom DC-DC design provides safety and power efficiency. Besides, with a 230V 80 Plus® rating, delivers over 88% high efficiency and low noise levels thanks to its hydraulic bearing fan design, where a large 120mm fan takes care of cooling duties when required, making it excellent for situations that are sensitive to size and noise.
FEATURES:
- Intel latest CPU ready
- Global safety approved
- Active PFC ≥ 0.9
- High efficiency ≧ 88%
- Powerful +12V single rail design
- Hold up time ≥ 17ms @ 80% load
- Double layer EMI filter
- 120mm hydraulic bearing (HYB) fan
- +5V & 3.3V DC to DC module design
- All black cables
- Complete protections: OCP/OVP/OPP/SCP
| SPECIFICATIONS | |
| Brand | FSP |
| Series | Hydro Pro K |
| Model | PPA5008106 (HP2-500) |
| Maximum Power | 500W |
| 80 Plus Efficiency | 80 Plus Bronze |
| > 88% Efficiency | |
| Colour | Black |
| Fan | 120mm Hydraulic Bearing (HYB) Fan |
| Modular Design | Non-Modular |
| Connectors | |
| 24 Pin ATX | 1x ATX 20 4 |
| EPS (CPU) | 2x 4 4 Pin |
| PCIe | 2x 6 2 Pin PCIe |
| SATA | 5x SATA Power |
| Four-Pin Peripheral | 2x 4-Pin Molex |
| Floppy | 1x Floppy |
| Input | |
| Input Voltage | 200-240V |
| AC Input Current | 4A |
| Input Frequency Range | 50-60Hz |
| Output | |
| Rail | +3.3V, +5V, +12V, -12V, +5Vsb |
| Max Output | 20A, 20A, 41A, 0.3A, 2.5A |
| General | |
| PFC | Active PFC |
| Protection | OCP, OVP, SCP, OPP |
| Features | Intel latest CPU Ready |
| Global Safety Approved | |
| Powerful 12V Single Rail Design | |
| Hold up Time ≥ 17ms @ 80% Load | |
| Double Layer EMI Filter | |
| 5V & 3.3V DC to DC Module Design | |
| All Black Cables | |
| Dimensions | 150mm x 140mm x 86mm |
| Weight | 1.740Kg |
| Warranty Information | |
| Warranty | 5 Year Warranty |
