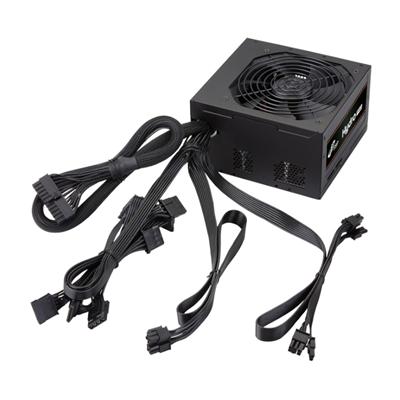

Description
ModelPPA8000903
Compared to the previous model, the HYDRO Pro series is IEC62368 certified to ensure your own safety. The 80+ Bronze also serves as an assurance for the high stable performance. HYDRO PRO series is absolutely your ideal choice for a gaming PC. The mat black coating and flat cables give your system a superior look and are more straightforward than so many entry-level power supplies.
HYDRO PRO series, 80 PLUS® 230V EU bronze certified, saves energy through its high efficiency up to 85% and excesses the standard through its high efficiency up to 88%. With a 12V SR circuit and the DC to DC structure, HYDRO PRO series ensure outstanding conversion efficiency and provides stable output voltage. Green Power! The total AC power consumption of the completed system is less than 5Vsb rail to support the new EU Regulation ErP 2013 for modern-day systems.
FEATURES:
- Complies with ATX12 v2.52 & EPS12 V2.92
- Efficiency ≥ 88% @ typical Load
- Active PFC ≥ 0.9
- Hold up time > 17ms @ 80% Load
- +5V & 3.3V DC to DC module design
- +12V Single-Rail Design
- 120mm Silent & long life Fan
- Complete Protections: OCP/OVP/OPP/SCP
| SPECIFICATIONS | |
| Brand | FSP |
| Series | Hydro Pro 800W |
| Model | PPA8000903 (HP2-800) |
| Maximum Power | 800W |
| 80 Plus Efficiency | 80 Plus Bronze |
| High efficiency > 88% | |
| Colour | Black |
| Fan | 1x 120mm Sleeve Bearing Fan |
| Modular Design | Non Modular |
| Connectors | |
| 24 Pin ATX | 1x 20 4-Pin ATX |
| EPS (CPU) | 2x 4 4-Pin |
| PCIe | 4x 6 2-Pin |
| SATA | 8x SATA Power |
| Four-Pin Peripheral | 2x Molex |
| Floppy | 1x Floppy |
| Input | |
| Input Voltage | 200V – 240V |
| AC Input | 4.5A |
| Input Frequency Range | 50Hz – 60Hz |
| Output | |
| Rail | +3.3V, +5V, +12V, -12V, +5Vsb |
| Max Output | 20A, 20A, 66.66A, 0.3A, 2.5A |
| General | |
| PFC | Active PFC |
| Protection | OCP, OVP, OPP, SCP |
| Features | Hold up time > 17ms @ 80% Load |
| Powerful 12V Single Rail Design | |
| Compliance with Latest ATX 12 v2.52 & EPS 12 V2.92 Standards | |
| +5V & 3.3V DC to DC module design | |
| Intelligent Fan Speed Control | |
| Dimensions | 150mm x 140mm x 86mm |
| Weight | 1.472 |
| Warranty Information | |
| Warranty | 5 Year Warranty |
