R1671.00 Incl. Vat
(Displayed price above applies to EFT / Bank Transfer payments only.)
KEY FEATURES:
– ATX 3.1 Compatible Power Supply
– Fully Modular Design
– PCIe 5.1 12V-2×6 Ready
– Rated Power: 750W
– PSU Length: 140mm
– 80 Plus Gold Certification
– Cybenetics ETA Platinum 230V Rated (24PS2474A)
– 105°C Japanese Bulk Capacitor
– 120mm Hydraulic Bearing Fan
– OCP, OVP, SCP, OPP, OTP Protections
– LLC Resonant-Converter Topology
– High-Amperage +12V Rail
– ATX 3.1 Hold Up Time Compliant
– Compact Design
– 10 Year Warranty
Built to handle the demanding power requirements of tomorrow, these PSUs support total power excursion as per ATX 3.1 and PCIe Gen 5.1 specifications, ensuring they deliver peak performance for future hardware upgrades. Certified with 80 PLUS® Gold efficiency and achieving platinum-level efficiency at typical loads, these power supplies minimise power loss, heat, and noise, offering a cooler and quieter operation.
The advanced LLC resonant-converter topology with synchronous rectification reduces switching losses and keeps the output voltage stable, even under heavy loads, maximising overall system efficiency. The +5V and 3.3V DC to DC circuit design ensures consistent voltage and system stability, while premium 105°C Japanese bulk capacitors provide top-tier reliability and longevity, making them the ideal choice for high-performance PCs. Whether you’re a gamer or a power user, these PSUs deliver lasting power and performance you can count on.
SPECIFICATIONS |
|
| Brand | FSP |
| Series | VITA GM Series |
| Model | VITA-750GM |
| ATX Version | ATX12V 3.1 |
| Modularity | Fully Modular |
| Continuous Power | 750W |
| PFC | Active ≧ 0.9 |
| Certifications | 80 Plus Gold Certified |
| Cybenetics ETA Platinum 230V Certified (24PS2474A) | |
| Cybenetics LAMBDA “A%2B ” Noise Rated | |
| Protections | OCP, OVP, UVP, OPP, SCP, OTP |
| Multi-GPU Ready | Yes |

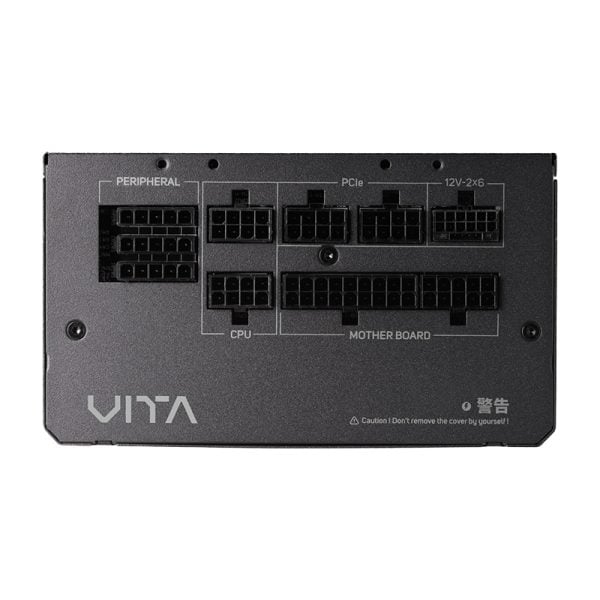

| Cables | 1x 24-Pin ATX 12V Cable (600mm) |
| 2x 8-Pin (4+4) EPS 12V CPU Cables (700mm) | |
| 1x 12V-2×6 600W PCIe 16-pin Cable (700mm) | |
| 2x 8-Pin (6+2) PCIe Twin-Head Cables (650 + 150mm) | |
| 8x SATA Connectors | |
| 4x 4-Pin Molex Connectors | |
| Fan | |
| Fan Size | 120mm |
| Bearing Technology | Hydraulic Bearing |
| Zero RPM Mode | Yes, controlled by system load |
| Output | |
| DC Rails | 3.3V @ 20A (100W combined with 5V) |
| 5V @ 20A (100W combined with 3.3V) | |
| 12V @ 62.5A (750W) | |
| -12V @ 0.3A (3.6W) | |
| 5Vsb @ 3A (15W) | |
| General | |
| Form Factor | ATX |
| Dimensions | 140 x 150 x 86mm (D x W x H) |
| Colour | Black |
| Warranty Information | |
| Warranty | 10 Year Warranty |
| Weight | 2.5 kg |
|---|---|
| PSU Form Factor | |
| PSU Efficiency Rating | |
| PSU Manufacturer | |
| PSU Modularity | |
| PSU Wattage |
