Description
nAddressable RGB allows gamers to customize each LED color. You can personalize the lighting effects with GAINWARD Expertool Utility. The fans Keep stop rotation while you are experiencing the multimedia application or general workload. The fans start rotation while working on heavier loading such as gaming that the GPU temperature surpasses 60°C. The Advanced Fan Blade design increases the stability of fan rotation. With the carves on the blades, the air flow is smoother. So fan vibration and fan noises are much lower.
n
nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn
| SPECIFICATIONS | |
| Brand | Gainward |
| Series | Phantom |

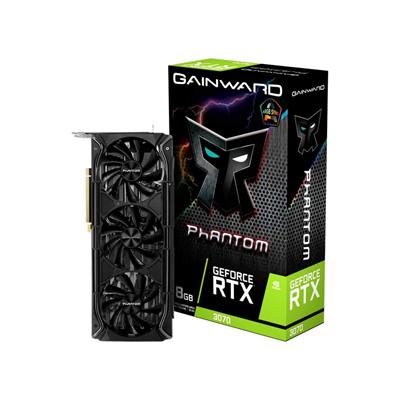

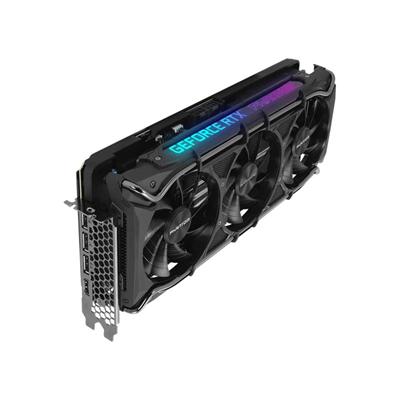

| Model | RTX 3070 Phantom (GW-RTX3070-8GB-PHM ) |
| Chipset | |
| GPU | GeForce RTX 3070 |
| Chipset Manufacturer | NVIDIA |
| Interface | PCI-E 4.0 x16 |
| Base Clock | 1500 MHz |
| Boost Clock | 1725 MHz |
| CUDA Cores | 5888 |
| GPU Architecture | NVIDIA Ampere |
| Low Hash Rate (LHR) Mode | Yes |
| Memory | |
| Effective Memory Clock | 14 Gbps effective |
| Memory Size | 8 GB |
| Memory Interface | 256-bit |
| Memory Type | GDDR6 |
| 3D API | |
| DirectX | Microsoft DirectX 12 Ultimate |
| OpenGL | 4.6 |
| Vulkan | Vulkan RT API |
| Connectivity | |
| Ports | 3x DisplayPort 1.4a |
| 1x HDMI 2.1 | |
| Multi-Monitor Support | 4x Displays |
| Maximum Digital Resolution | 7680 x 4320 |
| HDCP | v2.3 |
| VR Ready | Yes |
| General | |
| SLI Support | N/A |
| Features | Reinforced Fan Blade |
| Two-Ball Bearing | |
| ARGB Lighting | |
| U-Type Heatpipe | |
| Zero RPM Fan | |
| Metal Back Plate | |
| 2nd Gen Ray Tracing Cores | |
| 3rd Gen Tensor Cores | |
| PCI Express Gen 4 | |
| Real-Time Ray Tracing Technology | |
| NVIDIA DLSS | |
| NVIDIA GeForce Experience | |
| NVIDIA Ansel | |
| NVIDIA FreeStyle | |
| NVIDIA ShadowPlay | |
| NVIDIA Highlights | |
| NVIDIA G-SYNC | |
| Game Ready Drivers | |
| NVIDIA Studio Drivers | |
| NVIDIA GPU Boost | |
| NVIDIA Encoder, 7th Generation | |
| NVIDIA Decoder, 5th Generation | |
| Power Requirements | |
| Recommended Power Supply | 650 W |
| Power Consumption | 220 W |
| Power Connector | 2x 8-Pin |
| Physical Aspects | |
| Form Factor | ATX |
| Slot Width | 2.7 Slot |
| Dimensions | 304 x 138 mm |
| Warranty Information | |
| Warranty | 2 Year Warranty |
