Gigabyte AMD Radeon RX 6600 XT GAMING OC 8GB RDNA2 Graphics Card

n
nGreat gaming experiences are created by bending the rules. The all new RDNA powered Radeon RX 6600 series for exceptional performance and High-fidelity gaming. Take control with Radeon RX 6600 series and experience powerful, accelerated gaming customized for you.
n
nThe AMD Radeon™ RX 6600 XT graphics card is designed for the ultimate 1080p gaming experience. Turn up your settings for higher fidelity and boost gaming performance for higher frame rates with ultra-fast response times. Get the power of the highly acclaimed RDNA architecture, the heart of AMD’s advanced 7nm technology process, as well as GDDR6 high-speed memory and PCI® Express 4.0 support, delivering a highly responsive, ultimate 1080p gaming experience.
n
nFeatures
n

• n
  • Powered by AMD RDNA™ 2 Radeon™ RX 6600 XT

n

• • Integrated with 8GB GDDR6 128-bit memory interface

n

• • WINDFORCE 3X Cooling System with alternate spinning fans

n

• • Screen cooling

n

• • Graphene nano lubricant

n

• • RGB Fusion 2.0

n

• • Protection metal back plate

n

nCore Clock
n

• n
  • Boost Clock: Up to 2593 MHz (Reference card: 2589 MHz)

n

• • Game Clock*: Up to 2382 MHz (Reference card: 2359 MHz)

n

n* ‘Game Clock’ is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
n
n
n
n

n
n
n
nWINDFORCE 3X Cooling System
n
nThe WINDFORCE 3X cooling system features 3x 80mm unique blade fans, alternate spinning, 6 composite copper heat pipes, large copper plate direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.
n
nAlternate Spinning
n
nAlternate Spinning can reduce the turbulence of adjacent fans and increase air pressure. The GIGABYTE “Alternate Spinning” is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
n
nSmooth Airflow
n
nGIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
n
n3D Active Fan
n
nThe 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
n
nUnique Blade Fan
n
nThe airflow is split by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
n
nGraphene Nano Lubricant
n
nGraphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.
n
nScreen Cooling
n
nExtended heatsink design allows air flow to pass through, providing better heat dissipation.
n
nHeatpipe Direct Touch
n
nThe shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.
n
nRGB Fusion 2.0
n
nWith 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.
n
nLearn More
n

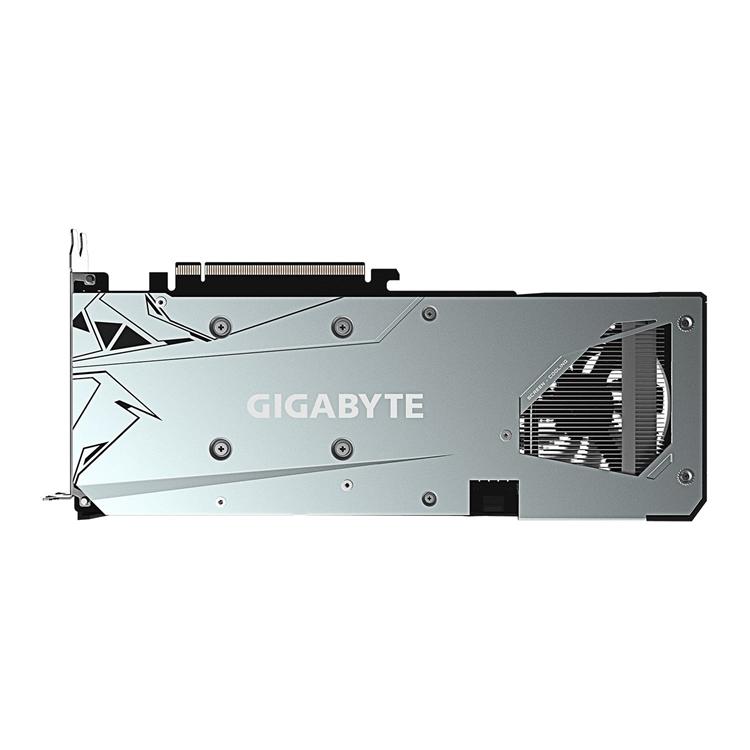

nProtection Metal Back Plate
n
nThe metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
n
nPower Indicator
n
nWhen experiencing any power supply abnormality, the indicator will alert gamers by flashing light.
n
nExtreme Durability and Overclocking
n
nThe graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
n
nFriendly PCB Design
n
nFully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
n
nAORUS Engine
n
nThe cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.
n
nDownload
n

Additional Information:

nVisit the Manufacturer Web Page for Full Details
n
n

n

• n
  • PCI Express 4.0 slot

n

• • 1x 8-pin PCI-E power connector

n

• • 500 Watt or greater power supply

n

• • OS Support: Windows® 10 – 64-Bit Edition, Windows® 7 – 64-Bit Edition, Ubuntu x86 64-Bit or Linux x86_64

n

n

nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

Product	Radeon™ RX 6600 XT GAMING OC PCI-E Graphics Card
Chipset	Radeon™ RX 6600 XT
Stream Processors	2048
Engine Clock	Boost Clock: Up to 2,593 MHz (Reference card: 2,589 MHz) nGame Clock*: Up to 2,382 MHz (Reference card: 2,359 MHz)
Memory	8GB GDDR6 VRAM
Memory Clock	16 Gbps Effective
Memory Interface	128-bit
Memory Bandwidth	256 GB/s
Bus Interface	PCI Express 4.0 x8
Multi-GPU Support	N/A
Lighting	RGB Fusion 2.0
Cooler	WINDFORCE 3X Active Cooling System w/ Triple Fans Cooler
Resolution & Refresh Rate	Digital: 7,680 x 4,320
Display Support	Up to 4 displays
Connectors
DVI	N/A
HDMI	2x HDMI 2.1
DisplayPort	2x DisplayPort 1.4a
USB	N/A
Video Out	HDMI
HDCP Support	Yes 2.2
DirectX Support	12
OpenGL Support	4.6
Power Consumption	N/A
Power Connectors	1 x 8-pin Power Connector
Dimensions	282 x 115 x 50 mm
Weight	N/A

n

1. n
   1. Game Clock is the expected GPU Clock speed when running typical gaming apps, set to typical TGP (Total Graphics Power). Your actual individual game clock results may vary higher or lower.
