Gigabyte AMD Radeon RX 6600 XT GAMING OC PRO 8GB RDNA2 Graphics Card

n

The Gigabyte Radeon™ RX6600 XT GAMING OC PRO 8GB Graphics Card

n

• n
  • Powered by AMD RDNA™ 2 Radeon™ RX 6600 XT

n

• • Integrated with 8GB GDDR6 128-bit memory interface

n

• • WINDFORCE 3X Cooling System with alternate spinning fans

n

• • Screen cooling

n

• • Graphene nano lubricant

n

• • RGB Fusion 2.0

n

• • Protection metal back plate

n

• • Powered by AMD RDNA™2 Radeon™RX6600 XT

n

• • DirectX® 12 Ultimate

n

• • 7nm GPU

n

• • GDDR6 Memory

n

• • PCI® Express 4.0 Support

n

• • AMD FreeSync™ Technology*

n

• • DisplayPort™ 1.4 with DSC

n

• • HDMI™ 2.1

n

• • Radeon™ VR Ready Premium*

n

• • Radeon™ Anti-Lag*

n

• • Radeon™ Software

n

• • Boost Clock* : up to 2607 MHz (Reference card: 2589 MHz)

n

• • Game Clock* : up to 2428 MHz (Reference card: 2359 MHz)

n

n

n
nWINDFORCE 3X COOLING SYSTEM
nThe WINDFORCE 3X cooling system features 3x 80mm unique blade fans, alternate spinning, 5 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.
n

• n
  • UNIQUE FAN BLADE
    nThe airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

n

• • ALTERNATE SPINNING
    nReduce the turbulence of adjacent fans and increase air pressure.

n

• • 3D ACTIVE FAN The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. The LED fan indicator can provide an instant display of fan status.

n

• • GRAPHENE NANO LUBRICANT
    nGraphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter

n

• • SCREEN COOLING
    nExtended heatsink design allows air flow to pass through, providing better heat dissipation.

n

• • HEAT PIPES DIRECT TOUCH
    nThe shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.

n

nRGB FUSION 2.0
nWith 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices. Learn More
n
nPERFORMANCE
nThe Radeon™RX6600 XT has 2048 stream processors, powerful new compute units, and the all new AMD Infinity Cache along with up to 8GB of dedicated GDDR6 memory, delivers ultra-high frame rates and serious levels of 1440p resolution gaming
n

• n
  • PROTECTION METAL BACK PLATE

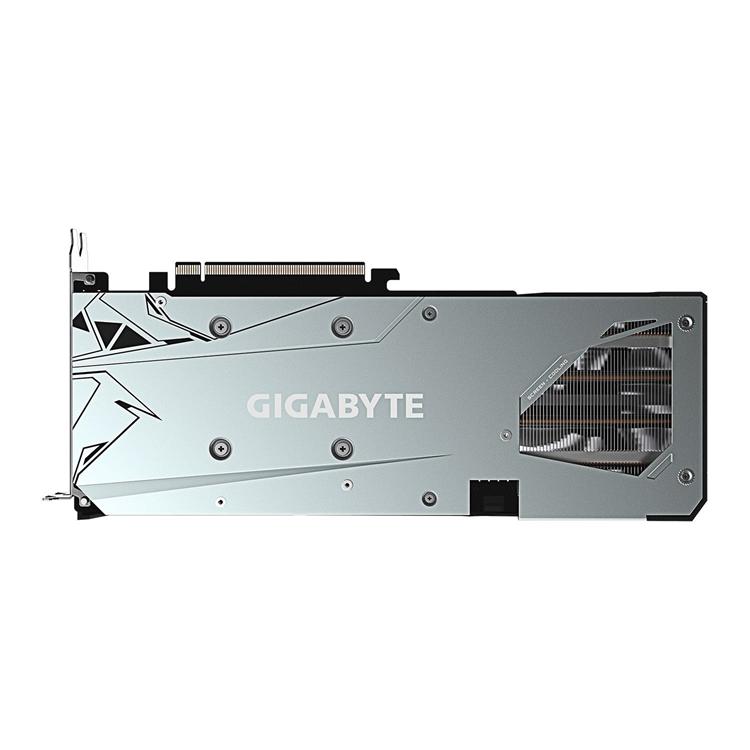

    nThe metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

n

• • POWER INDICATOR
    nWhen experiencing any power supply abnormality, the indicator will alert gamers by flashing light.

n

n

• n
  • EXTREME DURABILITY AND OVERCLOCKING
    nThe graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.

n

• • FRIENDLY PCB DESIGN
    nFully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

n

nAORUS ENGINE
nThe cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.. Download
n
n

n
nAMD FreeSync Technology
nNo stuttering. No tearing. Just gaming. AMD FreeSync™ technology puts an end to choppy gameplay and broken frames with fluid, artifact-free performance at virtually any framerat
n
nAMD Radeon Anti Lag
nMinimize input-lag so you can game like a champion.
n
nAMD Radeon Boost
nDelivers extra performance and responsiveness when you need it most.
n
nAMD Radeon Image Sharpening
nImproves in-game visuals with virtually no impact on performance.
n
n

nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

Make and Model	Gigabyte Radeon™ RX6600 XT GAMING OC PRO 8GB Graphics Card
Part Number	GV-R66XTGAMINGOC PRO-8GD
Color	Black
Graphics Processing Unit	Radeon™ RX6600XT
Interface	PCI Express® Gen 4
Game Clock	up to 2428 MHz (Reference card: 2359 MHz
Boost Clock	up to 2607 MHz (Reference card: 2589 MHz)
Stream Processors	2048
Memory Bus	128 bit
Memory Clock	16000 MHz
Memory Size	8 GB
Memory Bandwidth (GB/sec)	256 GB/s
Memory Type	GDDR6
Thermal Solution	3 Fan
Outputs
Display Port (Ver 1.4)	2
HDMI™ (Native HDMI 2.1)	2
HDCP Support	Yes (2.3)
Digital Maximum Resolution	7680 x 4320
Maximum Display Support	4
Other Features
DirectX Version Support	12 Ultimate
OpenGL Version Support	4.6
Multi-GPU Technology	NVlink/ Crossfire Support
Power Connector	8 Pin*1
Recommended PSU	500W
Dimensions	L=282 W=115 H=50 mm
Weight	N/A
