Description
dual side copper makes it 16% cooler

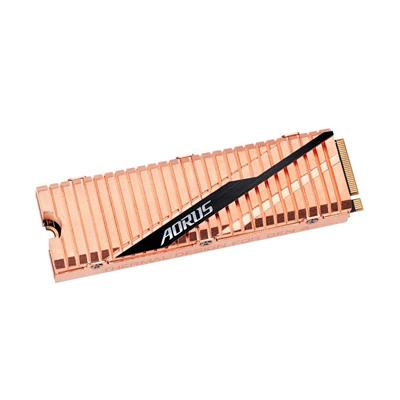

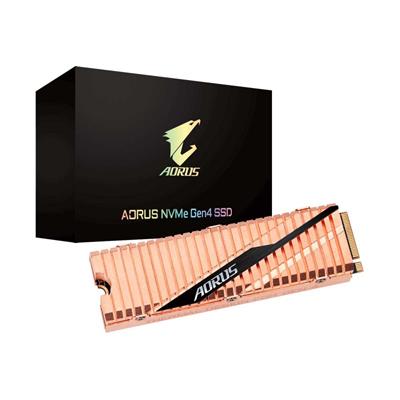

This compact form factor of 2280 also features Toshiba BiCS4 NAND Flash. The new Gigabyte AORUS M.2 PCIe 4.0 x4 NVMe SSD features the world first PCIe 4.0×4 Controller, Phison PS5016-E16 controller, made by 28nm manufacturing technology. AORUS NVMe Gen 4 SSD delivers blazing speeds: up to 5,000 MB/s for sequential read, and up to 2,50000MB/s sequential write for the 500GB SSD. The full body copper heatsink provides a thermal solution for outstanding PCIe 4.0 SSD performance.
| Specifications | |
|---|---|
| Capacity | 500GB |
| Edition | AORUS NVMe Gen4 SSD |
| Form Factor | M.2 (2280) |
| Height | 11.4 mm |
| Interface | PCIe 4.0 (x4) |
| Host Controller Interface | NVMe 1.3 |
| Controller | Phison PS5016-E16 |
| Flash Memory Type | Toshiba 96-Layer 3D TLC NAND Flash |
| Max. Read | 5000 MB/s |
| Max. Write | 2500 MB/s |
| DRAM Cache Memory | 512MB |
| DRAM Cache Memory Type | DDR4 |
| Max. Random Read 4K | 400,000 IOPS |
| Max. Random Write 4K | 550,000 IOPS |
| Latency | N/A |
| Special Features |
|
| Power Consumption (active) | 5.9W Read, 4.5W Write |
| Max. Endurance Rating | |
| MTBF | 1,770,000 Hours |
| Max. Operating Vibration | |
| Max. Non-operating Vibration | |
| Max. Operating Shock | |
| Max. Non-operating Shock | |
| Connectivity | 1 x M.2 (PCIe) |
| OS Support | |
| Bracket | N/A |
| Dimensions | 80.5 x 11.4 x 23.5 mm (WxHxD) |
| Weight | |
| Package Type | Retail |
