Description
n
Part numberAG510K1TB

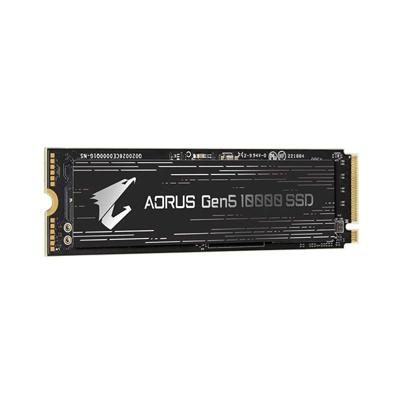

nMaster of Speed AORUS Gen5 10000 SSD
n
n
n
n
n
n
n
n
n
n
n
Power by the PCIe Gen5.0 x4 controller Phison E26 and brand-new 232-layer 3D TLC NAND Flash, AORUS Gen5 10000 SSD delivers top-tier performance: sequential read/write speeds up to 9,500/8,500 MB/s. Aim at PC enthusiasts, gamers, and rendering professionals, AORUS Gen5 10000 gives users faster data transferring and a lower-latency gaming experience.
n
n
-
n
- + PCIe 5.0×4, NVMe 2.0 Interface
- + Sequential Read Speed : up to 9,500MB/s**
- + Sequential Write speed : up to 8,500MB/s**
- + DDR4 DRAM cache
- + 8 CH with 32 CEs
- + Offer with an optional M.2 Thermal Guard XTREME with Nanocarbon Coating
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
The E26 controller is built with the advanced 12nm process, ensuring sufficient computing power. Also, it supports up to 8 NAND Flash channels with 32CE, DDR4 SLC caching and complies with the NVMe 2.0 standard. AORUS Gen5 10000 SSD offers approximately 37% faster in read throughput and up to 37% higher write throughput than PCIe Gen4.0 x4.
n
n
n
n
n
n
n
n
n
n
n
n
n
Leveraging the superior throughput and high-quality combination that 3D TLC NAND provides, AORUS Gen5 10000 SSD brings a better experience in work.
n
n
n
n
n
n
n
n
n
n
n
n
n
n

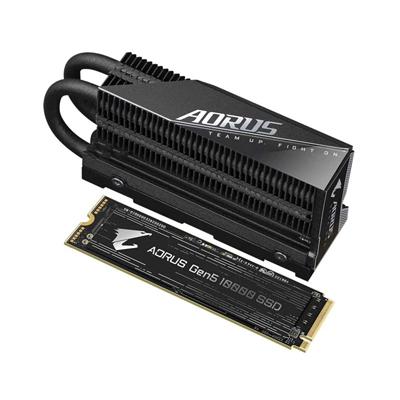

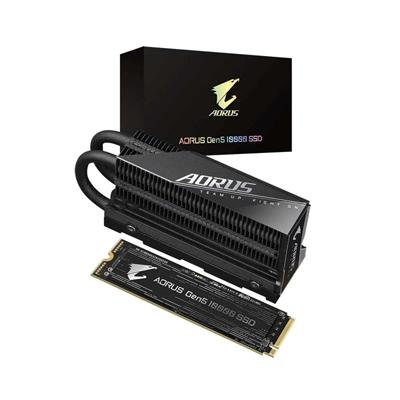

AORUS Gen5 10000 SSD offer with an optional M.2 Thermal Guard XTREME which is made up of two heatpipes and stacked fins with advanced thermal technology Nanocarbon coating for maximum heat dissipation efficiency. Applied with dual side high conductivity thermal pad ensures the heat transfers to the stacked fins. The M.2 Thermal Guard XTREME is the best solution in passive airflow conditions when your personal computer adopts a CPU AIO water cooler.
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
Higher working temperature may cause data loss. The degradation factor of data loss could be a hundred times higher. Compared with regular plated heat spreader, the M.2 Thermal Guard XTREME improves thermal dissipation to keep the highest Seq. read performance. With M.2 Thermal Guard XTREME, the SSD can operate at lower working temperatures to improve data storage reliability. Enjoy smoother & upgraded storage performance any time by utilizing M.2 Thermal Guard XTREME.
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
nGIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.
n
nGIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.
n
-
n
- Unified software platform for all Gigabyte supported products
- Intuitive user interface for an eased experience
- Modularized control components only for installed hardware
- Auto update function to keep system up to date and support future products
n
n
n
n
n
n
|
n
Interface n |
|
n
PCI-Express 5.0 x4, NVMe 2.0 n |
|
n
Form Factor n |
|
n
M.2 2280 n |
|
n
Total Capacity n |
|
n
1000GB n |
|
n
NAND n |
|
n
3D TLC NAND Flash n |
|
n
External DDR Cache n |
|
n
LPDDR4 2GB n |
|
n
Sequential Read speed n |
|
n
Up to 9,500 MB/s n |
|
n
Sequential Write speed n |
|
n
UP to 8,500 MB/s n |
|
n
Dimension n |
|
n
SSD without Heatsink: 80 x 22 x 2.3 mm n |
| SSD with Heatsink: 92 x 23.5 x 44.7 mm |
| Please refer to the file to check the heatsink incompatible list |
|
n
Mean time between failure (MTBF) n |
|
n
1.6 million hours n |
|
n
Power Consumption (Active) n |
|
n
Read: <10W ; Write: <10W n |
|
n
Power Consumption (Idle) n |
|
n
<85mW n |
|
n
Temperature (Operating) n |
|
n
0°C to 70°C n |
|
n
Temperature (Storage) n |
|
n
-40°C to 85°C n |
|
n
Warranty n |
| 1. Limited 5-years or 700TBW. |
| 2. Limited warranty based on 5 years or 700TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. ) |
| *TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail. |
| 3. When the usage of an NVME SSD as indicated by the “Percentage Used” (SMART ID: 05) in SMART page of “GIGABYTE SSD toolbox” reaches 100 means out of warranty. (A new unused product will show the number of 0) |
|
n
Note n |
| • Test system configuration: configuration may vary by models, we will choose the latest platform for verification. |
| • Performance may vary based on SSD’s firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0. |
| • Speeds based on internal testing. Actual performance may vary. |
| • 1GB = 1 billion bytes. Actual useable capacity may vary. |
| * To keep AORUS Gen5 10000 SSD from overheating, please adopt the motherboard build-in heatsink or Thermal Guard Xtreme heatsink to prevent throttling. |
