Description
Part numberAG510K2TB
The highest performance thanks to the PCIe 5.0 x4 controller

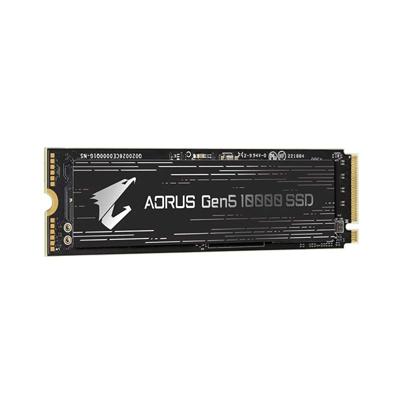

Thanks to the PCIe Gen5.0 x4 Phison E26 controller and the new 232-layer 3D TLC NAND flash memory, the AORUS Gen5 10000 solid-state drive provides the highest performance: sequential read and write speeds of up to 10,000/9,500 MB/s. Designed for enthusiasts, gamers and rendering professionals, the AORUS Gen5 10000 provides users with faster data transfer and lower latency in games.
The highest speed
The E26 controller is manufactured using a modern 12-nm process, which provides sufficient computing power. In addition, it supports up to 8 channels of NAND Flash with 32CE caching, DDR4 SLC and complies with the NVMe 2.0 standard. The AORUS Gen5 10000 solid-state drive provides approximately 37% faster read speeds and up to 37% faster write speeds than PCIe Gen4.0 x4.
NAND flash memory is chosen for its high quality and performance
Combining the superior bandwidth and high quality of 3D TLC NAND, the AORUS Gen5 10000 SSD delivers a better experience.

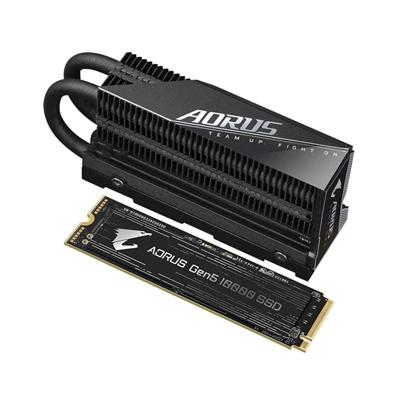

M.2 Thermal Guard Xtreme with nanocarbon coating (optional)
The AORUS Gen5 10000 solid-state drives are offered with the optional M.2 Thermal Guard Xtreme system, which consists of two heat pipes and stacked fins with advanced thermal technology with a nano-carbon coating for maximum heat dissipation efficiency. Double-sided thermal insulation with high conductivity ensures heat transfer to the ribs located one above the other. M.2 Thermal Guard Xtreme is the best solution for passive cooling when your PC uses a CPU AIO water cooler.
Why is it so important to store SSDs at low temperatures?
Higher operating temperatures may result in data loss. The degradation rate for data loss can be hundreds of times higher. Compared to a conventional coated heatsink, the M.2 Thermal Guard Xtreme improves heat dissipation to maintain the highest sequential read performance. Thanks to M.2 Thermal Guard Xtreme, the solid-state drive can operate at lower operating temperatures, which increases the reliability of data storage. Use M.2 Thermal Guard Xtreme to boost storage performance anytime.
Gigabyte Control Center (GCC)
Unified software for all supported GIGABYTE products. It provides a new intuitive user interface to control all the main functions.
A single software platform for all supported Gigabyte products
Intuitive user interface for ease of use
Modular control components for installed hardware only
Auto-update feature to keep system up-to-date and support future products.
|
Interface |
| PCI-Express 5.0 x4, NVMe 2.0 |
|
Form Factor |
|
M.2 2280 |
|
Total Capacity |
|
2000GB |
|
NAND |
| 3D TLC NAND Flash |
|
External DDR Cache |
|
LPDDR4 4GB |
|
Sequential Read speed |
|
Up to 10,000 MB/s |
|
Sequential Write speed |
|
UP to 9,500 MB/s |
|
Dimension |
|
SSD without Heatsink: 80 x 22 x 2.3 mm |
| SSD with Heatsink: 92 x 23.5 x 44.7 mm |
| Please refer to the file to check the heatsink incompatible list |
| Mean time between failure (MTBF) |
|
1.6 million hours |
|
Power Consumption (Active) |
|
Read: <10.5W ; Write: <11W |
|
Power Consumption (Idle) |
|
<85mW |
|
Temperature (Operating) |
|
0°C to 70°C |
|
Temperature (Storage) |
|
-40°C to 85°C |
|
Warranty |
| 1. Limited 5-years or 1400TBW. |
| 2. Limited warranty based on 5 years or 1400TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. ) |
| *TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail. |
| 3. When the usage of an NVME SSD as indicated by the “Percentage Used” (SMART ID: 05) in SMART page of “GIGABYTE SSD toolbox” reaches 100 means out of warranty. (A new unused product will show the number of 0) |
|
Note |
| • Test system configuration: configuration may vary by models, we will choose the latest platform for verification. |
| • Performance may vary based on SSD’s firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0. |
| • Speeds based on internal testing. Actual performance may vary. |
| • 1GB = 1 billion bytes. Actual useable capacity may vary. |
| * To keep AORUS Gen5 10000 SSD from overheating, please adopt the motherboard build-in heatsink or Thermal Guard Xtreme heatsink to prevent throttling. |
