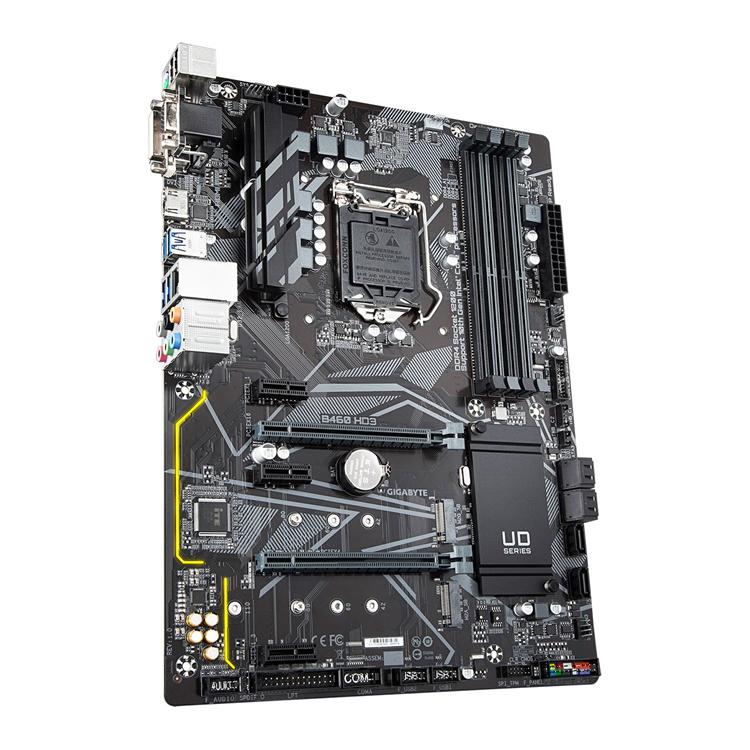

Gigabyte B460 HD3 Motherboard
Meet the Gigabyte B460 HD3 Motherboard, with support for 10th Gen Intel Core series processors, Dual NVMe PCIe Gen3 X4 M.2 Slots, GIGABYTE Gaming GbE LAN with Bandwidth Management, ALC1200 High Quality Audio Design ,Smart Fan 5 and more.
Performance
Energy wastage is reduced thanks to Low RDS(on) MOSFETS which prevents unnecessary residual heat dissipation. This is beneficial to both the end user and the environment without impacting your systems performance!
Ultra Durable
Your components are kept safe and secure thanks to many features. The Gigabyte patended double locking bracket keeps components secure. Solid pin power connectors offer stable power supply while CPU overloading- features include a larger contact area for electricity, ultra durability, and more metal quantity to sustain higher power and generated heat.
Smart Fan 5
Thanks to Smart Fan 5, users can ensures that their gaming PC maintains its performance whilst staying cool. Users can interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Fan Stop allows you to achieve fan silence- map any fan to stop completely when temperatures drop below a specific threshold.
| Core Specifications |
| Edition |
B460 HD3 |
| Form Factor |
ATX |
| CPU Socket |
1200 |
| Chipset |
Intel B460 |
| RAM Memory Support |
| Memory Type |
DDR4 |
| Memory Channel |
Dual (2) |
| Memory Type (ECC) |
ECC/Non-ECC |
| Memory Type (R/U) |
UDIMM (Unbuffered) |
| Memory Speed (Mhz) |
|
| Max. Memory Capacity |
128GB |
| Audio |
| Audio |
Realtek ALC1200 7.1 HD Audio |
| Graphics Support |
| Primary GPU Interface |
PCIe 3.0 (x16) |
| NVIDIA SLI Support |
Not Supported |
| AMD CrossFire Support |
2-Way CrossFire |
| Integrated Graphics |
Requires Processor Graphics or Discrete GPU |
| On-Board Graphics Connectors |
|
| Internal Connectivity |
| Expansion Slots |
-
- 1 x M.2, 22-42/60/80, PCIe Gen3x4
-
- 1 x M.2, 22-42/60/80, PCIe Gen3x4/SATA3
-
- 1 x PCIe 3.0 x16 (x4 Bandwidth)
|
| SATA Support |
SATA3 |
| RAID Support via |
Intel® SATA RAID 0/1/10/5 |
| Storage Mode Support |
-
- Intel Optane Memory Ready
|
| Internal I/O |
-
- 3 x 4-pin CHA_FAN connector
-
- 1 x 4-pin CPU Fan Connector
-
- 1 x Front Panel Audio Header
-
- 1 x Front Panel Connector
-
- 1 x Parallel Port (LPT) Header
-
- 2 x Thunderbolt AIC Connector
|
| External Connectivity |
| Network Interface Type |
Wired Gigabit LAN (10/100/1000) |
| Network Chip/Modules |
1 x Realtek (Gigabit LAN) |

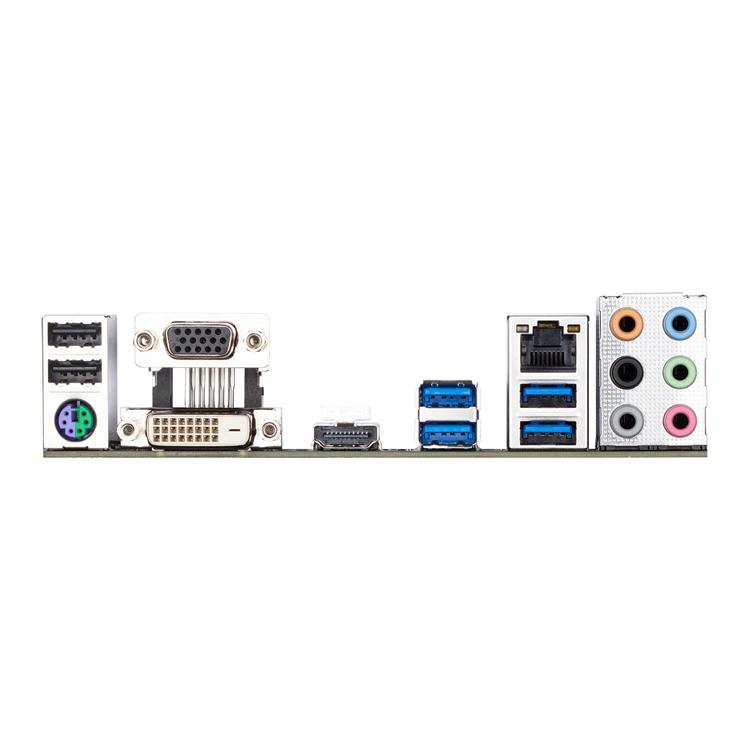

| Rear I/O Connectors |
-
- 1 x Center/Subwoofer Speaker Out
-
- 1 x PS/2 Keyboard/Mouse Combo
|
| Additional Specifications |
| Water Cooled |
No |
| Cooling |
Passive Heatsinks |
| QPI Speed |
N/A |
| Board Dimensions |
305 x 225 mm |
| Note |
|
