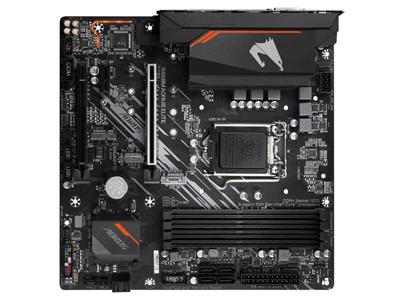

Gigabyte B460M AORUS ELITE Intel B460 LGA1200 Micro-ATX Motherboard

Gigabyte B460M AORUS ELITE Intel B460 LGA1200 Micro-ATX Motherboard

Name: Gigabyte B460M AORUS ELITE Intel B460 LGA1200 Micro-ATX Motherboard
Brand: Gigabyte
SKU: MB-GB460AEM
Price: 1762.00 ZAR
Availability: OutOfStock

R1762.00 Incl. Vat

KEY FEATURES:
– Micro-ATX Form Factor
– Intel B460 Chipset
– Socket LGA1200
– 4x DDR4 DIMM Slots, Supports Up to 128GB
– Supports up to DDR4-2933
– 2x PCI-E 3.0 x16, 1x PCI-E 3.0 x1 Slots
– 6x SATA 6Gb/s Ports, 2x M.2 Slots
– 2x USB 2.0/1.1 Type-A, 1x USB 3.2 Type-C Gen 1, 3x USB 3.2 Type-A Gen 1
– 1x HDMI, 1x DisplayPort, 1x DVI-D, 6x Audio Jacks
– Intel GbE LAN Chip (1000 Mbit/100 Mbit)
– Realtek ALC1200 Codec
– 3 Year Warranty

Out of stock

SKU: MB-GB460AEM Categories: B460, Components, Gigabyte, Intel Mobo, Motherboards Tags: B460, B460M Aorus Elite, Gigabyte, INTEL, LGA 1200, Micro-ATX, Motherboard

Description

Specifications:

Brand	GIGABYTE
Model	GA-B460M-AORUS-ELITE
Socket	LGA1200
Chipset	Intel B460
CPU Supported	Comet Lake
Form Factor	Micro-ATX

Technical Specification:

CPU	Intel 10^th Generation CPUs (Comet Lake)
Chipset	Intel B460
Memory	4 x DDR4 DIMM Slots Dual Channel DDR4 Memory Technology Support DDR4-2933 128GB Maximum Support Capacity
Graphics Outputs*	DVI-D, HDMI 1.4 and DisplayPort 1.4 *Requires Intel CPU with Integrated GPU
Audio	Realtek ALC1200 7.1 CH HD Audio
Network Connectivity	1 x Intel Gigabit LAN 10/100/1000 Mb/s
Expansion Slots	1 x PCI Express 3.0 x16 Slot (PCIEX16) (Single at x16 (PCIEX16) 1 x PCI Express 3.0 x16* Slot (PCIEX4) *Supports x4 mode 1 x PCI Express 3.0 x1 Slot 1 x M.2 Slot for Wireless Module (M2_WIFI)
Multi-GPU	N/A
Storage	6 x SATA3 6.0 Gb/s Connectors Supports RAID 0 / 1 / 5 / 10 1 x PCIe 3.0 x4 M.2 Socket (2242/2260/2280) 1 x PCIe 3.0 x4 M.2 Socket (2242/2260/2280/22110)
Motherboards Connector	1 x 24-Pin ATX Main Power Connector 1 x 8-Pin ATX 12V Power Connector 1 x CPU Fan Header 3 x System Fan Headers 2 x Addressable LED Strip Headers 2 x RGB LED Strip Headers 6 x SATA 6Gb/s Connectors 2 x M.2 Socket 3 Connectors 1 x Front Panel Header 1 x Front Panel Audio Header 1 x USB 3.2 Gen1 Header 2 x USB 2.0 Headers 2 x Thunderbolt Add-In Card Connectors 1 x Trusted Platform Module Header (For The GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 Module Only) 1 x Serial Port Header 1 x Clear CMOS Jumper 1 x Q-Flash Plus Button

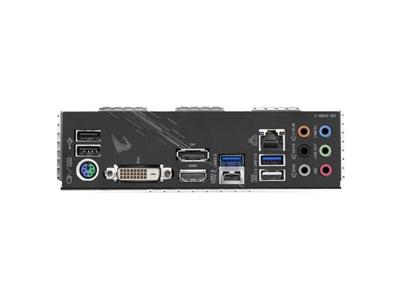

Rear Panel I/O	1 x PS/2 Keyboard/Mouse Port 1 x DVI-D Port 1 x DisplayPort 1 x HDMI Port 1 x USB 3.2 Gen1 Type-C Port 3 x USB 3.2 Gen1 Type-A Ports 2 x USB 2.0 Type-A Ports 1 x LAN RJ-45 Port 6 x Audio Jacks

Unique Features:

Features

GIGABYTE AORUS Cooling
4 Fan / Water Pump Headers
6 Temperature Sensors
All Fan Pin Headers Upgraded to Hybrid Fan Headers
Fan Stop
Advanced Thermal Design with Enlarged Heatsink
5 W/mK LAIRD Thermal Conductivity Pad

GIGABYTE AORUS Audio
Audio Noise Guard
High-End Audio Capacitors
AORUS AMP-UP Audio

GIGABYTE AORUS Quality and Protection
4+2 Phases Hybrid Digital Power Design
Low RDS(on) MOSFET
Ultra Durable PCIe Armor
Integrated I/O Shield Armor
Solid Pin Power Connectors
Double Locking Bracket
Q-Flash Plus BIOS

GIGABYTE AORUS RGB Fusion 2.0
16.8 Million Colours
Multi-Zone Light Show Design
11 LED Effects
2 x RGB LED Strip Headers
2 x ARGB LED Strip Headers

Warranty and Return Information:

Warranty Period

3 Years

Additional information

Weight	2 kg
CPU Socket Type	LGA 1200
CPU Cooling Socket Support	LGA 1200
Memory Form Factor	288-Pin DIMM
Memory Type	DDR4
Motherboard Brand	Gigabyte
Motherboard Category	Intel
Motherboard Chipset	B460
Form Factor	Micro ATX
Motherboard Socket Type	LGA 1200
