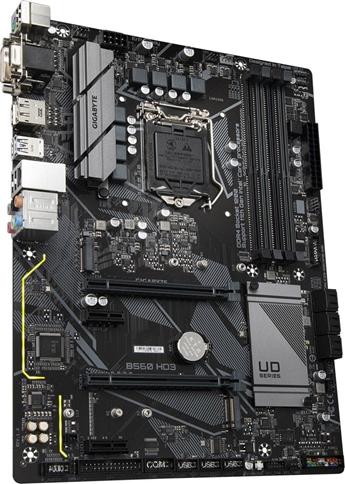

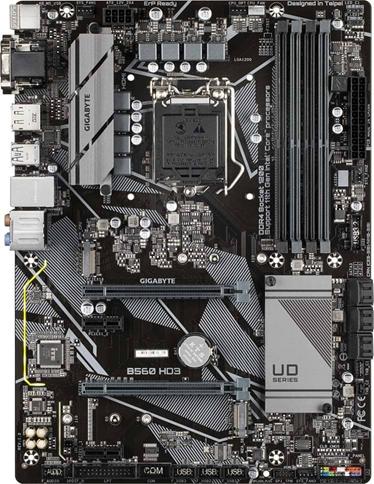

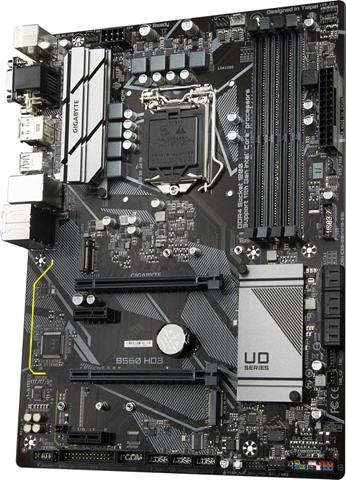

Meet the Gigabyte B560 HD3 Motherboard, featuring Direct 6+2 Phases Digital VRM, Full PCIe 4.0* Design, PCIe 4.0 M.2, GIGABYTE 8118 Gaming LAN, RGB FUSION 2.0 and Q-Flash Plus. With this motherboard you can enjoy cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading, thanks to the Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs. For thermal power, Smart Fan 6 brings several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface. Connectivity is key and so Gigayte’s Ultra Durable Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximise their Systems’ potential.
Key Features
- Supports 11th and 10th Gen Intel® Core™ Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs
- Dual Ultra-Fast NVMe PCIe 4.0* /3.0 x4 M.2
- GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth
- High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
- RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
| SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | Socket LGA1200 |
| Model | B560 HD3 |
| Specifications | |
| CPU | 11th Generation Intel Core i9 Processors / Intel Core i7 Processors / Intel Core i5 Processors |
| 10th Generation Intel Core i9 Processors / Intel Core i7 Processors / Intel Core i5 Processors / Intel Core i3 Processors/ Intel Pentium Processors / Intel Celeron Processors | |
| Chipset | Intel B560 Express Chipset |
| Memory | 11th Generation Intel Core i9/i7/i5 Processors: |
| Support for DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz | |
| 10th Generation Intel Core i9/i7 Processors: | |
| Support for DDR4 2933/2666/2400/2133 MHz Memory Modules | |
| 10th Generation Intel Core i5/i3 /Pentium/Celeron Processors: | |
| Support for DDR4 2666/2400/2133 MHz Memory Modules | |
| 4 x DDR4 DIMM Sockets Supporting up to 128 GB (32 GB Single DIMM Capacity) of System Memory | |
| Dual Channel Memory Architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 Memory Modules (Operate in non-ECC Mode) | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules | |
| Support for Extreme Memory Profile (XMP) Memory Modules | |
| Onboard Graphics | 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz |
| 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz | |
| * The DVI-D port does not support D-Sub connection by adapter. | |
| 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz | |
| * Support for DisplayPort 1.2 version and HDCP 2.3 | |
| * When the D-Sub port and DisplayPort are connected at the same time, images will output from the DisplayPort only. | |
| 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz | |
| * Support for HDMI 1.4 version and HDCP 2.3. | |
| (Graphics specifications may vary depending on CPU support.) | |
| LAN | Realtek GbE LAN chip |
| Audio | Realtek Audio CODEC |
| High Definition Audio | |
| 2/4/5.1/7.1-channel | |
| Support for S/PDIF Out | |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16 (PCIEX16) |
| * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
| (The PCIEX16 slot conforms to PCI Express 4.0 standard.)(Note) | |
| 1 x PCI Express x16 slot, running at x4 (PCIEX4) | |
| 2 x PCI Express x1 slots | |
| (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.) | |
| Storage Interface | CPU: |
| 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)(Note) | |
| Chipset: | |
| 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB) | |
| 6 x SATA 6Gb/s connectors | |
| * Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors. | |
| Intel Optane Memory Ready | |
| USB | Chipset: |
| 6 x USB 3.2 Gen 1 Ports (4 Ports on the Back Panel, 2 Ports Available Through the Internal USB Header) | |
| 6 x USB 2.0/1.1 Ports Available Through the Internal USB Headers | |
| Chipset USB 2.0 Hub: | |
| 2 x USB 2.0/1.1 Ports on the Back Panel | |
| Internal I/O Connectors | 1 x 24-pin ATX Main Power Connector |
| 1 x 8-pin ATX 12V Power Connector | |
| 1 x CPU Fan Header | |
| 1 x Water Cooling CPU Fan Header | |
| 3 x System Fan Headers | |
| 1 x Addressable LED Strip Header | |
| 1 x RGB LED Strip Header | |
| 2 x M.2 Socket 3 Connectors | |
| 6 x SATA 6Gb/s Connectors | |
| 1 x Front Panel Header | |
| 1 x Front Panel Audio Header | |
| 1 x USB 3.2 Gen 1 Header | |
| 3 x USB 2.0/1.1 Headers | |
| 1 x S/PDIF Out Header | |
| 2 x Thunderbolt add-in Card Connectors | |
| 1 x Trusted Platform Module Header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 Module Only) | |
| 1 x Serial Port Header | |
| 1 x Parallel Port Header | |
| 1 x Clear CMOS Jumper | |
| 1 x Q-Flash Plus Button | |

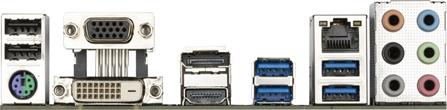

| Back Panel Connectors | 2 x USB 2.0/1.1 Ports |
| 1 x PS/2 Keyboard/Mouse Port | |
| 1 x D-Sub Port | |
| 1 x DVI-D Port | |
| 1 x DisplayPort | |
| 1 x HDMI Port | |
| 4 x USB 3.2 Gen 1 Ports | |
| 1 x RJ-45 Port | |
| 6 x Audio Jacks | |
| I/O Controller | iTE I/O Controller Chip |
| BIOS | 1 x 256 Mbit Flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | ATX Form Factor |
| 30.5cm x 22.5cm | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
