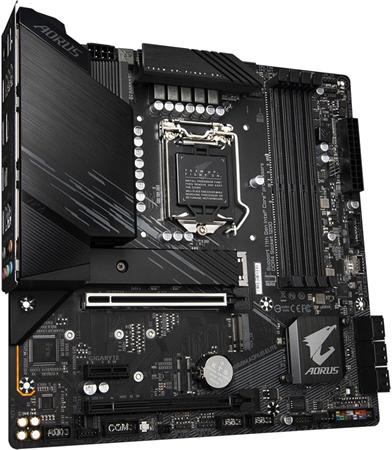

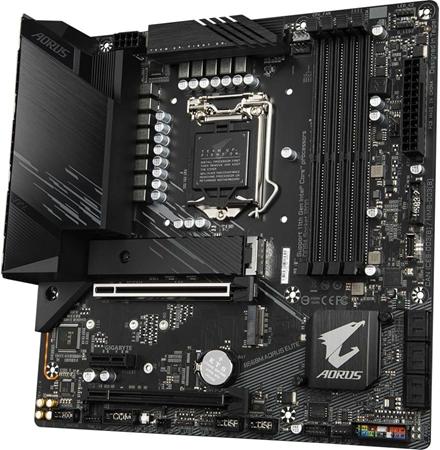

Gigabyte B560M Aorus Elite Motherboard

• 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors
• 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors*
  * Limited to processors with 4 MB Intel Smart Cache, Intel Celeron G5xx5 family.
• L3 cache varies with CPU

• Intel B560 Express Chipset

• 11th Generation Intel Core i9/i7/i5 processors:
  Support for DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
• 10th Generation Intel Core i9/i7 processors:
  Support for DDR4 2933 / 2666 / 2400 / 2133 MHz memory modules
• 10th Generation Intel Core i5/i3 /Pentium/Celeron processors:
  Support for DDR4 2666/2400/2133 MHz memory modules
• 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules

• 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
  * Support for HDMI 1.4 version and HDCP 2.3.
• 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
  * Support for DisplayPort 1.2 version, HDCP 2.3

• Realtek Audio codec
• High Definition Audio
• 2/4/5.1/7.1-channel

• 1 x Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

• None

• 1 x PCI Express x16 slot, running at x16 (PCIEX16)
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  (The PCIEX16 slot conforms to PCI Express 4.0 standard.)*
  *Supported by 11th Generation processors only.
• 1 x PCI Express x16 slot, running at x4 (PCIEX4)
• 1 x PCI Express x1 slot
  (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)

• Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies

• 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)*
  * Supported by 11th Generation processors only.

Chipset

• 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)

6 x SATA 6Gb/s connectors
Intel Optane Memory Ready

• 1 x USB Type-C port on the back panel, with USB 3.2 Gen2 support
• 1 x USB 3.2 Gen2 Type-A ports (red) on the back panel
• 3 x USB 3.2 Gen1 ports (2 ports on the back panel, 1 port available through the internal USB header)
• 2 x USB 2.0/1.1 ports on the back panel

Chipset+USB 3.2 Gen 1 Hub:

• 1 x USB Type-C port with USB 3.2 Gen1 support, available through the internal USB header
• 2 x USB 3.2 Gen1 ports available through the internal USB header

Chipset+ 2 USB 2.0 Hubs:

• 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x water cooling CPU fan header
• 3 x system fan headers
• 2 x addressable LED strip headers
• 2 x RGB LED strip headers
• 6 x SATA 6Gb/s connectors
• 2 x M.2 Socket 3 connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C header, with USB 3.2 Gen 1 support
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 2 x Thunderbolt add-in card connectors
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
• 1 x serial port header
• 1 x Clear CMOS jumper
• 1 x Q-Flash Plus button

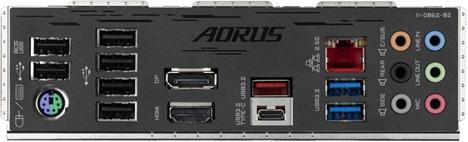

• 1 x PS/2 keyboard/mouse port
• 1 x USB Type-C port, with USB 3.2 Gen2 support
• 1 x USB 3.2 Gen2 Type-A port (red)
• 2 x USB 3.2 Gen1 ports
• 6 x USB 2.0/1.1 ports
• 1 x DisplayPort
• 1 x HDMI port
• 1 x RJ-45 port
• 6 x audio jacks

• iTE I/O Controller Chip

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control
  * Whether the fan speed control function is supported will depend on the cooler you install.

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  @BIOS
  EasyTune
  Fast Boot
  Game Boost
  ON/OFF Charge
  RGB Fusion
  Smart Backup
  System Information Viewer
• Support for Q-Flash Plus
• Support for Q-Flash
• Support for Xpress Install

• Norton Internet Security (OEM version)
• Realtek 8125 Gaming LAN Bandwidth Control Utility

• Support for Windows 10 64-bit

• Micro ATX Form Factor, 24.4cm x 24.4cm
