| SPECIFICATIONS |
| Brand |
Gigabyte |
| Series |
Socket LGA1200 |
| Model |

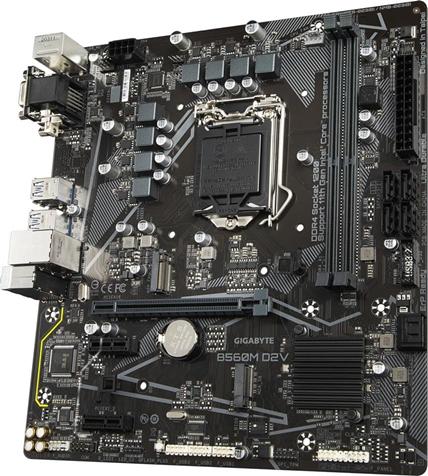

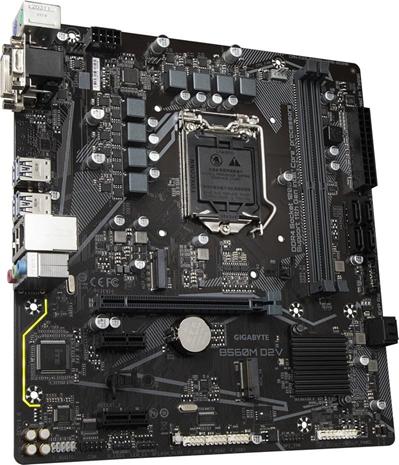

B560M D2V |
| Specifications |
| CPU |
11th Generation Intel Core i9 Processors / Intel Core i7 Processors / Intel Core i5 Processors |
| 10th Generation Intel Core i9 Processors / Intel Core i7 Processors / Intel Core i5 Processors / Intel Core i3 Processors/ Intel Pentium Processors / Intel Celeron Processors |
| Chipset |
Intel B560 Express Chipset |
| Memory |
11th Generation Intel Core i9/i7/i5 processors: |
| Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules |
| 10th Generation Intel Core i9/i7 processors: |
| Support for DDR4 2933/2666/2400/2133 MHz memory modules |
| 10th Generation Intel Core i5/i3/Pentium/Celeron processors: |
| Support for DDR4 2666/2400/2133 MHz memory modules |
| 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory |
| Dual channel memory architecture |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Support for Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics |
Integrated Graphics Processor-Intel HD Graphics Support: |
| 1 x D-Sub port, Supporting a Maximum Resolution of 1920×1200@60 Hz |
| 1 x DVI-D port, Supporting a Maximum Resolution of 1920×1200@60 Hz |
| * The DVI-D Port Does not Support D-Sub Connection by Adapter. |
| Audio |
Realtek Audio CODEC |
| High Definition Audio |
| 2/4/5.1/7.1-channel |
| LAN |
Realtek GbE LAN chip (1 Gbit/100 Mbit) |
| Expansion Slots |
1 x PCI Express x16 Slot, Running at x16 (PCIEX16) |
| * For Optimum Performance, if Only one PCI Express Graphics Card is to be Installed, be Sure to Install it in the PCIEX16 Slot. |
| (The PCIEX16 Slot Conforms to PCI Express 4.0 Standard.)(Note) |
| 2 x PCI Express x1 Slots (PCIEX1_1, PCIEX1_2) |
| (The PCIEX1 Slot Conforms to PCI Express 3.0 Standard.) |
| Storage Interface |
CPU: |
| 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) (Note) |
| Chipset: |
| 1 x M.2 Connector (Socket 3, M Key, type 2260/2280 SATA & PCIe 3.0×4/x2 SSD Support) (M2A_SB) |
| 6 x SATA 6Gb/s Connectors |
| * Refer to “1-7 Internal Connectors,” for the Installation Notices for the M.2 & SATA Connectors. |
| Intel Optane Memory Ready |
| USB |
Chipset: |
| 6 x USB 3.2 Gen 1 Ports (4 Ports on the Back Panel, 2 Ports Available through the Internal USB Header) |
| Chipset USB 2.0 Hub: |
| 8 x USB 2.0/1.1 Ports (2 Ports on the Back Panel, 6 Ports Available Through the Internal USB Headers) |
| Internal I/O Connectors |
1 x 24-pin ATX Main Power Connector |
| 1 x 8-pin ATX 12V Power Connector |
| 1 x CPU Fan Header |
| 1 x System Fan Header |
| 1 x Addressable LED Strip Header |
| 1 x RGB LED Strip Header |
| 2 x M.2 Socket 3 Connectors |
| 6 x SATA 6Gb/s Connectors |
| 1 x Front Panel Header |
| 1 x Front Panel Audio Header |
| 1 x USB 3.2 Gen 1 Header |
| 3 x USB 2.0/1.1 Headers |
| 1 x Trusted Platform Module Header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 Module Only) |
| 1 x Serial Port Header |
| 1 x Clear CMOS Jumper |
| 1 x Q-Flash Plus Button |

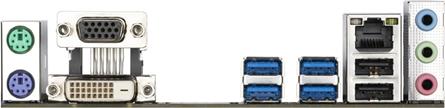

| Back Panel Connectors |
1 x PS/2 Mouse Port |
| 1 x PS/2 Keyboard Port |
| 1 x D-Sub Port |
| 1 x DVI-D Port |
| 4 x USB 3.2 Gen 1 Ports |
| 2 x USB 2.0/1.1 Ports |
| 1 x RJ-45 Port |
| 3 x Audio Jacks |
| I/O Controller |
iTE I/O Controller Chip |
| BIOS |
1 x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor |
Micro ATX Form Factor |
| 24.4cm x 22.5cm |
| Warranty Information |
| Warranty |
3 Year Warranty |
