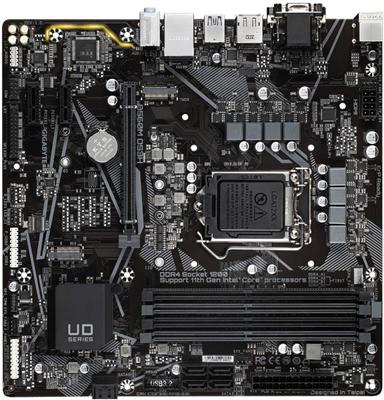

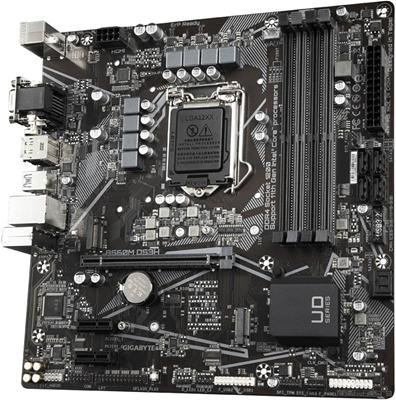

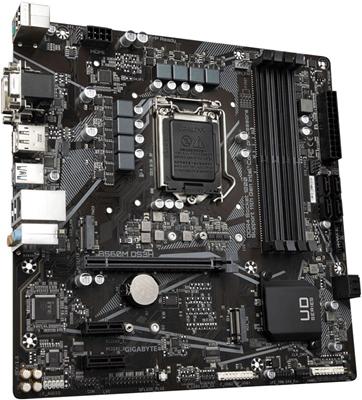

Gigabyte B560M DS3H 11th Generation Intel M-ATX Motherboard
Gigabyte B560M DS3H 11th Generation Intel M-ATX Motherboard - Image 2
Gigabyte B560M DS3H 11th Generation Intel M-ATX Motherboard - Image 3
Gigabyte B560M DS3H 11th Generation Intel M-ATX Motherboard - Image 4
Gigabyte B560M DS3H 11th Generation Intel M-ATX Motherboard - Image 5

Gigabyte B560M DS3H 11th Generation Intel M-ATX Motherboard

R1546.00 Incl. Vat

Key Features:
– Micro-ATX Form Factor
– Intel B560 Chipset
– Intel LGA1200 Socket
– 4x DDR4 DIMM Slots, Supports up to 128GB
– Supports up to DDR4-3200
– 1x PCIe 4.0 x16, 2x PCIe 3.0 x1 Slots
– 6x SATA 6Gbps Ports, 1x M.2 M-Key Slot
– 1x USB Type-C (with USB 3.2 Gen 1 Support)
– 3x USB 3.2 Type-A Gen 1, 2x USB 2.0/1.1 Type-A
– 1x D-Sub, 1x DVI-D
– 1x DisplayPort, 1x HDMI, 3x Audio Jacks
– Realtek GbE LAN Chip
– 3 Year Warranty

Out of stock

SKU: GA-B560M-DS3H Categories: , , , Tags: , , , ,

Description

ModelGA-B560M-DS3H

A Solid Foundation for Your System
Here to herald the arrival of the latest generation of Intel CPUs is the Gigabyte B650m DS3H Motherboard, an ulta durable motherboard in a small form factor ready to support intel 11th and 10th generation processors, this Micro-ATX motherboard boasts a direct 6+2 phase digital vrm solution, dual ultra fast NVMe m.2 slots, full PCIe 4.0 design, Gigabyte exclusive 8118 Gaming LAN and a fully comprehensive I/O that includes type-C connectivity and 8-CH HD Audio. Gigabyte keep product longevity at the forefront of their product design and this ultra-durable motherboard is no exception; with PCIe armor; solid pin connectors and smart fan6 technologies to keep your system running smoothly and ensure you receive the performance you deserve. If your a fan of customisation; the B560m DS3H also boasts RGB Fusion 2.0 support giving you the option to install ARGB and RGB LED strips to add your own personal style. The B560M DS3H is the perfect motherboard for daily enthusiasts and gamers alike.

Specifications

Core Specifications
Edition B560M DS3H
Form Factor MicroATX
CPU Socket 1200
Chipset Intel B560
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
    • DDR4 – 2133
    • DDR4 – 2400
    • DDR4 – 2666
    • DDR4 – 2800
    • DDR4 – 2933
    • DDR4 – 3000
    • DDR4 – 3200
    • DDR4 – 3300(OC)
    • DDR4 – 3333(OC)
    • DDR4 – 3400(OC)
    • DDR4 – 3466(OC)
    • DDR4 – 3600(OC)
    • DDR4 – 3666(OC)
    • DDR4 – 3733(OC)
    • DDR4 – 3800(OC)
    • DDR4 – 3866(OC)
    • DDR4 – 4000(OC)
    • DDR4 – 4133(OC)
    • DDR4 – 4266(OC)
    • DDR4 – 4300(OC)
    • DDR4 – 4400(OC)
    • DDR4 – 4500(OC)
    • DDR4 – 4600(OC)
    • DDR4 – 4700(OC)
    • DDR4 – 4800(OC)
    • DDR4 – 4933(OC)
    • DDR4 – 5000(OC)
    • DDR4 – 5133(OC)
    • DDR4 – 5333(0C)
Max. Memory Capacity 128GB
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
    • D-Sub (VGA)
    • DisplayPort 1.2
    • DVI-D
    • HDMI 1.4
Internal Connectivity
Expansion Slots
    • 1 x M.2, 22-60/80, PCIe Gen3x4/SATA3
    • 1 x M.2, 22-60/80/110 PCIe Gen 4×4
    • 6 x SATA 6GB/s
SATA Support SATA3 / M.2
RAID Support via
Storage Mode Support Intel Optane Memory Ready
Internal I/O
    • 1 x 24-pin (Power)
    • 1 x 8-pin (Power)
    • 1 x Addressable Digital RGB Header
    • 1 x Clear CMOS jumper
    • 1 x CPU Fan Connector
    • 1 x Front Panel Audio Header
    • 1 x Front Panel Connector
    • 1 x LED strip connector
    • 2 x M.2 Connector
    • 1 x Parallel Port (LPT) Header
    • 1 x Q-Flash Plus Button
    • 6 x SATA III – 6Gb/s
    • 1 x Serial (COM) Header
    • 3 x System Fan header
    • 1 x TPM 2.0 Header
    • 2 x USB 2.0 Header
    • 1 x USB 3.2 Gen1 Headern
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek (Gigabit LAN)

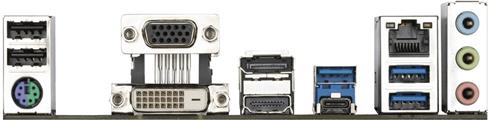

Rear I/O Connectors
    • 1 x D-Sub (VGA)
    • 1 x DisplayPort 1.2
    • 1 x DVI-D
    • 1 x HDMI 1.4
    • 1 x Line In
    • 1 x Line Out
    • 1 x Mic-In
    • 1 x PS/2 Keyboard/Mouse Combo
    • 1 x RJ-45n
    • 2 x USB 2.0
    • 3 x USB 3.2 Gen1 Type-A
    • 1 x USB 3.2 Gen1 Type-C
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 244 x 244 mm
Note

Additional information

Weight 2 kg
CPU Socket Type

CPU Cooling Socket Support

Memory Form Factor

Memory Type

Motherboard Category

Motherboard Chipset

Form Factor

Motherboard Socket Type

Motherboard Brand
