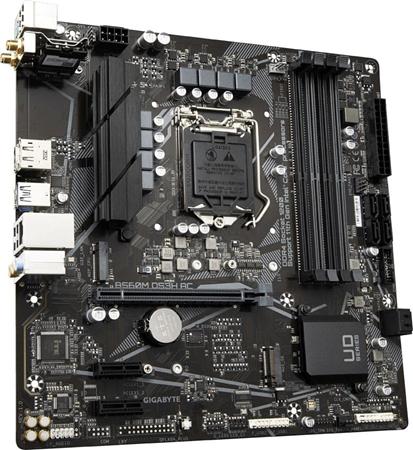

Description
Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.
- Digital PWM Controller to deliver appropriate voltage to the CPU.
- Direct 6+2Phases Low RDS(on) MOSFETs without PWM Doublers, each power phase connects directly to the CPU.
- All-solid capacitors to improve transient response and minimize oscillation.
- 8-pin Solid Pin CPU Power Connector.
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
Cooling Features
- High Current Support
Each fan headers support PWM and DC fan and Water cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection - Precision Control
Up to 7 temperature/fan speed control points for precise fan curve - Dual Curve Mode
Slope/Stair dual mode for different user scenario
Dual PCIe 4.0/3.0 x4 M.2 Connectors
GIGABYTE Ultra Durable Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their Systems’ potential.

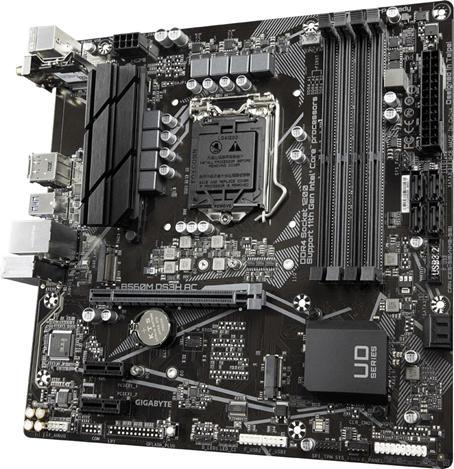

| SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | Ultra Durable |
| Model | B560M DS3H AC |
| CPU | 1. 11th Generation Intel Core i9 Processors / Intel Core i7 Processors / Intel Core i5 Processors |
| 2. 10th Generation Intel Core i9 Processors / Intel Core i7 Processors / Intel Core i5 Processors / Intel Core i3 Processors/ Intel Pentium Processors / Intel Celeron Processors | |
| * Limited to Processors with 4 MB Intel Smart Cache, Intel Celeron G5xx5 Family. | |
| 3. L3 Cache Varies with CPU | |
| Chipset | Intel B560 Express Chipset |
| Memory | 11th Generation Intel Core i9/i7/i5 Processors: |
| Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz | |
| 10th Generation Intel Core i9/i7 Processors: | |
| Support for DDR4 2933/2666/2400/2133 MHz Memory Modules | |
| 10th Generation Intel Core i5/i3/Pentium/Celeron Processors: | |
| Support for DDR4 2666/2400/2133 MHz Memory Modules | |
| 4 x DDR4 DIMM Sockets Supporting up to 128 GB (32 GB Single DIMM Capacity) of System Memory | |
| Dual Channel Memory Architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 Memory Modules (Operate in non-ECC Mode) | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules | |
| Support for Extreme Memory Profile (XMP) Memory Modules | |
| Onboard Graphics | Integrated Graphics Processor-Intel HD Graphics Support: |
| 1 x DisplayPort, Supporting a Maximum Resolution of 4096×2304@60 Hz | |
| * Support for DisplayPort 1.2 Version & HDCP 2.3 | |
| * When the D-Sub Port and DisplayPort are Connected at the Same Time, Images will Output from the DisplayPort Only. | |
| 1 x HDMI Port, Supporting a Maximum Resolution of 4096×2160@30 Hz | |
| * Support for HDMI 1.4 version and HDCP 2.3. | |
| (Graphics Specifications May Vary Depending on CPU Support.) | |
| Audio | Realtek Audio CODEC |
| High Definition Audio | |
| 2/4/5.1/7.1-Channel | |
| * To Configure 7.1-Channel Audio, you Need to Open the Audio Software & Select Device Advanced Settings > Playback Device to Change the Default Setting First. | |
| LAN | Realtek GbE LAN chip (1000/100 Mbit) |
| Wireless Communication Module | AzureWave Wi-Fi AW-CB304NF (Realtek RTL8821CE) |
| WIFI 802.11a/b/g/n/ac, Supporting 2.4/5 GHz Dual-Band | |
| BLUETOOTH 4.2 | |
| Support for 11ac Wireless Standard & up to 433 Mbps Data Rate | |
| * Actual Data Rate May Vary Depending on Environment & Equipment. | |
| Expansion Slots | 1 x PCI Express x16 Slot, Running at x16 |
| (The PCIEX16 Slot Conforms to PCI Express 4.0 Standard.) (Note) | |
| 2 x PCI Express x1 Slots | |
| (The PCIEX1 Slot Conforms to PCI Express 3.0 Standard.) | |
| Storage Interface | CPU: |
| 1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) (Note) | |
| Chipset: | |
| 1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB) | |
| 2. 6 x SATA 6Gb/s connectors | |
| * Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors. | |
| Intel Optane Memory Ready | |
| * System Acceleration with Intel Optane Memory enabled on the M2P_CPU connector only. | |
| USB | Chipset: |
| 1. 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support | |
| 2. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) | |
| 3. 4 x USB 2.0/1.1 ports available through the internal USB headers | |
| Chipset USB 2.0 Hub: | |
| 1. 2 x USB 2.0/1.1 ports on the back panel | |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 3 x system fan headers | |
| 1 x addressable LED strip header | |
| 1 x RGB LED strip header | |
| 6 x SATA 6Gb/s connectors | |
| 2 x M.2 Socket 3 connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| 1 x Clear CMOS jumper | |
| 1 x Q-Flash Plus button | |

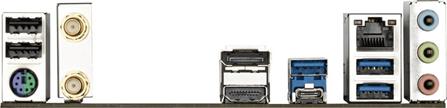

| Back Panel Connectors | 2 x USB 2.0/1.1 ports |
| 1 x PS/2 keyboard/mouse port | |
| 2 x SMA antenna connectors (1T1R) | |
| 1 x DisplayPort | |
| 1 x HDMI port | |
| 3 x USB 3.2 Gen 1 ports | |
| 1 x USB Type-C port, with USB 3.2 Gen 1 support | |
| 1 x RJ-45 port | |
| 3 x audio jacks | |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage detection |
| Temperature detection | |
| Fan speed detection | |
| Fan fail warning | |
| Fan speed control | |
| BIOS | Voltage detection |
| Temperature detection | |
| Fan speed detection | |
| Fan fail warning | |
| Fan speed control | |
| BIOS | 1 x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro ATX Form Factor |
| 24.4cm x 24.4cm | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
