Description

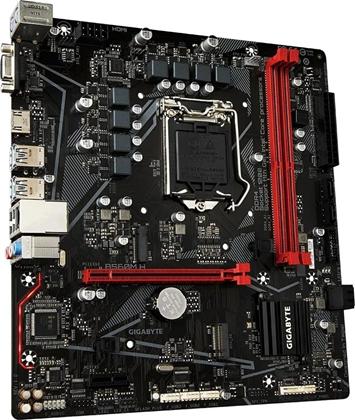

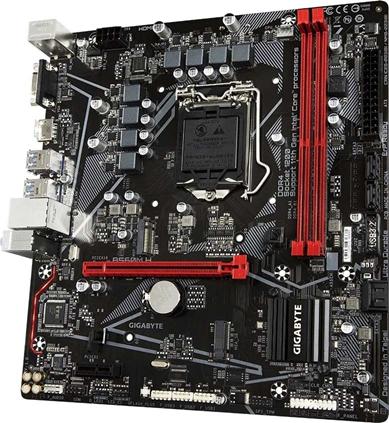

The Gigabyte B560M H Motherboard is an Intel® B560 Ultra Durable Motherboard with Direct 6+2 Phases Digital VRM, Full PCIe 4.0* Design, Dual PCIe x4 M.2, GIGABYTE 8118 Gaming LAN, RGB FUSION 2.0 and Q-Flash Plus.
Key Features:
Key Features:
-
- Supports 11th and 10th Gen Intel® Core™ Series Processors
-
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
-
- Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs
-
- Dual Ultra-Fast NVMe PCIe 4.0* /3.0 x4 M.2
-
- GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
-
- High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
-
- RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
-
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
-
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
POWER
Enjoy clean and efficient power delivery to the CPU thanks to Direct 6_2 Phases Digital VRM Solution, with better thermal performance ensure stability under high CPU frequencies and heavy loading. The Motherboard features all-solid capacitors to improve transient response and minimize oscillation.
COOLING
For cooling support, the Gigabyte B560M H Motherboard features Smart Fan 6, which contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
CONNECTIVITY
Connectivity is so important, which is why the Gigabyte B560M H Motherboard features dual PCIe 4.0/3.0 x4 M.2 connectors and Gigabyte Gaming GbE LAN. GIGABYTE Ultra Durable Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their Systems’ potential. Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.
| SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | Ultra Durable |
| Model | B560M H (rev. 1.0) |
| CPU | LGA1200 Package: |
| 11th Generation Intel Core i9 Processors / Intel Core i7 Processors / Intel Core i5 Processors | |
| 10th Generation Intel Core i9 Processors / Intel Core i7 Processors / Intel Core i5 Processors / Intel Core i3 Processors/ Intel Pentium Processors / Intel Celeron Processors *1 | |
| L3 Cache Varies with CPU | |
| Chipset | Intel B560 Express Chipset |
| Memory | 11th Generation Intel Core i9/i7/i5 Processors: |
| Support for DDR4 3200/3000/2933/2666/2400/2133 MHz Memory Modules | |
| 10th Generation Intel Core i9/i7 Processors: | |
| Support for DDR4 2933/2666/2400/2133 MHz Memory Modules | |
| 10th Generation Intel Core i5/i3/Pentium/Celeron Processors: | |
| Support for DDR4 2666/2400/2133 MHz Memory Modules | |
| 2x DDR4 DIMM Sockets Supporting Up to 64 GB (32 GB Single DIMM Capacity) of System Memory | |
| Dual Channel Memory Architecture | |
| Support for ECC Un-Buffered DIMM 1Rx8/2Rx8 Memory Modules (Operate in Non-ECC Mode) | |
| Support for Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules | |
| Support for Extreme Memory Profile (XMP) Memory Modules | |
| On-Board Graphics | Integrated Graphics Processor-Intel HD Graphics Support: |
| 1x D-Sub Port, Supporting a Maximum Resolution of 1920×1200@60 Hz | |
| 1x HDMI Port, Supporting a Maximum Resolution of 4096×2160@30 Hz *2 | |
| (Graphics Specifications May Vary Depending on CPU Support.) | |
| Audio | Realtek Audio CODEC |
| High Definition Audio | |
| 2/4/5.1/7.1-Channel *3 | |
| LAN | Realtek GbE LAN Chip (1 Gbit/100 Mbit) |
| Expansion Slots | 1x PCI Express x16 Slot, Running at x16 (PCIEX16) |
| (The PCIEX16 Slot Conforms to PCI Express 4.0 Standard.) | |
| 1x PCI Express x1 Slot (PCIEX1) | |
| (The PCIEX1 Slot Conforms to PCI Express 3.0 Standard.) | |
| Storage Interface | CPU: |
| 1x M.2 Connector (Socket 3, M Key, Type 2260/2280 PCIe 4.0 x4/x2 SSD Support) (M2P_CPU) | |
| Chipset: | |
| 1x M.2 Connector (Socket 3, M Key, Type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD Support) (M2A_SB) | |
| 4x SATA 6Gb/s Connectors | |
| Intel Optane Memory Ready *4 | |
| USB | Chipset: |
| 6x USB 3.2 Gen 1 Ports (4 Ports on the Back Panel, 2 Ports Available Through the Internal USB Header) | |
| Chipset+USB 2.0 Hub: | |
| 8x USB 2.0/1.1 Ports (2 Ports on the Back Panel, 6 Ports Available Through the Internal USB Headers) | |
| Internal I/O Connectors | 1x 24-pin ATX Main Power Connector |
| 1x 8-pin ATX 12V Power Connector | |
| 1x CPU Fan Header | |
| 1x System Fan Header | |
| 1x Addressable LED Strip Header | |
| 1x RGB LED Strip Header | |
| 2x M.2 Socket 3 Connectors | |
| 4x SATA 6Gb/s Connectors | |
| 1x Front Panel Header | |
| 1x Front Panel Audio Header | |
| 1x USB 3.2 Gen 1 Header | |
| 3x USB 2.0/1.1 Headers | |
| 1x Trusted Platform Module Header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 Module Only) | |
| 1x Serial Port Header | |
| 1x Clear CMOS Jumper | |
| 1x Q-Flash Plus Button | |

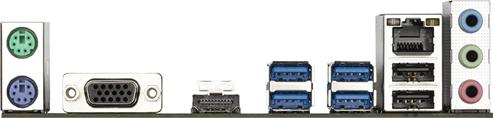

| Back Panel Connectors | 1x PS/2 Mouse Port |
| 1x PS/2 Keyboard Port | |
| 1x D-Sub Port | |
| 1x HDMI Port | |
| 4x USB 3.2 Gen 1 Ports | |
| 2x USB 2.0/1.1 Ports | |
| 1x RJ-45 Port | |
| 3x Audio Jacks | |
| I/O Controller | iTE I/O Controller Chip |
| Hardware Monitoring | Voltage Detection |
| Temperature Detection | |
| Fan Speed Detection | |
| Fan Fail Warning | |
| Fan Speed Control *5 | |
| BIOS | 1x 256 Mbit Flash |
| Use of Licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Operating System Support | Windows 10 64-bit |
| Form Factor | Micro ATX Form Factor; 24.4cm x 22.5cm |
| Notes | *1 Limited to processors with 4 MB Intel Smart Cache, Intel Celeron G5xx5 family. |
| *2 Support for HDMI 2.0 version and HDCP 2.3. | |
| *3 To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software. | |
| *4 System acceleration with Intel Optane Memory can only be enabled on the M2P_CPU connector and with an 11th Generation Intel processor installed. | |
| *5 Whether the fan speed control function is supported will depend on the cooler you install. | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
