Original price was: R3295.00.R2756.00Current price is: R2756.00. Incl. Vat
(Displayed price above applies to EFT / Bank Transfer payments only.)
KEY FEATURES:
– AMD B650 Chipset • AM5 platform performance
– AM5 Socket • Ryzen 9000 / 8000 / 7000 ready
– DDR5 Memory • Faster system responsiveness
– 3x M.2 Slots • High-speed NVMe storage
– WiFi 6 • Reliable wireless connectivity
– Gigabit LAN • Stable wired networking
– USB-C Connectivity • Modern peripheral support
– Q-Flash Plus • Easy BIOS updates
– 3 Year Warranty

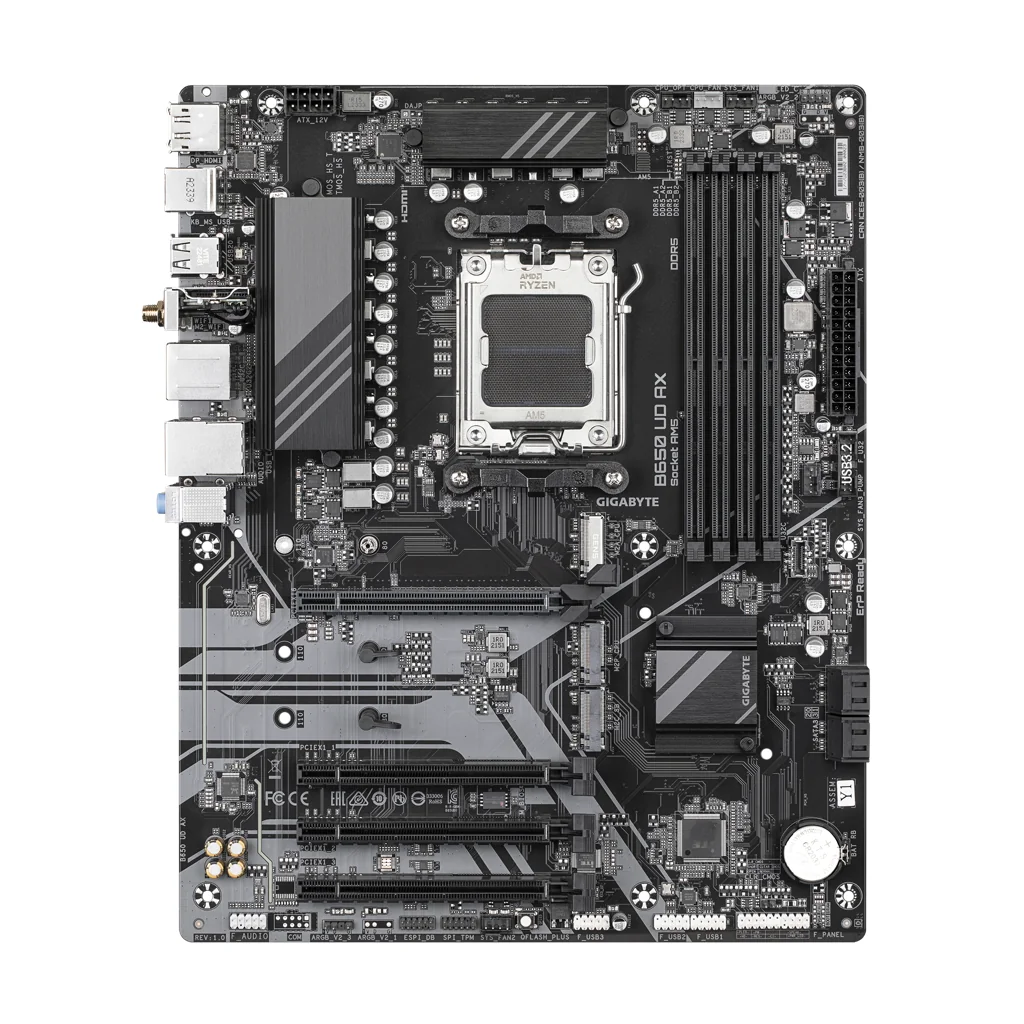

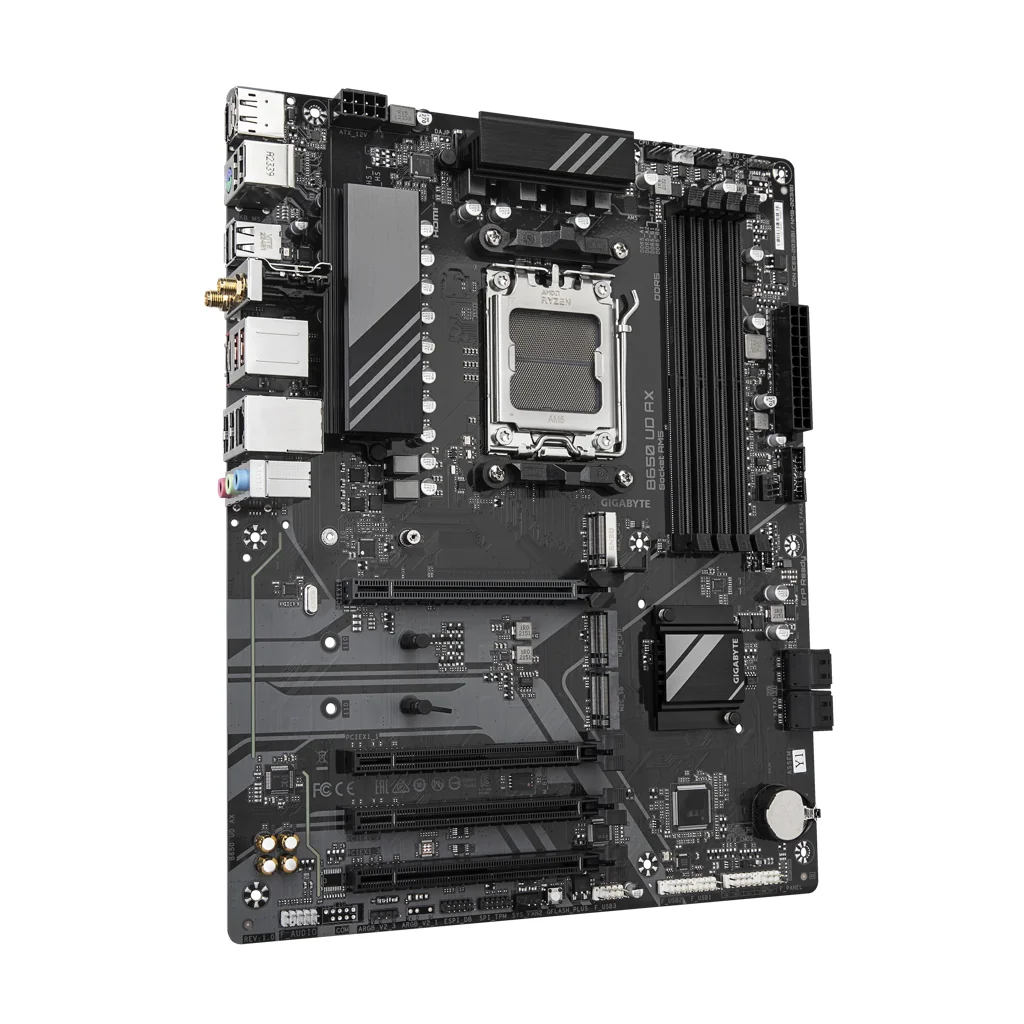

The GIGABYTE B650 UD AX is designed to provide a dependable and efficient platform for AMD Ryzen AM5 processors. Built on the AMD B650 chipset, it supports Ryzen 7000, 8000, and 9000 series CPUs, making it a versatile option for gaming, productivity, and general-purpose systems.
With support for DDR5 memory and AMD EXPO profiles, the board enables faster speeds and improved system responsiveness. It features three M.2 slots, including one PCIe 5.0-ready connector and two PCIe 4.0 slots, allowing for high-speed NVMe storage configurations.

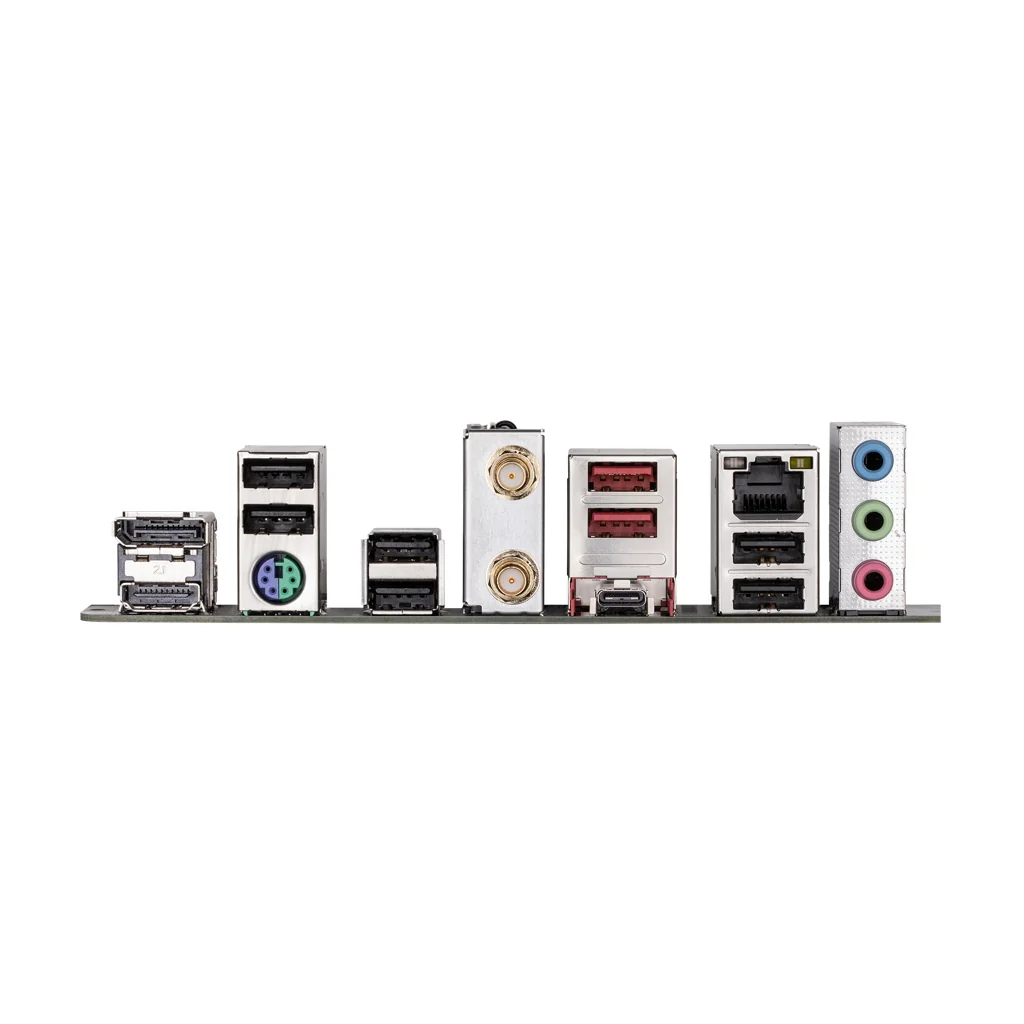

Connectivity includes integrated WiFi 6 for reliable wireless performance and Gigabit LAN for stable wired networking. A range of USB ports, including USB Type-C, ensures compatibility with modern devices.
GIGABYTE’s Ultra Durable design, Smart Fan 6 cooling system, and Q-Flash Plus BIOS update feature make it easy to build, maintain, and optimise your system. With its full ATX layout, the B650 UD AX offers excellent expandability and flexibility for a wide range of PC builds.
WHY IT’S A GREAT CHOICE:
SOLID AM5 FOUNDATION
Supports the latest AMD Ryzen processors, providing a reliable platform for modern builds with future upgrade potential.
FAST DDR5 PERFORMANCE
Enables improved memory speeds and responsiveness for gaming and multitasking workloads.
FLEXIBLE STORAGE OPTIONS
Three M.2 slots allow for fast NVMe storage configurations, including PCIe 5.0 support.
RELIABLE CONNECTIVITY
WiFi 6 and Gigabit LAN ensure stable networking for both wireless and wired setups.
EASY BUILD & MAINTENANCE
Q-Flash Plus and EZ-Latch features simplify system building and upgrades.
| Feature | Details |
|---|---|
| Brand / Model | GIGABYTE B650 UD AX |
| Form Factor | ATX |
| Dimensions | 30.5cm x 24.4cm |
| Socket | AM5 |
| Chipset | AMD B650 |
| CPU Support | AMD Ryzen 9000 / 8000 / 7000 Series Processors |
| Memory Support | 4 x DDR5 DIMM Slots, Dual Channel, Up to 256GB |
| Memory Profile Support | AMD EXPO / Intel XMP |
| Memory Module Support | Non-ECC Unbuffered DIMM |
| Expansion Slot | 1 x PCIe x16 slot (PCIe 4.0) |
| Additional Expansion | PCIe slots available (varies by configuration) |
| M.2 Storage | 3 x M.2 Slots |
| M.2 Details | 1 x PCIe 5.0, 2 x PCIe 4.0 |
| SATA Storage | 4 x SATA 6Gb/s |
| Audio | Realtek HD Audio, 7.1-Channel |
| LAN | Gigabit Ethernet LAN |
| WiFi | WiFi 6 (802.11ax) |
| Bluetooth | Supported (module dependent) |
| USB (Rear) | USB 3.2 Gen 2, USB 3.2 Gen 1, USB 2.0, USB Type-C |
| Video Output | 1 x DisplayPort, 1 x HDMI |
| Internal Headers | USB headers, fan headers, RGB headers, front panel connectors |
| Cooling | Smart Fan 6 with multiple fan headers |
| RGB Support | RGB Fusion, Addressable RGB & RGB headers |
| Power Design | 6+2+2 Phase Digital VRM |
| BIOS | AMI UEFI BIOS, Q-Flash Plus |
| Operating System | Windows 11 / Windows 10 |
| Warranty | 3 Years |
| Weight | 2 kg |
|---|---|
| Motherboard Brand | |
| Motherboard Category | |
| Motherboard Chipset | |
| Motherboard Form Factor | |
| Motherboard Ram Support | |
| Motherboard Socket Type |
