Description

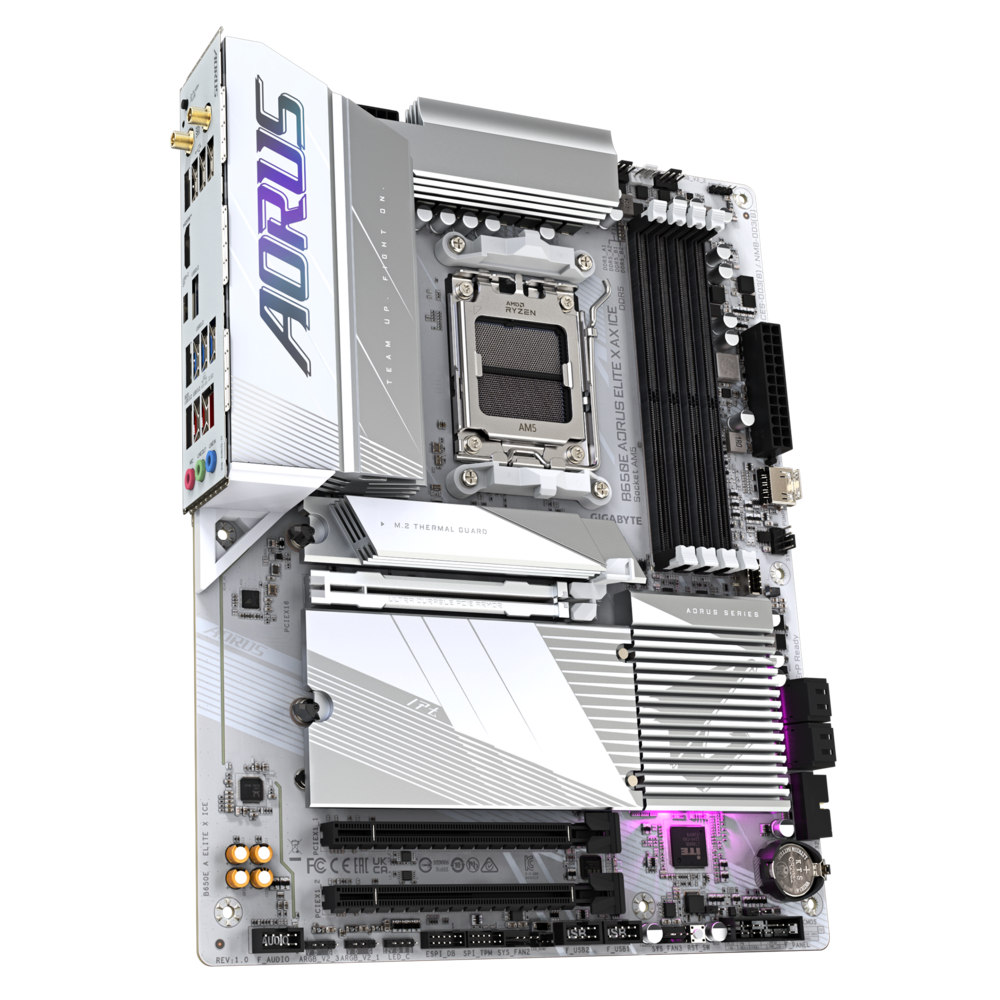

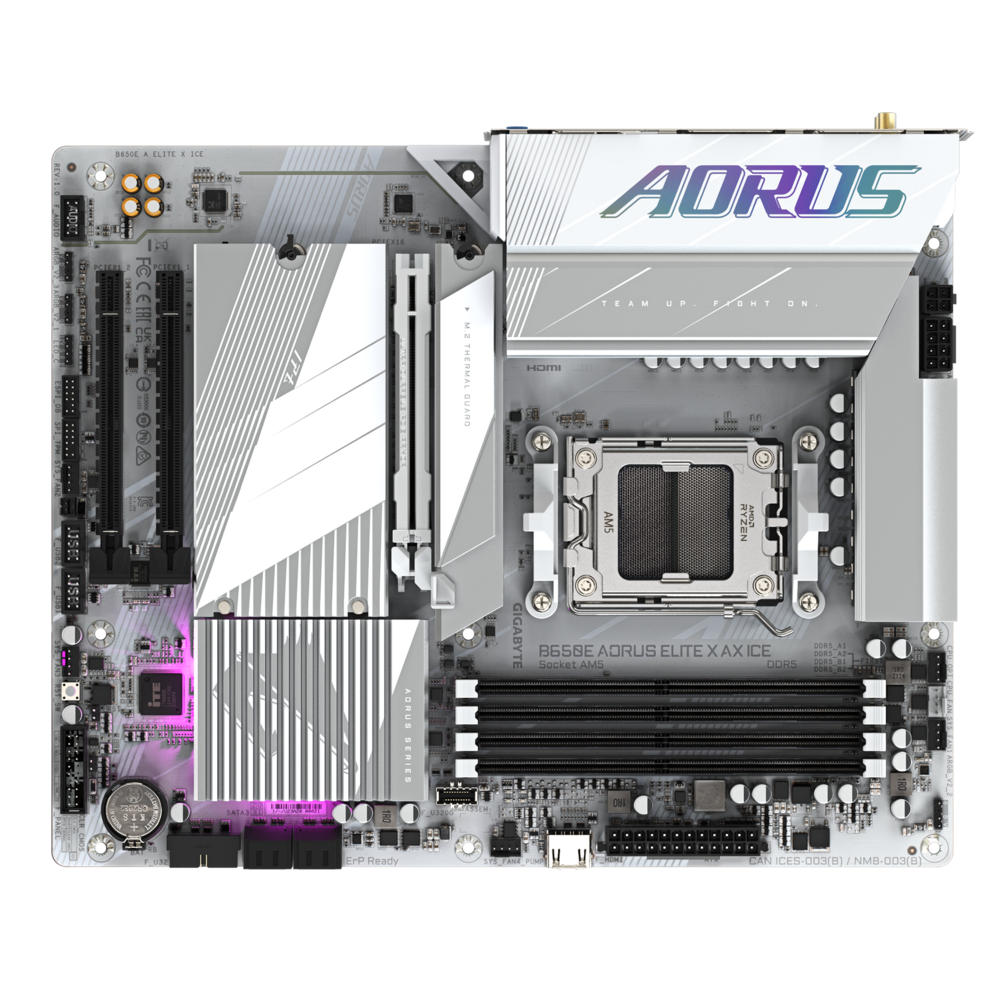

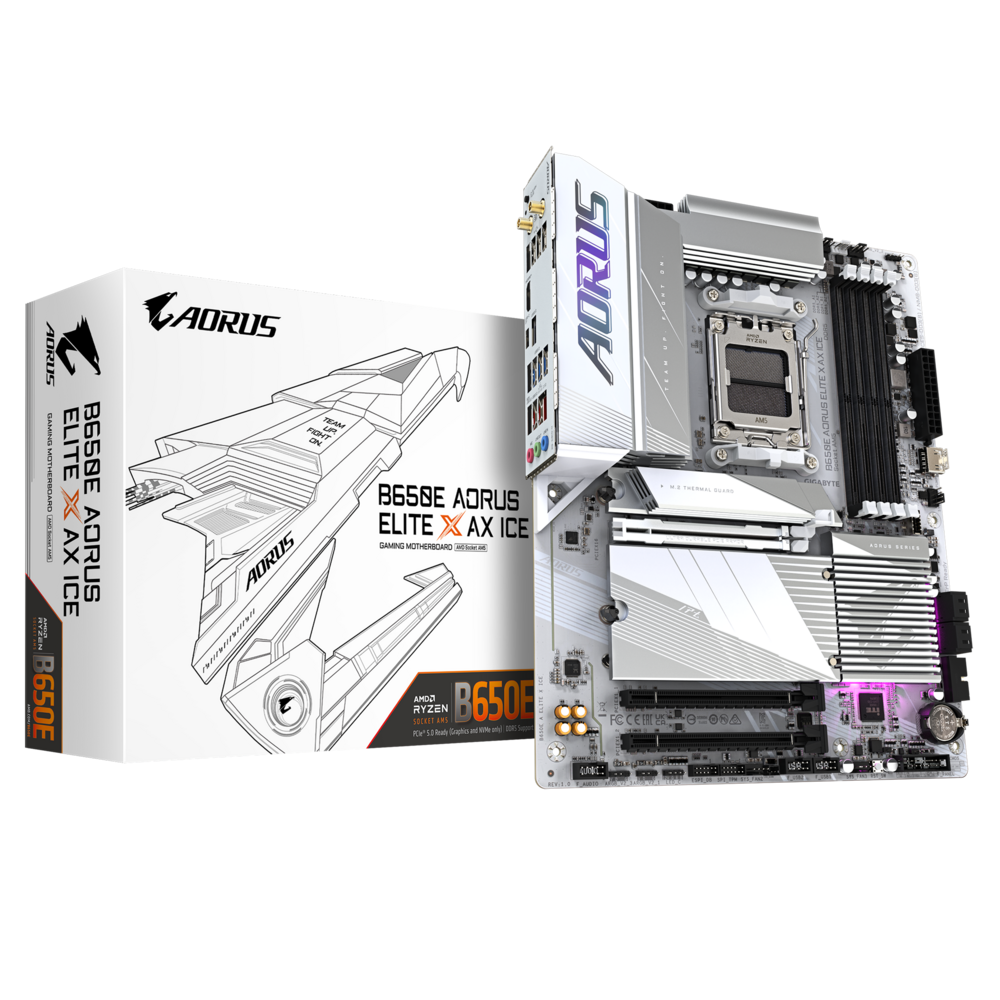

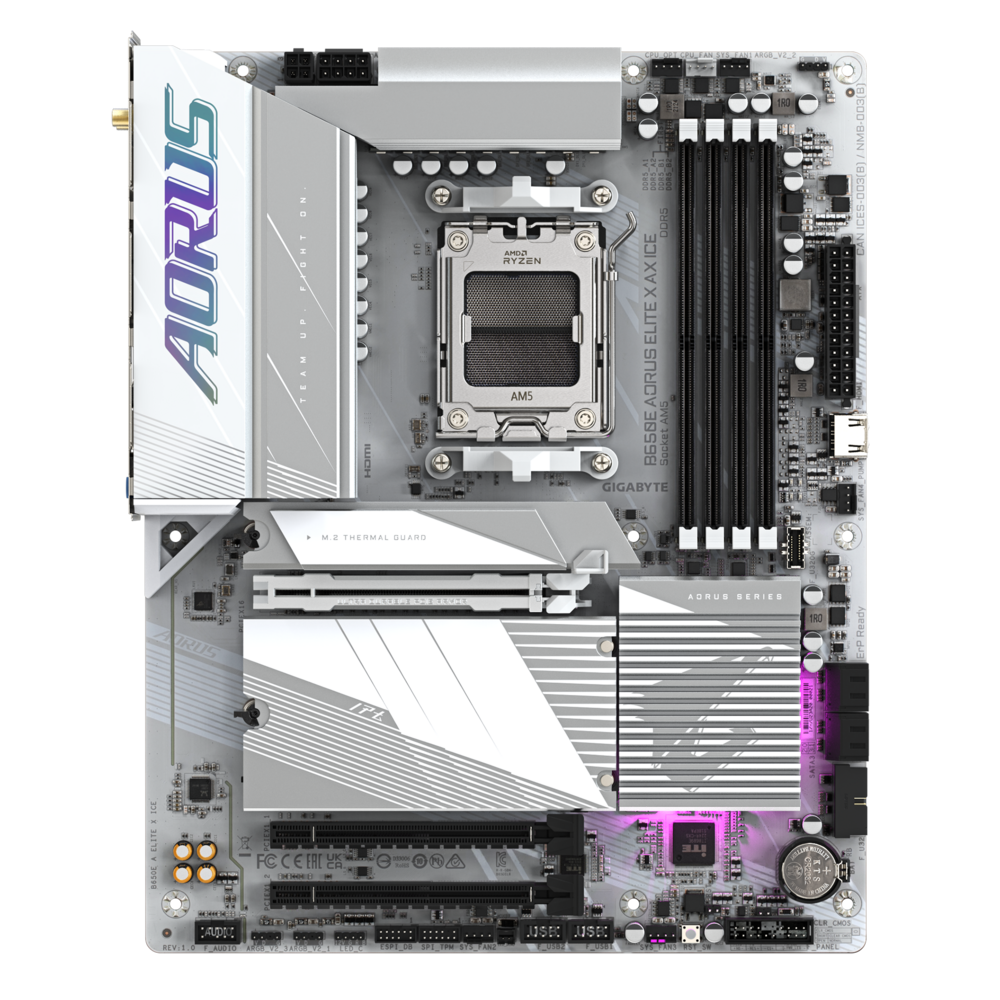

A top-tier ATX motherboard for the latest AMD Ryzen™ AM5 platform. The Gigabyte B650E AORUS ELITE X AX ICE (Rev 1.0/1.1) combines a robust 12 + 2 + 2 phase digital VRM, DDR5 overclocking support up to 8000 MT/s, and advance thermal solutions including M.2 Thermal Guard XL and VRM Thermal Armor Advanced. Featuring PCIe 5.0 x16, Wi‑Fi 6E, 2.5GbE LAN, dual USB‑C, and ultra-durable construction, it’s built for high-performance gaming, content creation, and overclock enthusiasts. The Gigabyte B650E AORUS ELITE X AX ICE motherboard is a game-changer for anyone seeking top-tier technology and performance. The Gigabyte B650E AORUS ELITE X AX ICE further enhances your gaming and productivity experience.
Key Features
-
Supports AMD Ryzen 7000 / 8000 Series processors on AM5
Explore the capabilities of the Gigabyte B650E AORUS ELITE X AX ICE to enhance your system’s performance.
Discover why the Gigabyte B650E AORUS ELITE X AX ICE is the preferred choice for gamers and tech enthusiasts alike.
With the Gigabyte B650E AORUS ELITE X AX ICE, users can experience unparalleled system performance and reliability, making it ideal for gamers and content creators alike.
-
Powerful 12 + 2 + 2 digital VRM design for stable overclocking
-
Dual-channel DDR5 (4 DIMMs) supporting AMD EXPO™ & Intel XMP
-
PCIe 5.0 x16 UD Slot X with 10× load-bearing strength
-
M.2 EZ‑Latch Click + Plus for screwless, quick SSD installation
-
Sensor Panel Link onboard port, ultra‑fast storage with 3× M.2 slots (one Gen5)
-
Advanced cooling: VRM Thermal Armor Advanced & M.2 Thermal Guard XL
-
Wi‑Fi 6E with ultra‑gain antenna and 2.5GbE LAN
-

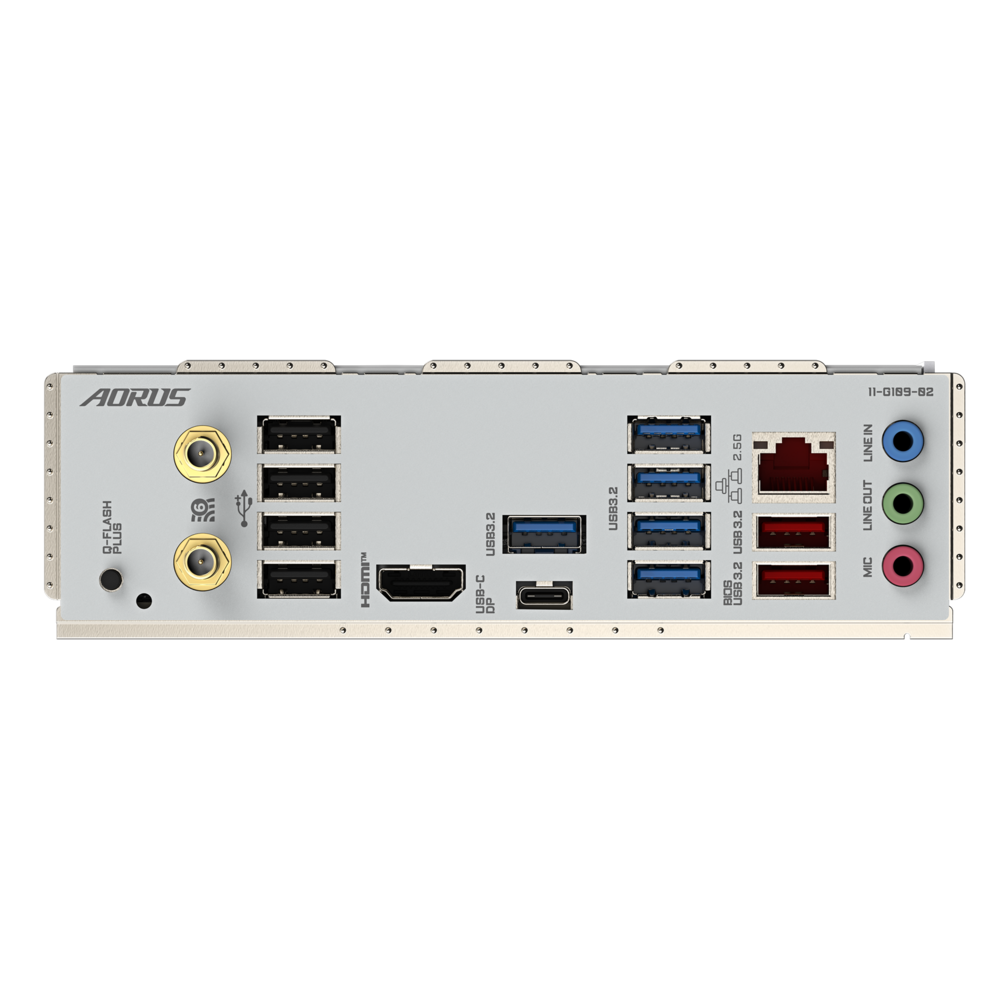

Front USB‑C® 20 Gb/s, rear USB‑C® (up to 40 Gb/s), HDMI support
-
High-fidelity 8‑channel audio with audiophile-grade capacitors
-
DIY-friendly features: Q‑Flash Plus, Multi‑Key, Smart Fan 6, RGB Fusion support
Specifications:
| Specification | Details |
|---|---|
| Model | Gigabyte B650E AORUS ELITE X AX ICE (Rev 1.0 / 1.1) |
| Form Factor | ATX (30.5cm x 24.4cm) |
| Socket | AMD Socket AM5 |
| Chipset | AMD B650E |
| Supported CPUs | AMD Ryzen 9000 / 8000 / 7000 Series processors |
| Memory Support | 4× DDR5 DIMM Slots, up to 192GB |
| Memory Overclocking | Supports DDR5 8000+ MT/s (OC), AMD EXPO™, Intel® XMP |
| VRM Power Design | 12+2+2 Twin Digital VRM with 60A Power Stages |
| Graphics Interface | 1× PCIe 5.0 x16 (Ultra Durable Slot X) |
| Other Expansion Slots | 2× PCIe 3.0 x1 |
| M.2 Slots | 3× M.2 (1× Gen5 x4, 2× Gen4 x4), Thermal Guard XL |
| SATA Ports | 4× SATA 6Gb/s |
| RAID Support | RAID 0, 1, 10 (NVMe and SATA) |
| Wi-Fi / Bluetooth | Wi‑Fi 6E, Bluetooth 5.3, Ultra High Gain Antenna |
| LAN | 1× 2.5GbE LAN (Realtek® RTL8125BG) |
| Audio | 8-Channel HD Audio, Audio Noise Guard, audiophile-grade capacitors |
| USB – Rear Panel | 1× USB-C® 40Gb/s, 1× USB-C® 10Gb/s, 6× USB 3.2 Gen1, 4× USB 2.0 |
| USB – Front Panel | 1× USB-C® 20Gb/s, 2× USB 3.2 Gen1 headers, USB 2.0 headers |
| Internal Headers | RGB, ARGB, Q-Flash Plus, Multi-Key, Sensor Panel Link |
| Cooling | VRM Thermal Armor Advanced, M.2 Thermal Guard XL, Smart Fan 6 |
| Display Outputs | 1× HDMI 2.1 (4K @60Hz, CPU dependent) |
| BIOS | 256Mbit Flash, UEFI AMI BIOS with Q-Flash Plus |
| Operating System | Windows 11 64-bit / Windows 10 64-bit |
| Accessories Included | Wi-Fi Antenna, SATA Cables, M.2 Screws, Q-Connectors |
| Dimensions | 30.5cm x 24.4cm (ATX) |
| Warranty | 3 Years (Limited Manufacturer Warranty – South Africa) |
