Part numberGA-B660-GAMING-X-DDR4

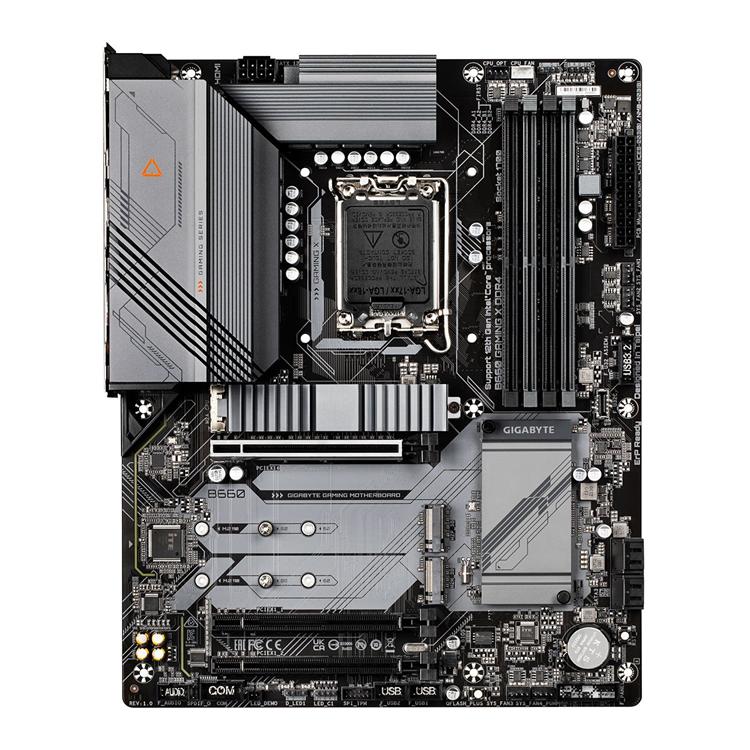

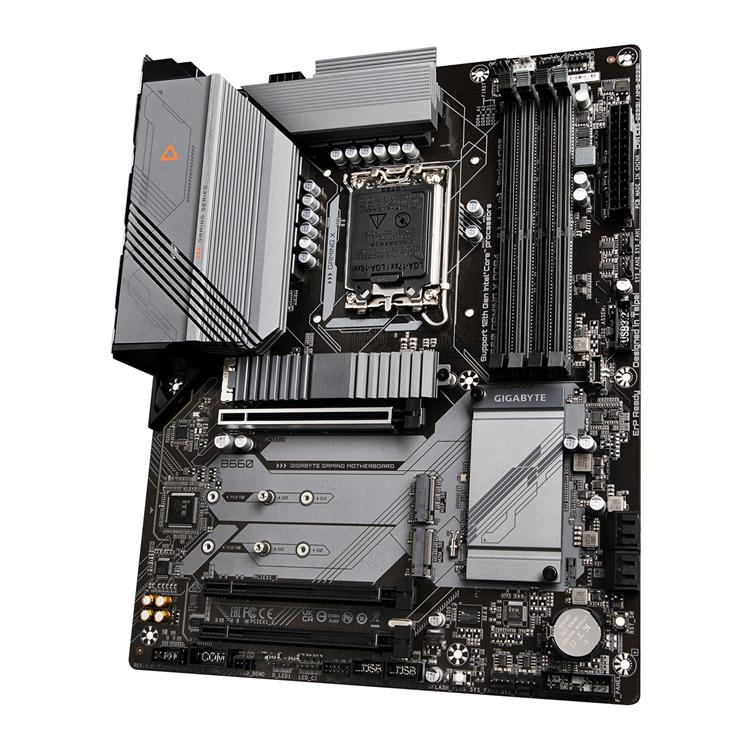

Here to herald the arrival of the latest generation of Intel CPUs is the Gigabyte B660 Gaming X DDR4 Motherboard. This ATX motherboard boasts an upgraded 8+1+1 hybrid power solution, dual Gen4 m.2, PCIe 4.0 support, 2.5GbE gaming LAN, front-panel Type-C connectivity and a fully comprehensive I/O panel. Product longevity is of upmost important to gigabyte; thats why they have included only the best components they can find and reinforce every slot to make each of them solid and durable. Make this motherboard your own with full RGB Fusion 2.0 support; now offering more LED customisations than ever, users can truly adapt their PC to represent their lifestyle with full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.
Intel B660 Chipset
LGA 1200 CPU Socket
12th Generation Intel Intel Processors
ATX Form Factor
Cleaner and more Efficient Power Delivery to the CPU
8+1+1 Phases / Low RDS(on) MOSFETs
SOLID PIN CONNECTORS
8-pin CPU Power Connector
12TH GEN INTEL CORE
Processor Support
PREMIUM CHOKE AND CAPACITOR DESIGN
GIGABYTE’s B660M Gaming X DDR4 motherboard uses 8+1+1 phases, Low RDS(on) MOSFETs. Solid capacitors improve transient response and minimise oscillation and offer incredible precision in delivering power to the motherboard’s most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from the latest Intel® Core™ 12th Generation processors.
Meet The Latest Generation
2.PCIE 4.0 M2 CONNECTOR
3. PCIE 4.0 READY PCB
IMPRESSIVE PCIE GEN4 DESIGN
GIGABYTE B660 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.
Is your Windows Genuine?Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.
A Fully Comprehensive Cooling Solution
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature – all of it can be customized to your liking.
6 PWM/DC Fan Headers
6 Internal Temperature Sensors
Superior Support for DDR4 XMP
With new Intel Hybrid technology, GIGABYTE exclusively creates two new “CPU Upgrade” in BIOS profiles to meet different users’ scenarios by adjusting P-Core and E-Core activation and voltage policy.
UP TO 4400MHZ AND BEYOND*
GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 4400MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard.
2 X PCIE 4.0 M.2 SLOTS / PCIE 4.0 DESIGN
Experience super-fast storage with dual Gen4 PCie M.2 storage slots, reaching a theoretical bandwidth of up to 64 Gb/s allowing you to say goodbye to those annoying loading screens.
Illuminate your PC with RGB Fusion 2.0
B660 motherboards feature RGB FUSION 2.0 to offer lighting effected options and customized settings with outstanding aesthetics, and able to let enthusiasts building a stylish and unique gaming PC.
Durability for Years to Come
With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!
STEP 1
Plug the 24-pin & 8-pin power supply cable into the motherboard.
STEP 2
Download and unzip the motherboard’s compressed BIOS file and rename to “gigabyte.bin”, save to a USB flash-drive, and plug it into the Q-Flash USB port.
STEP 3
Press the Q-Flash button, and the motherboard will start updating the BIOS automatically.
Take Control of your Motherboard
REFRESHED BIOS
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system. * Photos are for reference only. Product features may vary by model.
| SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | Gaming X DDR4 Series |
| Model | GA-B660-GAMING-X-DDR4 |
| CPU | LGA1700 socket: Support For 12th Generation Intel Core, Pentium Gold and Celeron Processors |
| L3 Cache Varies With CPU | |
| Chipset | Intel B660 Express Chipset |
| Memory | Support For DDR4 |
| 4400(O.C.)/4300(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3733(O.C.)/3666(O.C.) | |
| 3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.) /3200/3000/2933/2666/2400/2133 MHz Memory Modules | |
| 4x DDR4 DIMM Sockets Supporting Up to 128GB (32GB single DIMM Capacity) Of System Memory | |
| Dual Channel Memory Architecture | |
| Support For ECC Un-Buffered DIMM 1Rx8/2Rx8 Memory Modules (Operate In Non-ECC Mode) | |
| Support For Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules | |
| Support For Extreme Memory Profile (XMP) Memory Modules | |
| Onboard Graphics | Integrated Graphics Processor-Intel HD Graphics Support: |
| 1x DisplayPort, Supporting a Maximum Resolution Of 4096×2304@60 Hz | |
| Support For DisplayPort 1.2 Version and HDCP 2.3 | |
| 1x HDMI Port, Supporting a Maximum Resolution Of 4096×2160@60 Hz | |
| Support For HDMI 2.1 Version and HDCP 2.3. | |
| Support Native HDMI 2.1 TMDS Compatible Ports. | |
| Audio | Realtek Audio CODEC |
| High Definition Audio | |
| 2/ 4/ 5.1/ 7.1-Channel | |
| Support For S/PDIF Out | |
| LAN | Realtek 2.5GbE LAN Chip (2.5 Gbps/ 1 Gbps/ 100 Mbps) |
| Expansion Slot | 1x PCI Express x16 Slot, Running At x16 (PCIEX16) |
| For Optimum Performance, If Only One PCI Express Graphics Card Is To Be Installed, Be Sure To Install It In The PCIEX16 Slot | |
| (The PCIEX16 Slot Conforms To PCI Express 4.0 Standard.) | |
| 2x PCI Express x16 Slots, Running At x1 (PCIEX1_1, PCIEX1_2) | |
| (All Of The PCI Express Slots Conform To PCI Express 3.0 Standard) | |
| Storage Interface | |
| CPU Native | 1 x M.2 Connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) |
| B660 Chipset | 1x M.2 Connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB) |
| 1x M.2 Connector (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2 SSD support) (M2M_SB) | |
| 4x SATA 6Gb/s Connectors | |
| Support For RAID 0, RAID 1, RAID 5, and RAID 10 | |
| Intel Optane Memory Ready | |
| USB | |
| Chipset | 1x USB Type-C Port With USB 3.2 Gen 2 Support, Available Through The Internal USB Header |
| 1x USB 3.2 Gen 2 Type-A Port (Red) On The Back Panel | |
| 4x USB 3.2 Gen 1 Ports (2x Ports On the Back Panel, 2 Ports Available Through The Internal USB Header) | |
| 1x USB 2.0/1.1 Port On The Back Panel | |
| Chipset Hubs | 8x USB 2.0/ 1.1 Ports (4 Ports On The Back Panel, 4 Ports Available Through The Internal USB Headers) |
| Internal I/O Connectors | 1x 24-Pin ATX Main Power Connector |
| 1x 8-Pin ATX 12V Power Connector | |
| 1x CPU Fan Header | |
| 1x Water Cooling CPU Fan Header | |
| 3x System Fan Headers | |
| 1x System Fan/Water Cooling Pump Header | |
| 2x Addressable LED Strip Headers | |
| 2x RGB LED Strip Headers | |
| 3x M.2 Socket 3 Connectors | |
| 4x SATA 6Gb/s Connectors | |
| 1x Front Panel Header | |
| 1x Front Panel Audio Header | |
| 1x USB Type-C Header, With USB 3.2 Gen 2 Support | |
| 1x USB 3.2 Gen 1 Header | |
| 2x USB 2.0/ 1.1 Headers | |
| 1x Trusted Platform Module Header (For the GC-TPM2.0 SPI/ GC-TPM2.0 SPI 2.0 Module Only) | |
| 1x Serial Port Header | |
| 1x Q-Flash Plus Button | |
| 1x Reset Button | |
| 1x Reset Jumper | |
| 1x Clear CMOS Jumper | |

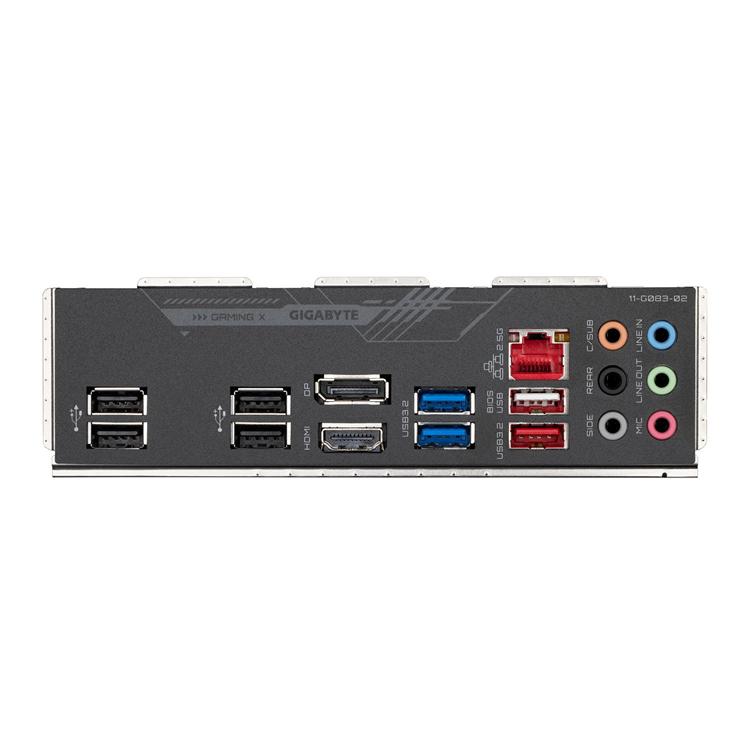

| Back Panel Connectors | 1x USB 3.2 Gen 2 Type-A Port(Red) |
| 2x USB 3.2 Gen 1 Ports | |
| 5x USB 2.0/ 1.1 Ports | |
| 1x DisplayPort | |
| 1x HDMI 2.0 Port | |
| 1x RJ-45 Port | |
| 6x Audio Jacks | |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage Detection |
| Temperature Detection | |
| Fan Speed Detection | |
| Water Cooling Flow Rate Detection | |
| Fan Fail Warning | |
| Fan Speed Control | |
| BIOS | 1x 256 Mbit flash |
| Use Of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Features | Support for APP Center (Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications) |
| @BIOS | |
| EasyTune | |
| Fast Boot | |
| Game Boost | |
| ON/OFF Charge | |
| RGB Fusion | |
| Smart Backup | |
| System Information Viewer | |
| Support for Q-Flash Plus | |
| Support for Q-Flash | |
| Support for Xpress Install | |
| Operating System | Support For Windows 11 64-bit |
| Support For Windows 10 64-bit | |
| Form Factor | ATX Form Factor |
| 305 x 244mm (L x W) | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
