Description
-
- Supports 12th Gen Intel Core Series Processors
-
- Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs
-
- 8+1+1 Hybrid Digital VRM Design with DrMOS*
-
- DDR5 XTREME MEMORY Design with Shielded Memory Routing
-
- Fully Covered Thermal Design with High Coverage VRM Heatsinks
-
- Fast 2.5 GbE GAMING LAN with Bandwidth Management
-
- Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard
-
- SuperSpeed USB 3.2 Gen 2 Type-C® delivers up to 10Gb/s transfer speeds
-
- Pre-installed IO Shield for easy and quick installation
-
- High Quality Audio Capacitors and Audio Noise Guard
-
- RGB FUSION 2.0 supports Addressable LED & RGB LED Strips
-
- Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
-
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
UNPARALLELED PERFORMANCE
With technology moving so fast, GIGABYTE still keep up with the latest trends and provide our customers with advanced features and latest technology. GIAGBYTE B660 Series motherboards come with upgraded power solution, latest storage standards and outstanding connectivity to enable optimize performance for gaming.
XTREME MEMORY
GIGABYTE B660 Motherboards feature the latest DDR5 architecture and XMP 3.0 capability. The new DDR5 memory technology brings 50% more bandwidth to the platform and increases the system performance drastically by implementing Unlocked Native DDR5 Voltage, Xtreme Memory Routing and reliable SMD slot. In addition to the hardware upgrades, the user friendly UI provides full functionality to overclock higher with exclusive DDR5 tuning capability.
NEXT GENERATION CONNECTIVITY
GIGABYTE B660 Series Motherboards let you experience ultimate connection flexibility and blazing data-transfer speed with next generation network and storage connectivity.
DEFINITIVE AESTHETICS
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.
| CPU |
-
- LGA1700 socket: Support for 12th Gen Intel Core, Pentium Gold and Celeron Processors
|
| Chipset |
-
- Intel B660 Express Chipset
|
| Memory |
-
- Support for DDR5 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules
-
- 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
-
- Dual channel memory architecture
-
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
-
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
-
- Support for Extreme Memory Profile (XMP) memory modules
|
| Onboard Graphics |
Integrated Graphics Processor-Intel HD Graphics support
-
- 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
-
- 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
* Support native HDMI 2.1 TMDS compatible ports.
|
| Audio |
Realtek Audio CODEC
|
| LAN |
-
- Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
|
| Wireless Communication Module |
|
| Expansion Slots |
1 x PCI Express x16 slot, running at x16 (PCIEX16)
-
- For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
-
- The PCIEX16 slot conforms to PCI Express 4.0 standard.
2 x PCI Express x16 slots, running at x1 (PCIEX1_1, PCIEX1_2)
-
- All of the PCI Express slots conform to PCI Express 3.0 standard.
|
| Multi-Graphics Technology |
|
| Storage Interface |
CPU:
-
- 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
-
- 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
-
- 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2 SSD support) (M2M_SB)
-
- 4 x SATA 6Gb/s connectors
-
- Support for RAID 0, RAID 1, RAID 5, and RAID 10
-
- Intel Optane Memory Ready
* System acceleration with Intel Optane Memory can only be enabled on the M.2 connector supported by the Chipset.
|
|
|
| Internal I/O Connectors |
-
- 1 x 24-pin ATX main power connector
-
- 1 x 8-pin ATX 12V power connector
-
- 1 x water cooling CPU fan header
-
- 1 x system fan/water cooling pump header
-
- 2 x addressable LED strip headers
-
- 2 x RGB LED strip headers
-
- 3 x M.2 Socket 3 connectors
-
- 4 x SATA 6Gb/s connectors
-
- 1 x front panel audio header
-
- 1 x USB Type-C header, with USB 3.2 Gen 2 support
-
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
-
- 1 x Clear CMOS jumper
＊ All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
|

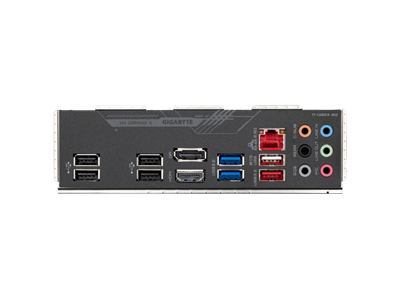

| Back Panel Connectors |
-
- 1 x USB 3.2 Gen 2 Type-A port (red)
|
| I/O Controller |
|
| H/W Monitoring |
-
- Water cooling flow rate detection
-
- Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
|
| BIOS |
-
- Use of licensed AMI UEFI BIOS
-
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
|
| Unique Features |
-
- Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
-
- Support for Xpress Install
|
| Bundled Software |
-
- Norton Internet Security (OEM version)
-
- LAN bandwidth management software
|
| Operating System |
-
- Support for Windows 10/11 64-bit
|
| Form Factor |
-
- ATX Form Factor, 30.5cm x 24.4cm
|
