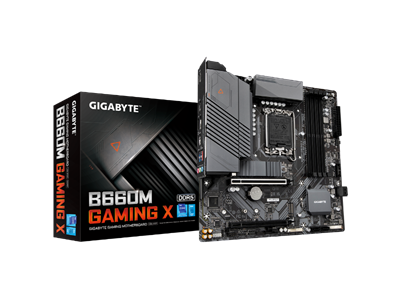

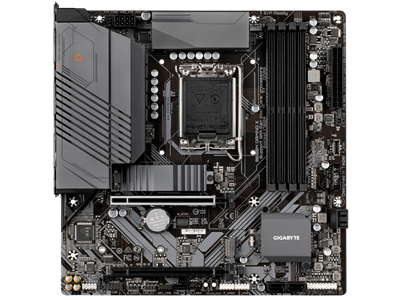

Description
-
- Supports 12th Gen Intel Core Series Processors
-
- Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs
-
- 8+1+1 Hybrid Digital VRM Design with DrMOS*
-
- DDR5 XTREME MEMORY Design with Shielded Memory Routing
-
- Fully Covered Thermal Design with High Coverage VRM Heatsinks
-
- Fast 2.5 GbE GAMING LAN with Bandwidth Management
-
- Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Thermal Guard
-
- USB 3.2 Gen1 Type-C® for Fast and Versatile Connections
-
- Pre-installed IO Shield for easy and quick installation
-
- High Quality Audio Capacitors and Audio Noise Guard
-
- RGB FUSION 2.0 supports Addressable LED & RGB LED Strips
-
- Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
-
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
UNPARALLELED PERFORMANCE
With technology moving so fast, GIGABYTE still keep up with the latest trends and provide our customers with advanced features and latest technology. GIAGBYTE B660 Series motherboards come with upgraded power solution, latest storage standards and outstanding connectivity to enable optimize performance for gaming.
XTREME MEMORY
GIGABYTE B660 Motherboards feature the latest DDR5 architecture and XMP 3.0 capability. The new DDR5 memory technology brings 50% more bandwidth to the platform and increases the system performance drastically by implementing Unlocked Native DDR5 Voltage, Xtreme Memory Routing and reliable SMD slot. In addition to the hardware upgrades, the user friendly UI provides full functionality to overclock higher with exclusive DDR5 tuning capability.
NEXT GENERATION CONNECTIVITY
GIGABYTE B660 Series Motherboards let you experience ultimate connection flexibility and blazing data-transfer speed with next generation network and storage connectivity.
DEFINITIVE AESTHETICS
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.
Technical Specification
| CPU | Intel 12thGeneration CPUs (Alder Lake) |
| Chipset | Intel B660 |
| Memory | 4 x DDR5 DIMM Slots Dual Channel DDR5 Memory Technology Support DDR5-5600 (OC) 128GB Maximum Support Capacity |
| Graphics Outputs* | DisplayPort 1.2 + HDMI 2.1 *Requires Intel CPU with Integrated GPU |
| Audio | 1 x Realtek ALC897 7.1 HD Audio |
| Network Connectivity | 1 x Realtek RTL8125 2.5G LAN 100/1000/2500 Mb/s |
| Expansion Slots** | 1 x PCI Express 4.0 x16 Slot (PCIEX16) (Single at x16 (PCIEX16)) 1 x PCI Express 3.0 x16* Slot (PCIEX4) *Supports x4 mode **Please view PCIe bifurcation table in the manual |
| Multi-GPU | Supports 2-Way AMD CrossFire Technology |
| Storage | 4 x SATA3 6.0 Gb/s Connectors Supports RAID 0 / 1 / 5 / 10 1 x PCIe 4.0 x4 M.2 Socket (2260/2280) 1 x PCIe 4.0 x4 M.2 Socket (2260/2280/22110) |
| Motherboards Connector | 1 x 24-Pin ATX Main Power Connector 1 x 8-Pin ATX 12V Power Connector 1 x CPU Fan Header 3 x System Fan Headers 2 x Addressable LED Strip Headers 2 x RGB LED Strip Headers 2 x M.2 Socket 3 Connectors 4 x SATA 6Gb/s Connectors 1 x Front Panel Header 1 x Front Panel Audio Header 1 x USB Type-C Header 1 x USB 3.2 Gen1 Header 2 x USB 2.0 Headers 1 x S/PDIF Out Header 2 x Thunderbolt Add-In Card Connectors 1 x Trusted Platform Module Header (For The GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 Module Only) 1 x Serial Port Header 1 x Reset Button 1 x Q-Flash Plus Button 1 x Reset Jumper 1 x Clear CMOS Jumper |

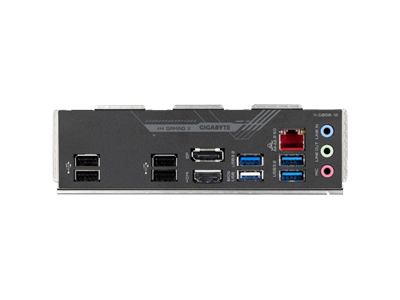

| Rear Panel I/O | 1 x DisplayPort Port 1 x HDMI Port 1 x LAN (RJ-45) Port 3 x USB 3.2 Gen1 Type-A Ports 5 x USB 2.0 Type-A Ports 3 x Audio Jacks |
Unique Features
| Features | GIGABYTE Cooling 4 Fan / Water Pump Headers 6 Temperature Sensors All Hybrid Fan Headers Fan Stop Fully Covered MOSFET Heatsinks Thermal Conductivity Pad M.2 Thermal Guard GIGABYTE Audio GIGABYTE Quality and Protection GIGABYTE RGB Fusion 2.0 |
Warranty and Return Information
| Warranty Period | 3 Years |
| Return Policy | Standard |
