Original price was: R2954.00.R2860.00Current price is: R2860.00. Incl. Vat
(Displayed price above applies to EFT / Bank Transfer payments only.)
KEY FEATURES:
– Form Factor: Micro-ATX
– Chipset: Intel® B760
– Socket: LGA 1700
– CPU Support: 14th / 13th / 12th Gen Intel® Core™, Pentium® Gold, Celeron®
– Memory: 2× DDR5 DIMM, up to 96GB, 7600 MT/s (OC), Dual Channel, Intel® XMP
– Expansion Slots: 1× PCIe 4.0 x16 (EZ-Latch), 1× PCIe 3.0 x16 (x4), 1× PCIe 3.0 x1
– Storage: 2× M.2 PCIe 4.0 x4, 4× SATA 6Gb/s
– USB (Rear): 1× USB-C 3.2 Gen1, 2× USB 3.2 Gen1, 4× USB 2.0
– USB (Internal): 1× USB-C 3.2 Gen1 header, 1× USB 3.2 Gen1 header (2 ports), 2× USB 2.0 headers (4 ports)
– Networking: Intel® Wi-Fi 5, Bluetooth 5.2, Realtek® 2.5GbE LAN
– Audio: Realtek® 8-Channel HD Audio, Audio Noise Guard
– Cooling: Smart Fan 6, Hybrid Fan Headers, Temp Sensors
– Lighting: RGB FUSION, ARGB & RGB headers
– Extra Features: Q-Flash Plus, PCIe EZ-Latch, Ultra Durable™ Design
– Warranty: 3 Years

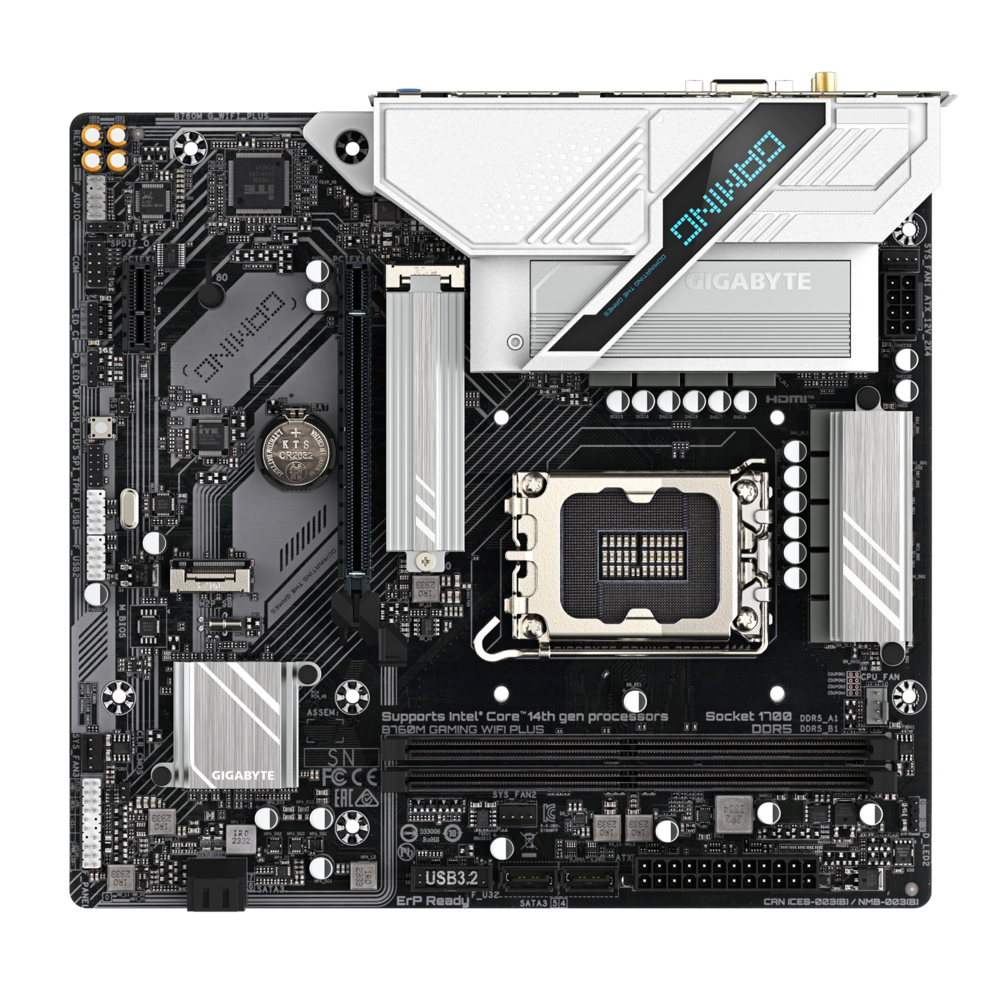

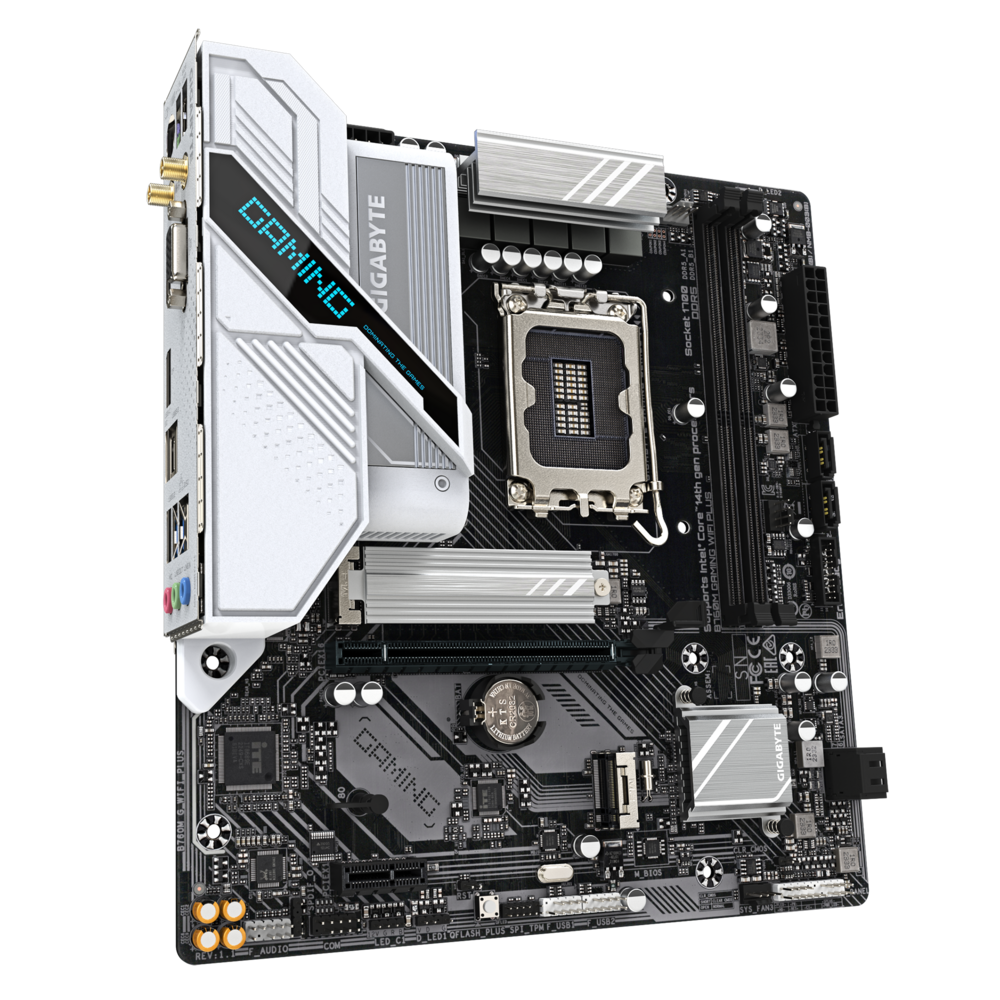

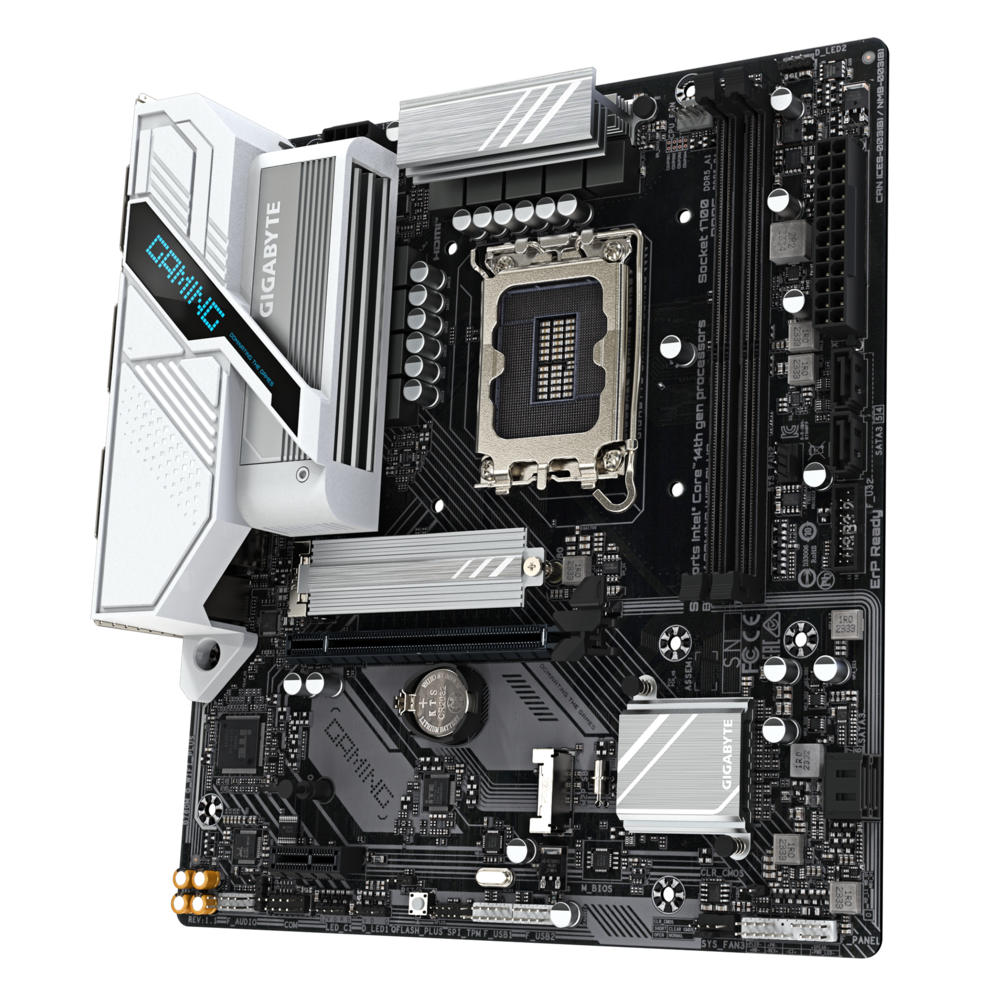

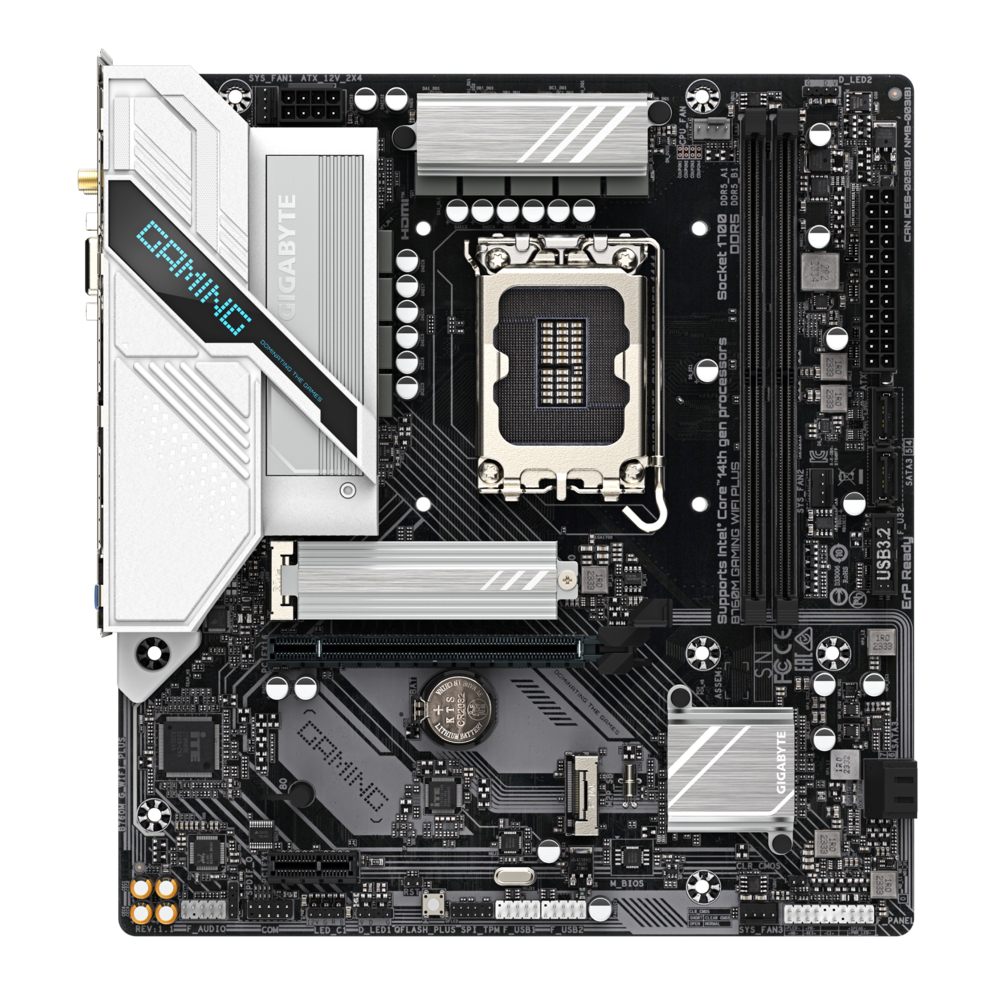

The Gigabyte B760M GAMING WIFI PLUS (rev. 1.1) combines the power and smart features of high-end motherboards with a space-saving micro‑ATX design—perfect for value-conscious builders. Powered by the Intel® B760 chipset and supporting 12th to 14th Gen Intel® Core™ CPUs on LGA 1700, it delivers DDR5 memory support, fast storage options, and dual-network connectivity, offering premium gaming and productivity performance at excellent value.
Robust Power & Memory Setup
Equipped with a Hybrid 6+2+1 digital VRM design and dual-channel DDR5 slots with XMP support—optimized for stability and overclocking.
High-Speed Storage Options
Features 2× PCIe 4.0 x4 M.2 slots and a fast PCIe 4.0 x16 slot with EZ‑Latch for effortless GPU and SSD installation.
Superior Connectivity
Built-in Wi‑Fi 802.11ac (Wi‑Fi 5), 2.5 GbE LAN, front USB‑C (5 Gb/s), HDMI, DisplayPort, and classic D‑Sub ensure your setup stays modern and flexible.
Efficient Cooling & Easy Installation
Smart Fan 6 with multiple temperature sensors and hybrid fan headers delivers quiet cooling, while features like Q‑Flash Plus and PCIe EZ‑Latch make setup a breeze.
Gaming-Grade Audio & Durability
Realtek 8-channel HD audio with Audio Noise Guard and high-end capacitors ensure immersive sound and reliable performance.
| Category | Details |
|---|---|
| Brand / Model | Gigabyte B760M GAMING WIFI PLUS (rev. 1.1) |
| CPU Support | Supports 14th / 13th / 12th Gen Intel® Core™, Pentium® Gold & Celeron® processors |
| Socket | LGA 1700 |
| Chipset | Intel® B760 |
| Form Factor | Micro-ATX |
| Power Design | 6+2+1 Phases Digital VRM |
| Memory Support | 2× DDR5 DIMM slots, dual-channel, up to 96 GB, up to 7600 MT/s (OC), Intel® XMP supported |
| Graphics Support | Integrated graphics via CPU: 1× HDMI 2.1, 1× DisplayPort 1.2, 1× D-Sub |
| Expansion Slots | 1× PCIe 4.0 x16 (EZ-Latch), 1× PCIe 3.0 x16 (x4 mode), 1× PCIe 3.0 x1 |
| Storage | 2× M.2 PCIe 4.0 x4, 4× SATA 6 Gb/s |
| Networking | Intel® Wi-Fi 5 (802.11ac) + Bluetooth 5.2, Realtek® 2.5 GbE LAN |

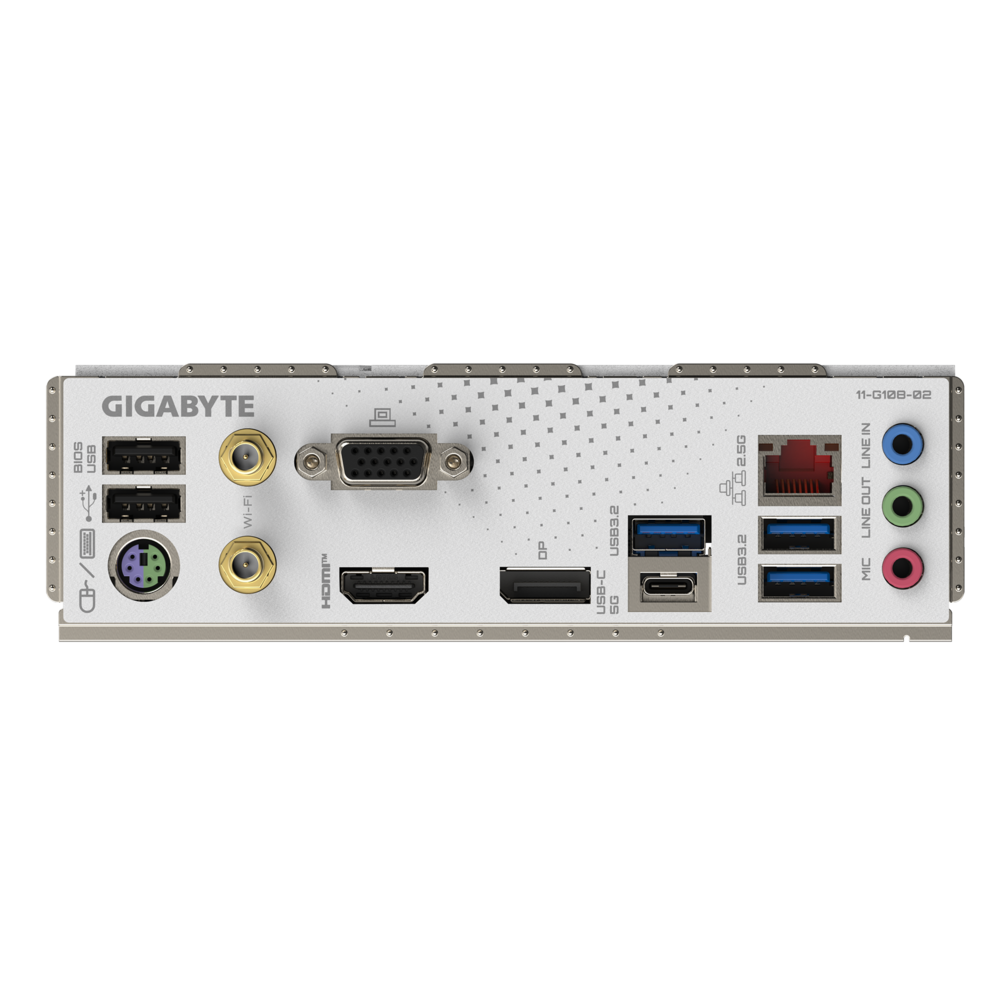

| USB (Rear I/O) | 1× USB-C 3.2 Gen1, 2× USB 3.2 Gen1 Type-A, 4× USB 2.0 |
| USB (Internal) | 1× USB-C 3.2 Gen1 header, 1× USB 3.2 Gen1 header (2 ports), 2× USB 2.0 headers (4 ports) |
| Audio | Realtek® Audio Codec, 8-Channel HD Audio, Audio Noise Guard |
| Cooling | Smart Fan 6, multiple temperature sensors, hybrid fan headers |
| RGB / Lighting | RGB FUSION, addressable LED header, RGB LED header |
| Special Features | Q-Flash Plus, PCIe EZ-Latch, Ultra Durable™ components |
| OS Support | Windows 11 64-bit, Windows 10 64-bit |
| Included Accessories | 2× SATA cables, Wi-Fi antenna, I/O shield, quick installation guide |
| Warranty | 3 Years |
| Motherboard Brand | |
|---|---|
| Motherboard Category | |
| Motherboard Chipset | |
| Motherboard Form Factor | |
| Motherboard Ram Support | |
| Motherboard Socket Type |
