Original price was: R3264.00.R3178.00Current price is: R3178.00. Incl. Vat
(Displayed price above applies to EFT / Bank Transfer payments only.)
KEY FEATURES:
– Form Factor: Micro-ATX
– Chipset: Intel® B760 Express
– Socket: LGA 1700
– CPU Support: 12th, 13th & 14th Gen Intel® Core™, Pentium® Gold, Celeron®
– Memory: 4× DDR5, up to 192GB, 7600MHz (OC)
– Graphics: HDMI 2.1, DisplayPort 1.2 (CPU dependent)
– Expansion Slots: 1× PCIe 4.0 x16, 1× PCIe 3.0 x16 (x4), 1× PCIe 3.0 x1
– Storage: 2× M.2 PCIe 4.0 x4, 4× SATA 6Gb/s
– Networking: Intel® 2.5GbE LAN, Intel® Wi-Fi 6E, Bluetooth® 5.3
– USB Rear: 1× USB-C 3.2 Gen 2, 2× USB 3.2 Gen 2 Type-A, 4× USB 2.0
– USB Internal: USB-C 3.2 Gen 2, USB 3.2 Gen 1, USB 2.0 headers
– Audio: Realtek® HD Audio, Audio Noise Guard
– Cooling: Smart Fan 6, Hybrid Fan Headers, Fan Stop
– RGB: RGB Fusion, Addressable & RGB headers
– Extra: Q-Flash Plus, PCIe EZ-Latch
– Warranty: 3 Years

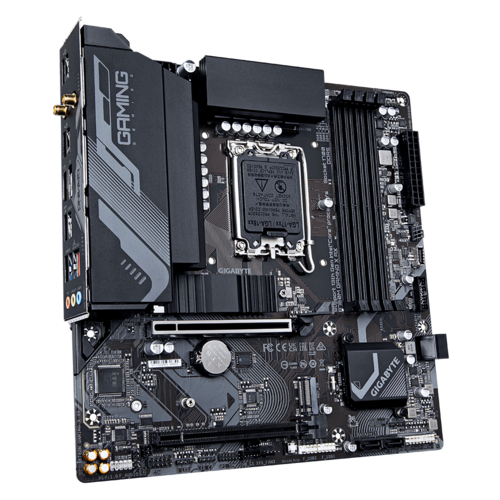

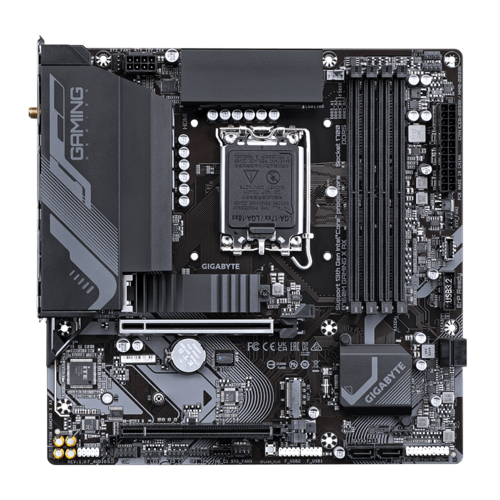

The Gigabyte B760M GAMING X AX (rev. 1.x) packs powerful gaming-ready features into a sleek Micro‑ATX form factor. With support for Intel’s 12th to 14th Gen Core processors, DDR5 overclocking, PCIe 4.0 storage, and fast networking, it’s a smart choice for gamers and creators who want performance without the bulk.
Strong Power & Memory Overclocking
Built around an 8+1+1 phase hybrid digital VRM design for steady CPU performance and overclocking, paired with dual-channel DDR5 with XMP support to unlock fast memory speeds with ease.
Next-Gen Storage & Design
Equipped with 2× PCIe 4.0 x4 M.2 slots with Thermal Guards, and a quick-release PCIe EZ‑Latch slot for easy upgrades.
High-Speed Connectivity
Features Wi‑Fi 6E, 2.5 GbE LAN, front USB‑C (10 Gb/s), HDMI, DisplayPort, and Realtek HD audio with an audio noise guard—for seamless modern connectivity.
Efficient Cooling & Fan Control
Smart Fan 6 delivers optimized cooling using multiple temperature sensors, hybrid fan headers, and a fan-stop function for quiet performance.
DIY-Friendly Upgrades
Comes with handy tools like Q‑Flash Plus for BIOS updates without installing CPU/GPU, and the EZ‑Latch PCIe slot for hassle-free builds.
| Category | Details |
|---|---|
| Brand / Model | Gigabyte B760M GAMING X AX (rev. 1.x) |
| CPU Support | Supports 12th, 13th & 14th Gen Intel® Core™, Pentium® Gold, and Celeron® processors |
| Socket | LGA 1700 |
| Chipset | Intel® B760 Express |
| Form Factor | Micro-ATX |
| Power Design | 8+1+1 Phases Hybrid Digital VRM |
| Memory Support | 4× DDR5 DIMM slots, up to 192 GB, dual-channel, non-ECC unbuffered, DDR5 7600(OC) |
| Graphics Support | Integrated Graphics via CPU – 1× HDMI 2.1, 1× DisplayPort 1.2 |
| Expansion Slots | 1× PCIe 4.0 x16 (EZ-Latch), 1× PCIe 3.0 x16 (x4 mode), 1× PCIe 3.0 x1 |
| Storage | 2× M.2 PCIe 4.0 x4 (NVMe), 4× SATA 6Gb/s |
| Networking | Intel® 2.5GbE LAN, Intel® Wi-Fi 6E, Bluetooth® 5.3 |

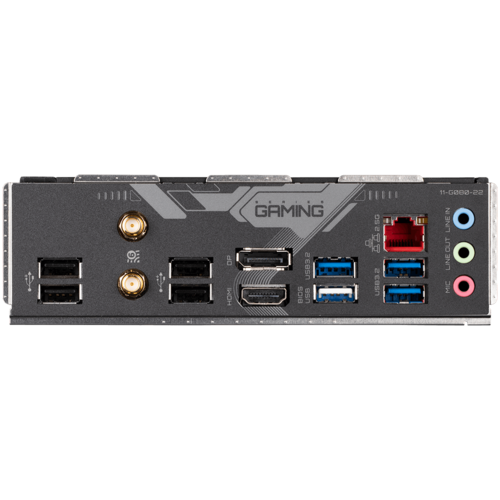

| USB (Rear) | 1× USB-C 3.2 Gen 2 (10 Gb/s), 2× USB 3.2 Gen 2 Type-A, 4× USB 2.0 |
| USB (Internal) | USB-C 3.2 Gen 2 header, USB 3.2 Gen 1 header, USB 2.0 headers |
| Audio | Realtek® Audio CODEC, High-Definition Audio, Audio Noise Guard |
| Cooling Features | Smart Fan 6, Hybrid Fan Headers, Fan Stop |
| RGB / Lighting | RGB FUSION, Addressable & RGB LED headers |
| Special Features | Q-Flash Plus, PCIe EZ-Latch, Ultra Durable design |
| OS Support | Windows 11, Windows 10 64-bit |
| Accessories | 2× SATA cables, antenna, M.2 screws, quick installation guide |
| Warranty | 3 Years |
| Weight | 2 kg |
|---|---|
| Motherboard Brand | |
| Motherboard Category | |
| Motherboard Chipset | |
| Motherboard Form Factor | |
| Motherboard Ram Support | |
| Motherboard Socket Type |
