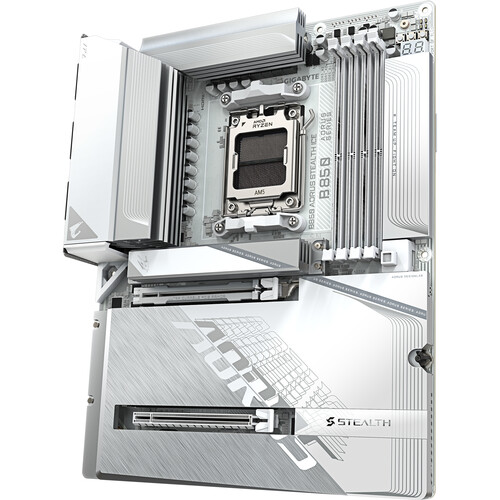

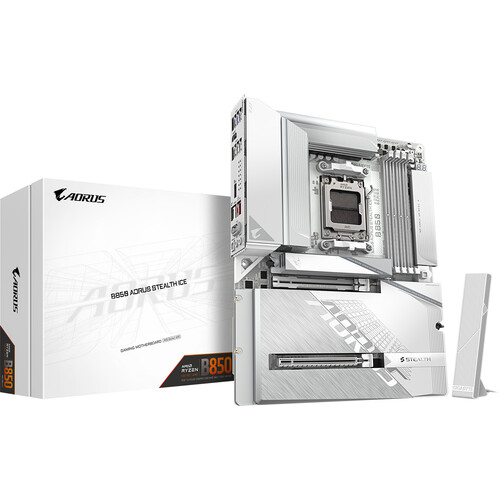

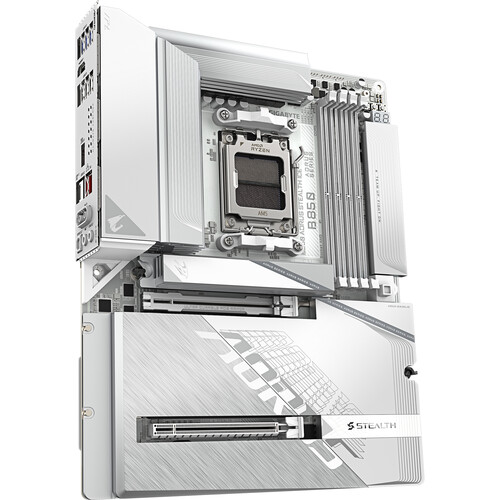

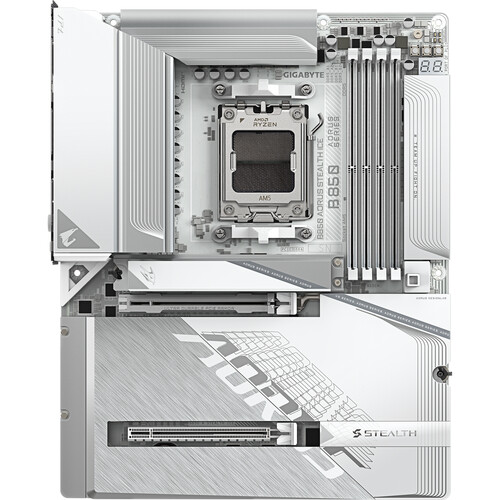

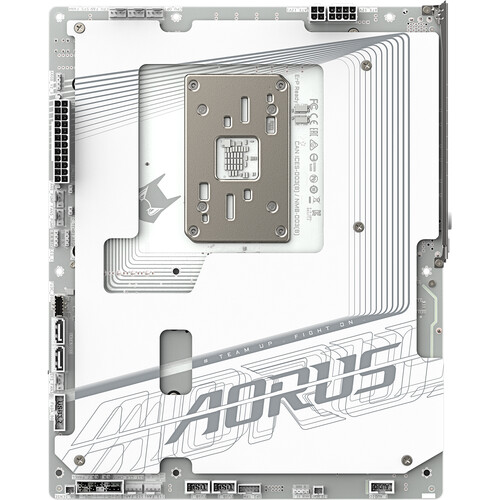

B850 A STEALTH ICE
The Gigabyte B850 AORUS STEALTH ICE redefines clean, high-performance PC building with its reverse‑connector all-white design tailored for Project STEALTH builds. Featuring support for AMD Ryzen 9000 / 8000 / 7000 series, ultra‑fast DDR5 up to 8200 MHz, solid 14+2+2 digital VRM, PCIe 5.0, 4× M.2 slots, Wi‑Fi 7, and 5 GbE LAN, it delivers next‑gen power and DIY innovation for enthusiast users
Key Features
-
Reverse‑connector all‑white Project STEALTH ICE design
-
14+2+2 phase SPS VRM with 80A DrMOS
-
AMD Ryzen 9000 / 8000 / 7000 series support
-
DDR5 support up to 8200 MT/s with D5 Bionic Corsa AI overclocking
-
PCIe 5.0 x16 plus 4× M.2 (2× Gen5, 2× Gen4) storage support
-
M.2 EZ‑Flex baseplate reducing SSD temps by up to 12°C
-
EZ‑Latch and EZ‑DIY features (PCIe, M.2, Wi‑Fi plug)
-
X3D Turbo Mode for single‑click gaming performance boost
-
Wi‑Fi 7 with directional ultra‑gain antenna and 5 GbE LAN
-
USB‑C Gen2 10 Gb/s rear, Smart Fan 6 cooling system
-
Q‑Flash Plus BIOS updates, EZ‑Debug Zone, Multi‑Key support
-
RGB Fusion headers, premium thermal armor and heatsinks
Full Specifications Table
| Specification | Details |
|---|---|
| Model | Gigabyte B850 AORUS STEALTH ICE (AM5 / B850) |
| Form Factor | ATX (305 × 244 mm) |
| CPU Support | AMD Ryzen 9000 / 8000 / 7000 Series processors |
| VRM Design | 14+2+2 digital SPS VRM with 80A DrMOS, 6-layer 2× copper PCB |
| Memory | 4× DDR5 DIMMs, up to 256 GB, up to 8200 MT/s OC per D5 Bionic Corsa |
| PCIe Slots | 1× PCIe 5.0 x16, supports Gen5 graphics |
| M.2 Slots | 2× PCIe 5.0 M.2, 2× PCIe 4.0, with M.2 EZ‑Flex cooling feature |
| SATA Ports | 2× SATA 6 Gb/s |
| LAN Connectivity | 5 GbE RJ-45 port |
| Wireless / Bluetooth | Wi‑Fi 7 (802.11be) with directional ultra high‑gain antenna; Bluetooth support |

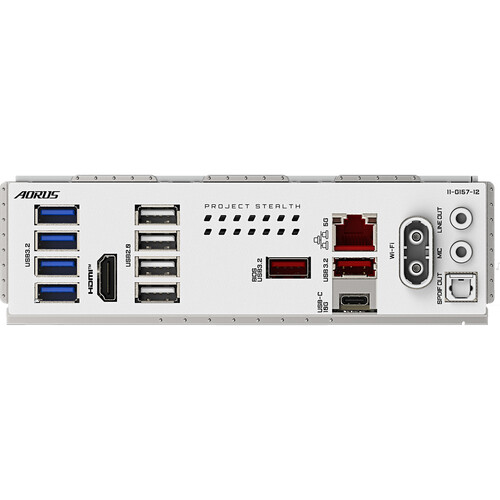

| USB Ports (Rear) | USB‑C Gen2 10 Gb/s, 2× USB 3.2 Gen2, 4× USB 3.2 Gen1, 4× USB 2.0 |
| Display Outputs | HDMI output |
| Audio | 7.1-channel HD Audio with high-end audio capacitors |
| Cooling | Massive VRM Thermal Armor, M.2 Thermal Guard, Smart Fan 6 hybrid headers |
| BIOS Tools | X3D Turbo, Driver BIOS (Wi‑Fi), Q‑Flash Plus, Multi-Key, EZ‑Debug Zone LEDs |
| DIY Features | Wi‑Fi EZ‑Plug, PCIe EZ‑Latch Plus, M.2 EZ‑Latch, EZ‑Debug Zone |
| Warranty | 3 Years Warranty |
