Original price was: R5592.00.R4995.00Current price is: R4995.00. Incl. Vat
(Displayed price above applies to EFT / Bank Transfer payments only.)
KEY FEATURES:
– Mini-ITX Form Factor
– Intel B860 Chipset, Socket LGA 1851
– Supports Intel Core Ultra Series 2 Processors
– 2x DDR5 DIMM Slots, Supports Up To 128GB (2x64GB)
– Supports Up to DDR5-9066 (OC)
– 1x PCIe 5.0 x16 Slot (x16 Physical)
– 1x M.2 2280 PCIe 5.0 x4 NVMe SSD Slot
– 1x M.2 2280 PCIe 4.0 x4 NVMe SSD Slot
– 2x SATA 3.0 Ports
– Supports Front-Panel USB 10Gbps Type-C Port
– 1x Thunderbolt 4 USB Type-C Port with DisplayPort
– 3x USB 10Gbps Type-A Ports
– 2x USB 5Gbps Type-A Ports
– 1x HDMI 2.1 (TMDS), 2x DisplayPort 2.1 Ports
– 2x 3.5mm Audio Jacks
– 1x Optical S/PDIF Audio Port
– 2x Antenna Connectors
– Realtek 2.5 Gigabit Ethernet RJ-45 LAN
– WiFi 7 Tri-Band Adapter, Bluetooth 5.4
– Realtek High Definition Audio CODEC
– 8+1+2 Twin Hybrid VRM Solution
– Gigabyte PCIe EZ-Latch Plus
– Supports Windows 11 64-Bit
– 3 Year Warranty

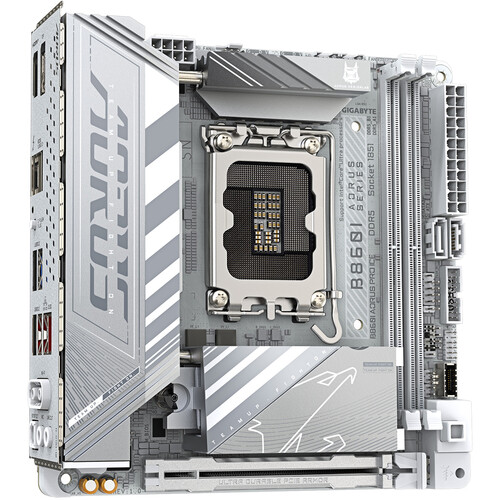

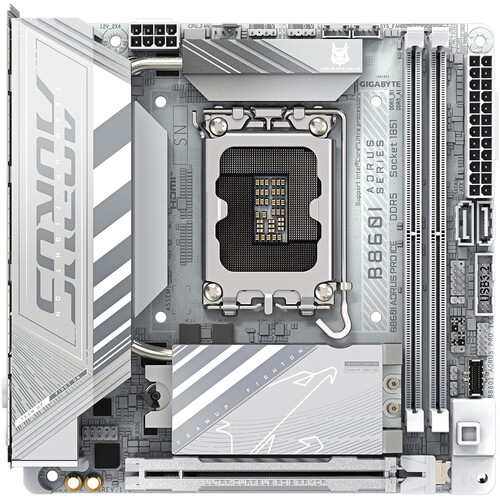

The Gigabyte B860I AORUS PRO ICE brings enthusiast-level power to compact builds. Built on the Intel® B860 chipset with LGA 1851 support for Intel® Core Ultra Series 2 CPUs, this Mini‑ITX board combines elite-grade features like PCIe 5.0, Wi‑Fi 7, Thunderbolt 4, and AI-enhanced overclocking into a sleek, space-saving layout—ideal for high-performance small-form‑factor systems.
Next‑gen Power & Memory Tuning
Delivers dynamic power with an 8+1+2 digital VRM, 10‑layer 2× copper PCB, and D5 Bionic Corsa tech for optimized DDR5 performance.
Compact Expansion & Connectivity
Offers a PCIe 5.0 x16 slot, dual M.2 storage (PCIe 5.0 & 4.0), 2.5 GbE LAN, Wi‑Fi 7 capabilities, and Thunderbolt 4—including a reinforced UD Slot for GPUs.
Efficient Cooling & Reliability
Features VRM Thermal Armor, M.2 Thermal Guard, and Smart Fan 6 support to sustain high performance without throttling.
Streamlined Build Features
Enhances convenience with EZ‑Latch Plus and EZ‑Latch Click for tool-free hardware installation, Wi-Fi EZ‑Plug, and a user‑friendly BIOS layout.
Ultra Durable & Future Ready
Crafted for reliability and longevity with premium components—perfect for compact PCs that deliver uncompromised power.
The B860I AORUS PRO ICE carves a new benchmark for Mini-ITX builds: elite-tier specs—such as PCIe 5.0, Thunderbolt 4, and Wi-Fi 7—delivered in a space-constrained form factor. Ideal for gamers, creators, and tech enthusiasts looking to build powerful rigs without compromise on expandability or future-proofing.
SPECIFICATIONS |
|
| Gigabyte Brand | Gigabyte |
| Series | AORUS PRO Series |
| Model | B860I AORUS PRO ICE |
| CPU Support | Intel Socket LGA 1851 for Core Ultra Series Processors (Series 2) |
| Chipset | Intel B860 Express |
| Memory Support | |
| Intel Core Ultra Series Processors (Series 2) | Support for DDR5 9200(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules |
| 2x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| Video | |
| HDMI | 1x HDMI 2.1 TMDS port, supporting a maximum resolution of 4096×2160 @ 60 Hz, Support for HDCP 2.3, and HDR |
| DisplayPort | 1x DisplayPort 2.1 ports, supporting a maximum resolution of 8K @ 30Hz, Support for HDCP 2.3, and HDR |
| Integrated graphics required. Actual support may vary by CPU. | |
| Expansion Slots | |
| CPU Direct | 1x PCIe 5.0 x16 Physical, x16 Electrical slot |
| Storage | |
| CPU Direct | 1x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU) |
| Intel B860 Chipset | 1x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2Q_SB) |
| 2x SATA 6Gb/s ports | |
| Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. | |
| Networking | |
| LAN | Realtek 2.5 Gigabit LAN 10/100/1000/2500Mbps |
| WiFi | WiFi 7 2×2 MIMO Tri-Band Adapter |
| Bluetooth | Bluetooth 5.4 |
| Audio | |
| Codec | Realtek 7.1 Surround Sound CODEC with Optical Audio Out |
| Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking | |

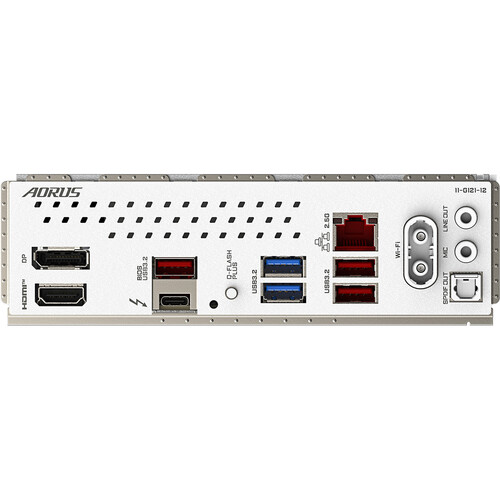

| Connectivity | |
| Ports | 1x Thunderbolt 4 USB Type-C Port with DisplayPort |
| 3x USB 10Gbps Type-A Ports | |
| 2x USB 5Gbps Type-A Ports | |
| 1x HDMI 2.1 (TMDS) Port | |
| 1x DisplayPort 2.1 Port | |
| 2x 3.5mm Audio Jacks | |
| 1x Optical S/PDIF Audio Port | |
| 2x Antenna Connectors | |
| 1x Realtek 2.5 Gigabit Ethernet RJ-45 LAN | |
| General | |
| Internal Connectors | 1x 24-pin ATX main power connector |
| 1x 8-pin ATX 12V power connector | |
| 1x CPU fan header | |
| 1x CPU fan/water cooling pump header | |
| 1x system fan header | |
| 2x addressable RGB Gen2 LED strip headers | |
| 2x M.2 Socket 3 connectors | |
| 2x SATA 6Gb/s connectors | |
| 1x front panel header | |
| 1x front panel audio header | |
| 1x speaker header | |
| 1x USB Type-C header, with USB 3.2 Gen 2 support | |
| 1x USB 3.2 Gen 1 header | |
| 1x USB 2.0/1.1 header | |
| 1x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) | |
| 1x reset jumper | |
| 1x Clear CMOS jumper | |
| Buttons | 1x Q-Flash Plus Button |
| LED Displays | Gigabyte EZ-Debug Diagnostic LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
| Remote Management | WOL by PME, PXE |
| Form Factor | Mini-ITX Form Factor, 170 x 170 mm (H x W) |
| Operating System Support | Windows 11 64-bit |
| Box Contents | User’s Manual |
| Quick Installation Guide | |
| One antenna | |
| Two SATA cables | |
| Two fan power extension cables | |
| One M.2 thermal pad | |
| M.2 screw | |
| Computer case screw | |
| B860I AORUS PRO ICE Intel B860 LGA 1851 Arrow Lake Mini-ITX Desktop Motherboard | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
| Motherboard Brand | |
|---|---|
| Motherboard Category | |
| Motherboard Chipset | |
| Motherboard Form Factor | |
| Motherboard Ram Support | |
| Motherboard Socket Type |
